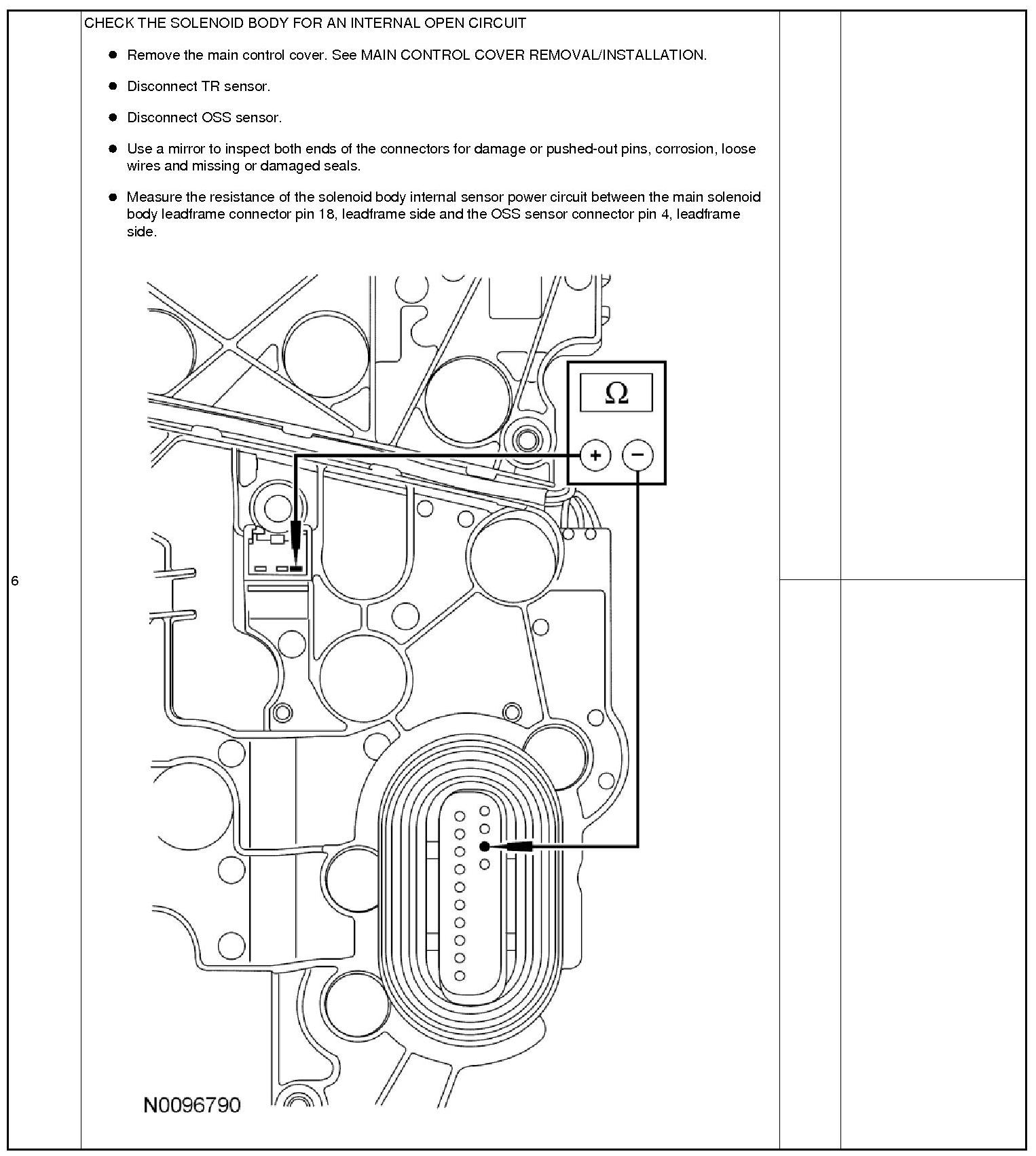

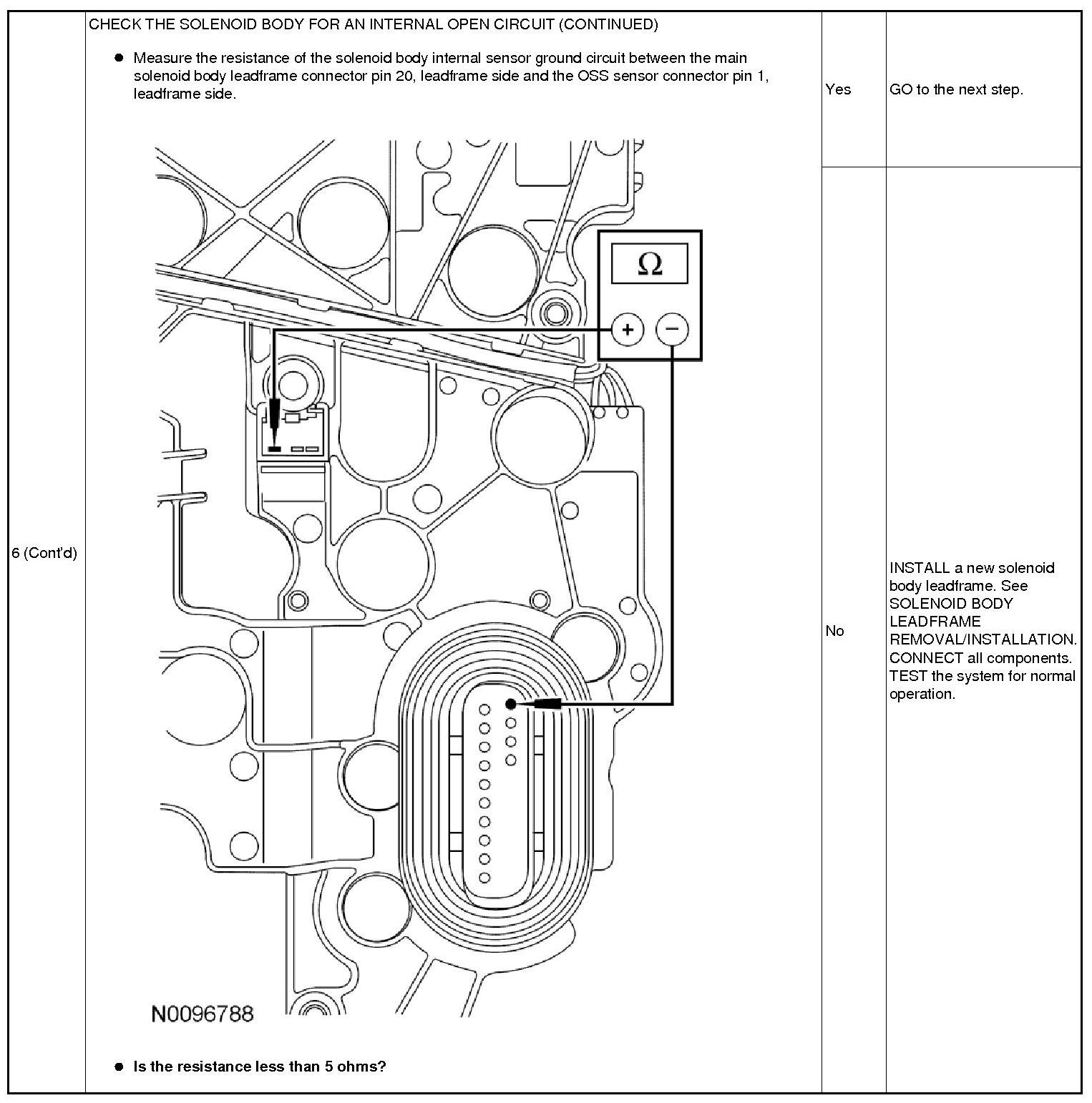

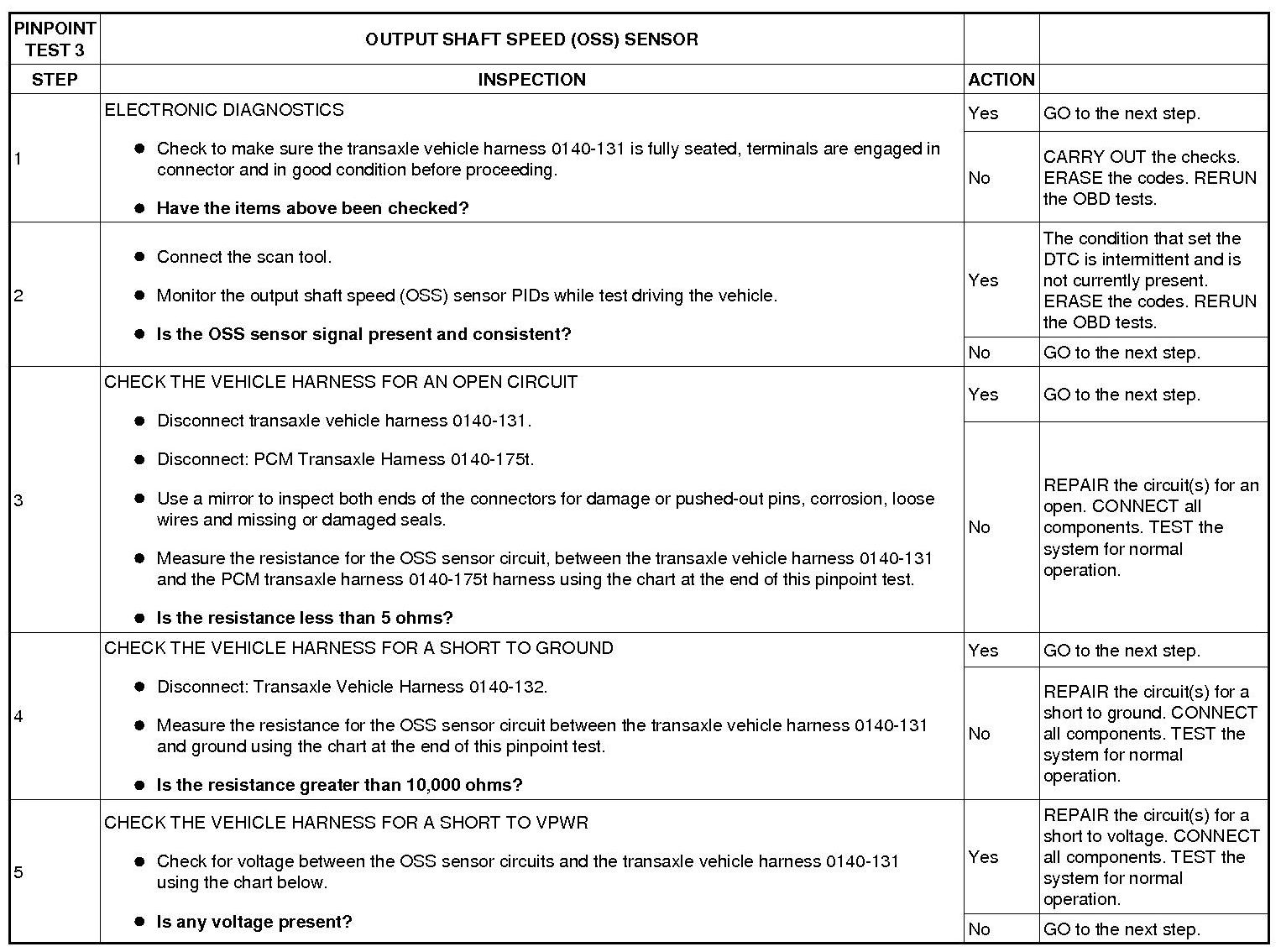

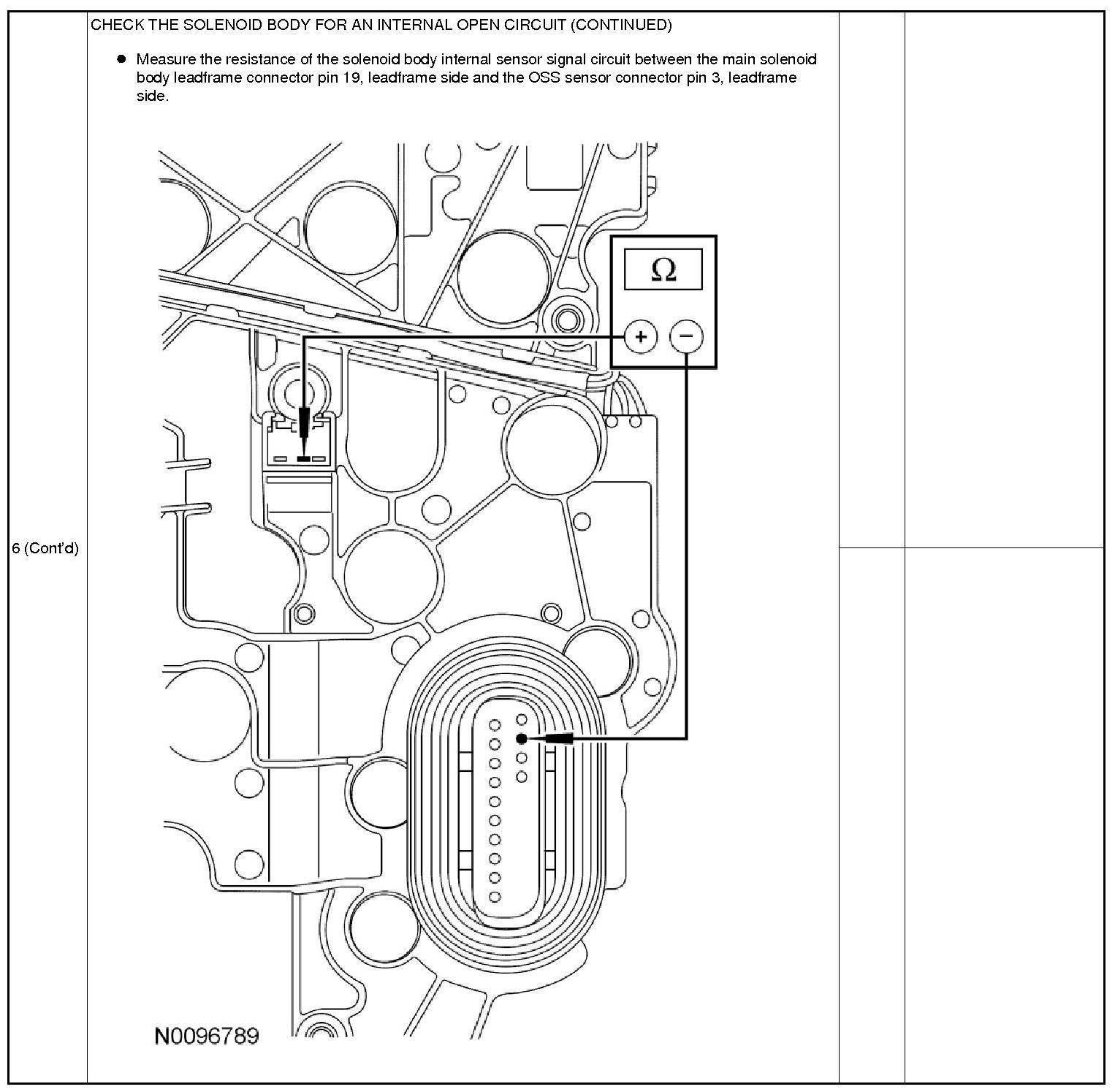

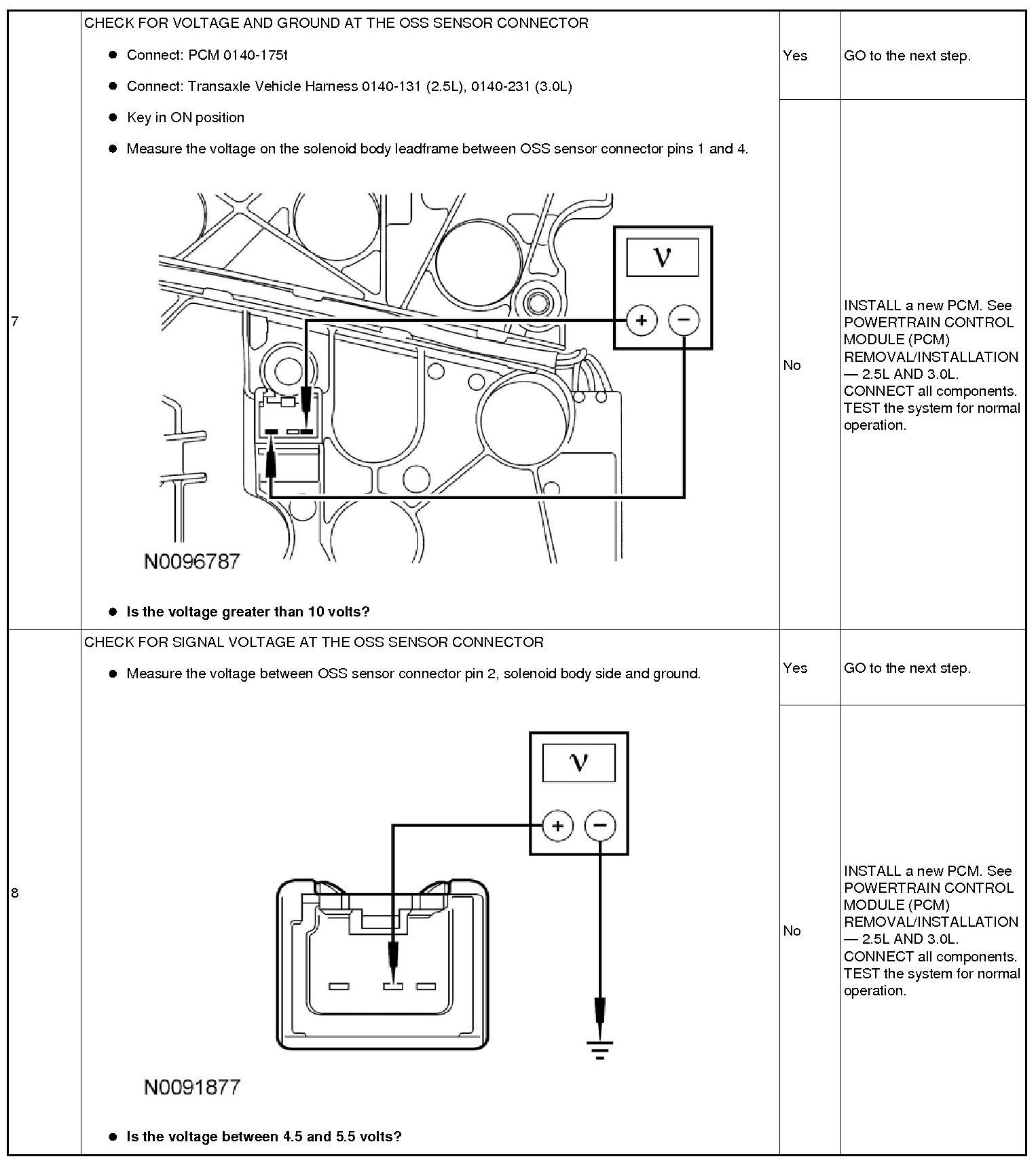

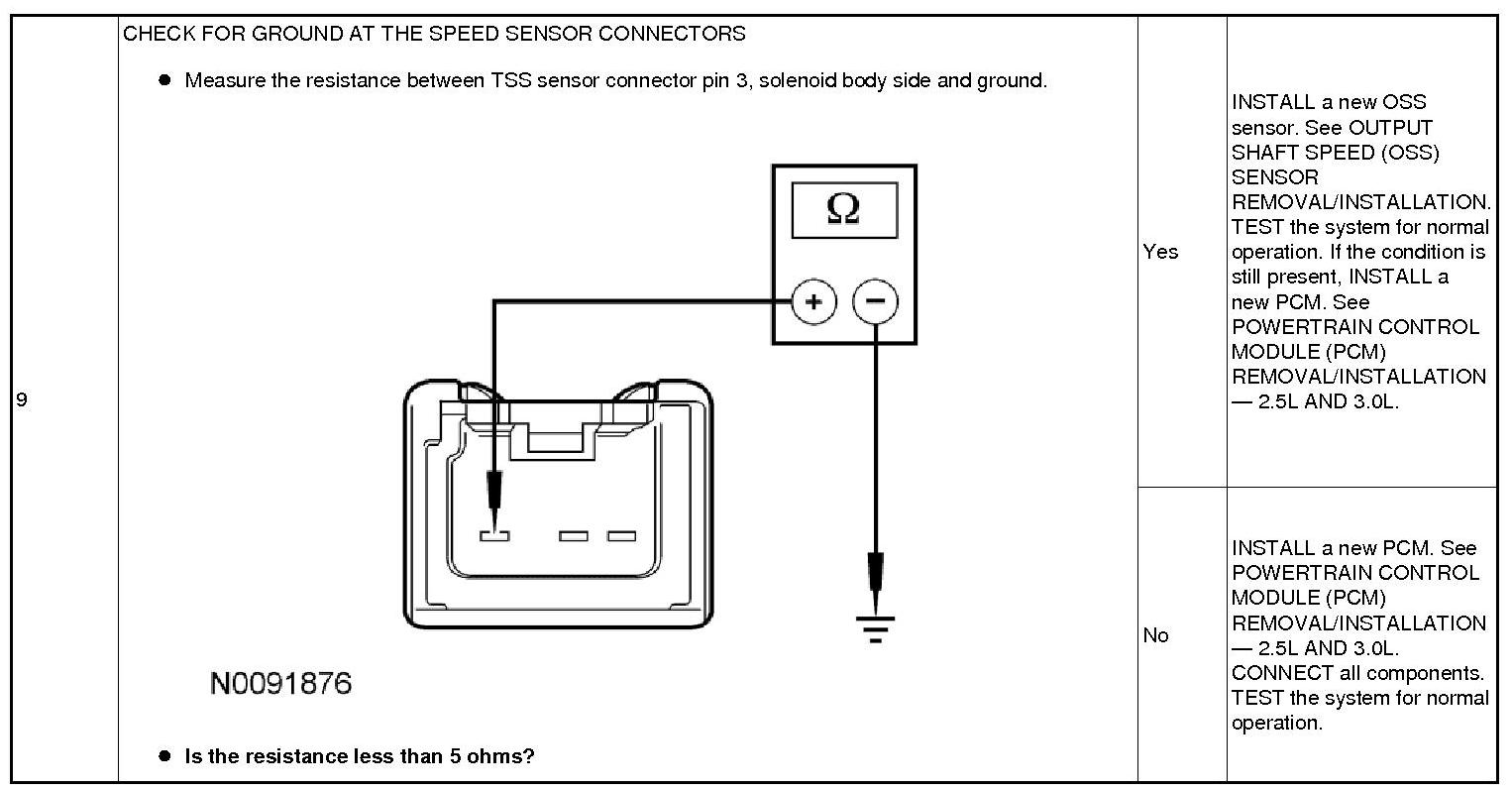

Pinpoint Test 3: Output Shaft Speed (OSS) Sensor
PINPOINT TEST 3: OUTPUT SHAFT SPEED (OSS) SENSORNOTE:Refer to the transaxle connector illustrations and solenoid body leadframe internal wiring diagram preceding these pinpoint tests. See
[1][2]Automatic Transmission/Transaxle.
NOTE:OSS codes may be a result of a bad common power or ground shared between the TR sensor, OSS sensor, and TSS sensor.
