Transaxle Support Insulator - Lower, Rear Removal/Installation

TRANSAXLE SUPPORT INSULATOR - LOWER, REAR, 2.5L REMOVAL/INSTALLATION









1. With the vehicle in NEUTRAL, position it on a hoist. See Lifting.

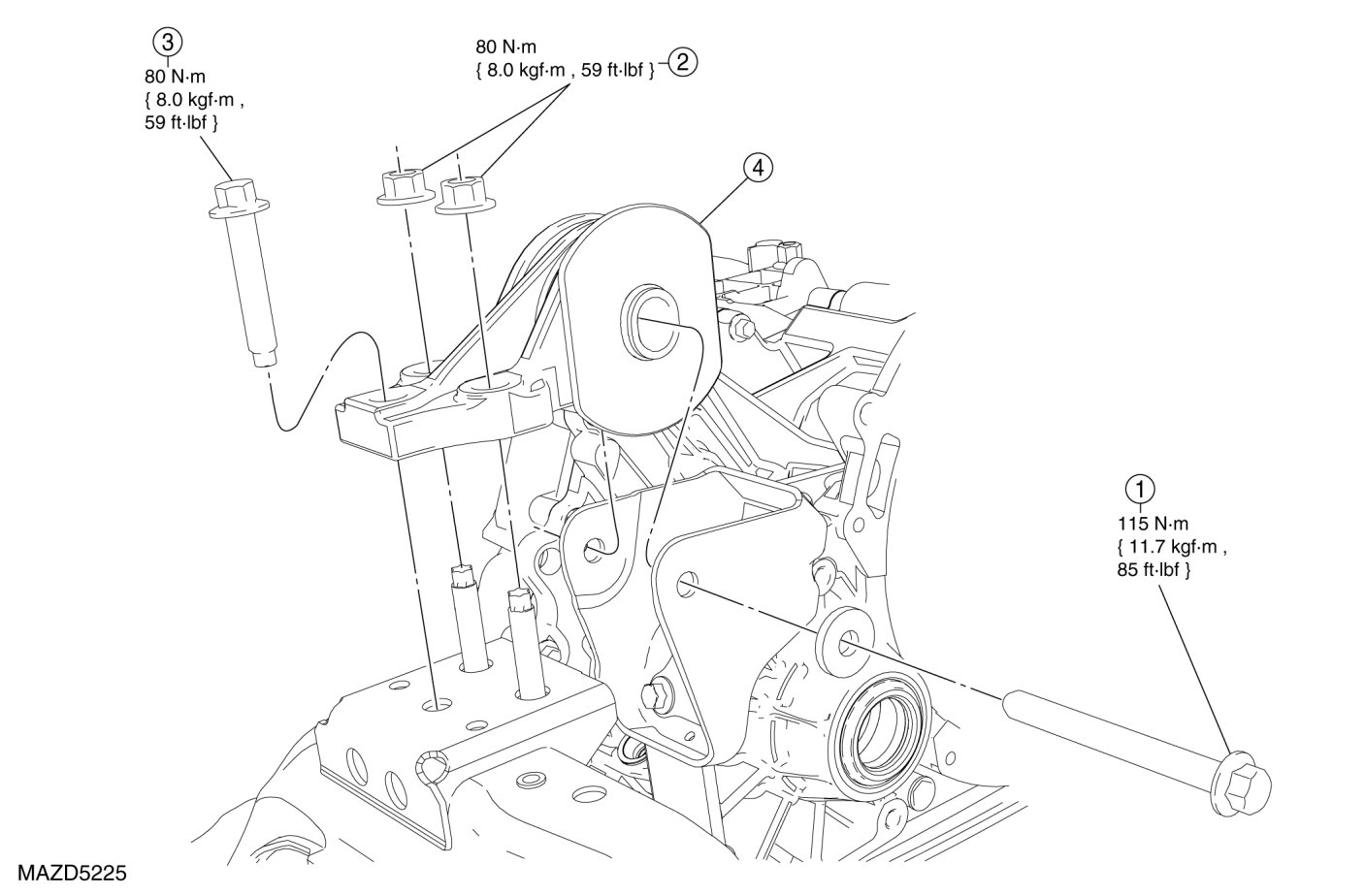

2. Remove the lower support insulator.
a. Remove the lower support insulator through bolt.
i. To install, tighten to 115 Nm {11.7 kgf-m, 85 ft-lbf}.

b. Remove the lower support insulator bolt and 2 nuts.
i. To install, tighten to 80 Nm {8.1 kgf-m, 59 ft-lbf}.

c. Remove the lower support insulator.

3. To install, reverse the removal procedure.
