Troubleshooting

CLUTCH PRESSURE PLATE CHECK

1. Check the clutch pressure plate surface for scoring, cracks or discoloration. Minor scratches or discoloration should be removed with a fine emery cloth.

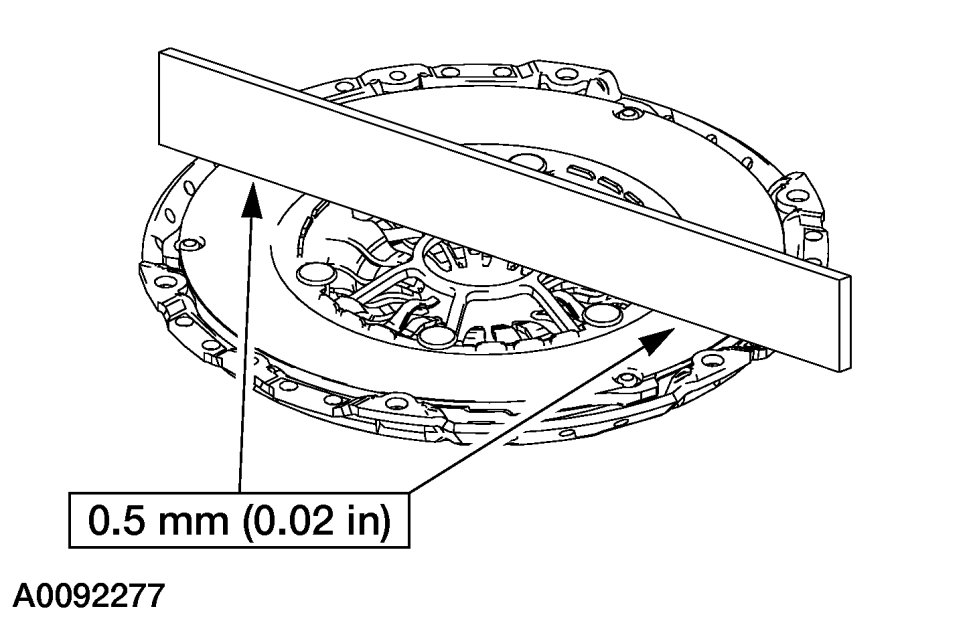

2. Measure the flatness of the clutch pressure plate surface with a straightedge and a feeler gauge.

3. Check the diaphragm spring fingers for discoloration, scoring, bent or broken segments.

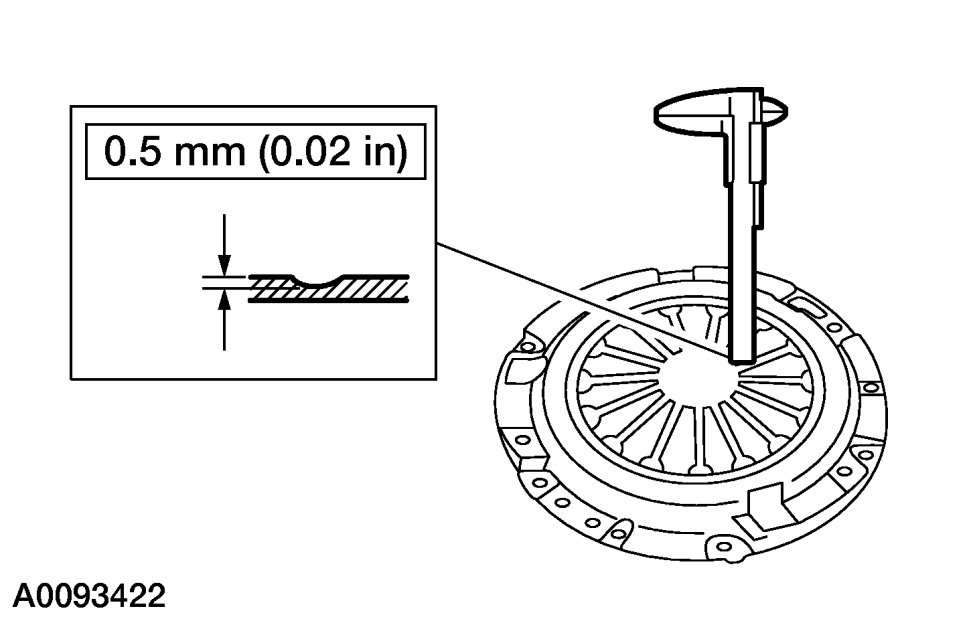

4. Measure the wear of the diaphragm spring fingers.
