Shifter M/T: Service and Repair

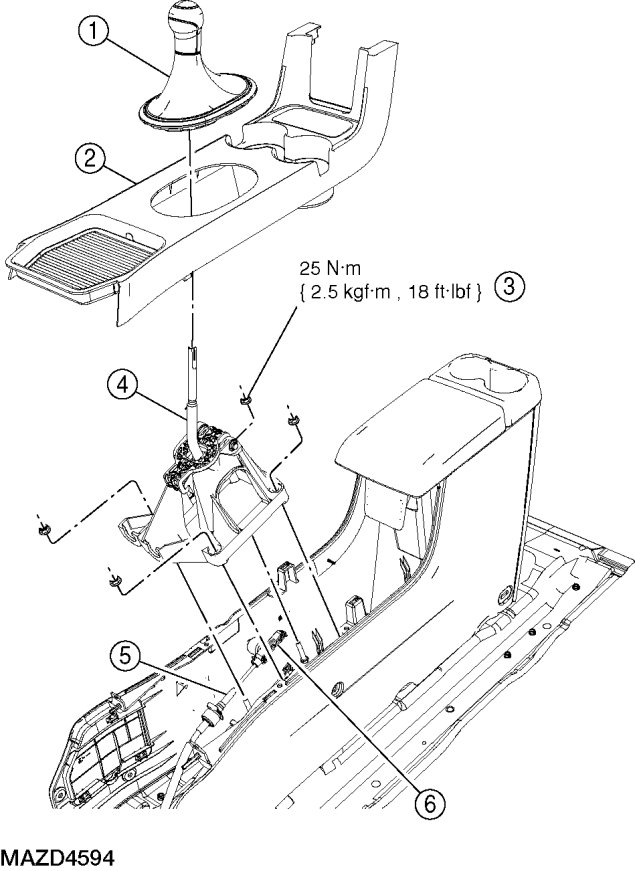

GEARSHIFT LEVER REMOVAL/INSTALLATION









Removal

1. Remove the gearshift lever knob and boot assembly.

2. Remove the floor console finish panel.





3. Remove the 2 gearshift cable clips.

NOTE:Make sure the clips are set completely within the cable adapter groove and fully seated.
4. Carefully disconnect the gearshift cables from the gearshift lever.

5. Remove the 4 gearshift lever nuts.

6. Remove the gearshift lever.

Installation





1. Position the gearshift lever.





2. Connect the gearshift cables to the gearshift lever.





3. Install the 2 gearshift cable clips.

CAUTION:Make sure the clips are set completely within the cable adapter groove and fully seated.
4. Install the 4 gearshift lever nuts.

- Tighten to 25 Nm {2.5 kgf-m, 18 ft-lbf}.

5. Adjust the gearshift cables. See Adjustments.

6. Install the floor console finish panel.

7. Install the gearshift lever knob and boot assembly.
