Pinpoint Test 3: A Single Power Window Is Inoperative - RH Front Window

PINPOINT TEST 3: A SINGLE POWER WINDOW IS INOPERATIVE - RH FRONT WINDOW

Normal Operation

The window adjust switch, passenger side receives power from the master window adjust switch through circuit (V/W). The window adjust switch, passenger side provides power to the power window motor, passenger side front through circuit (V) and ground through circuit (W/O) to operate the RH front window down; and power through circuit (W/O) and ground through circuit (V) to operate the RH front window up.When operating the RH front window using the master window adjust switch, power is sent to the window adjust switch, passenger side through circuit (G/O) and ground through circuit (BR/Y) to operate the RH front window down; and power through circuit (BR/Y) and ground through circuit (G/O) to operate the RH front window up.

Possible Causes
- Wiring, terminals or connectors
- Master window adjust switch
- Window adjust switch, passenger side
- Power window motor, passenger side front

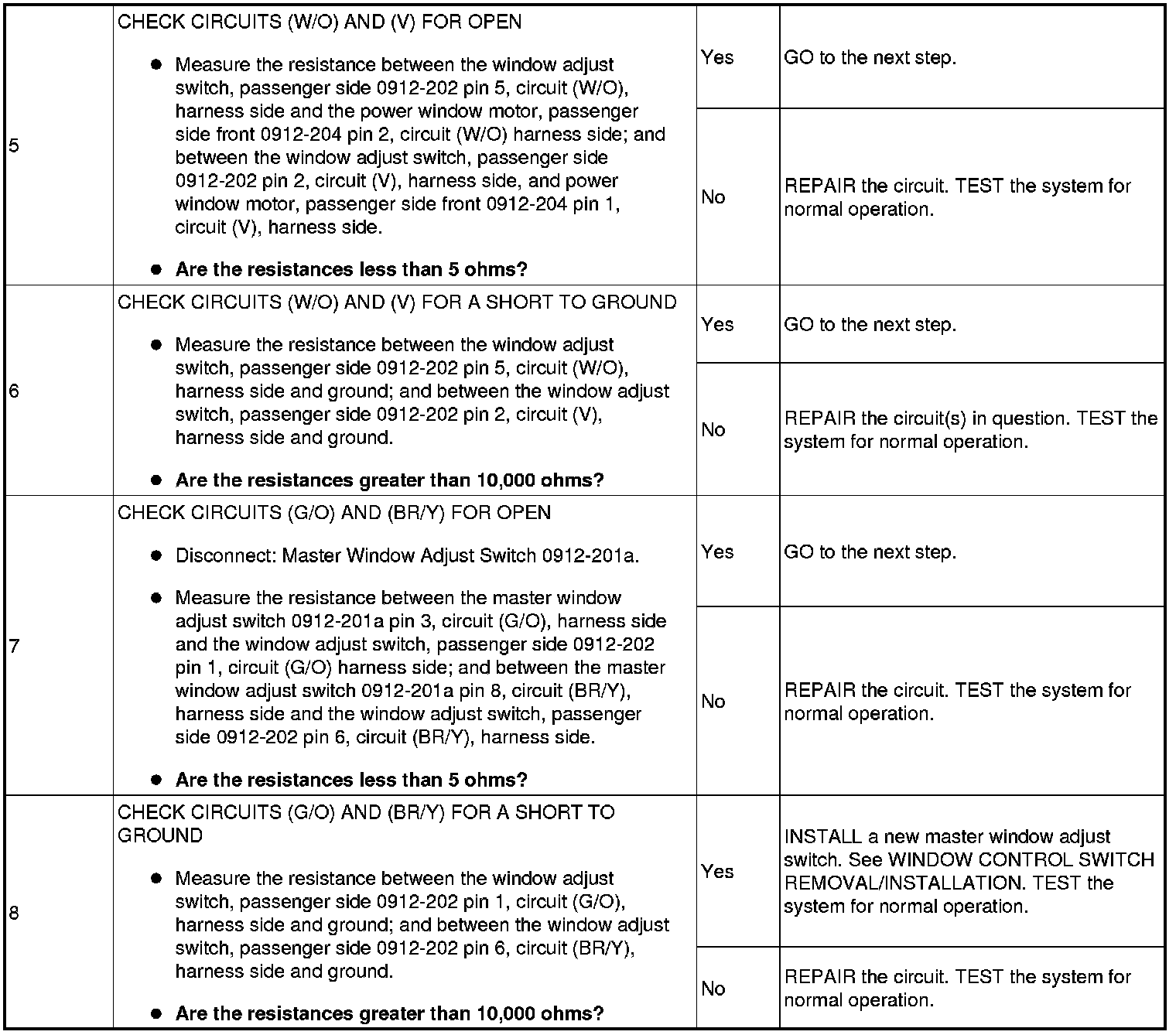

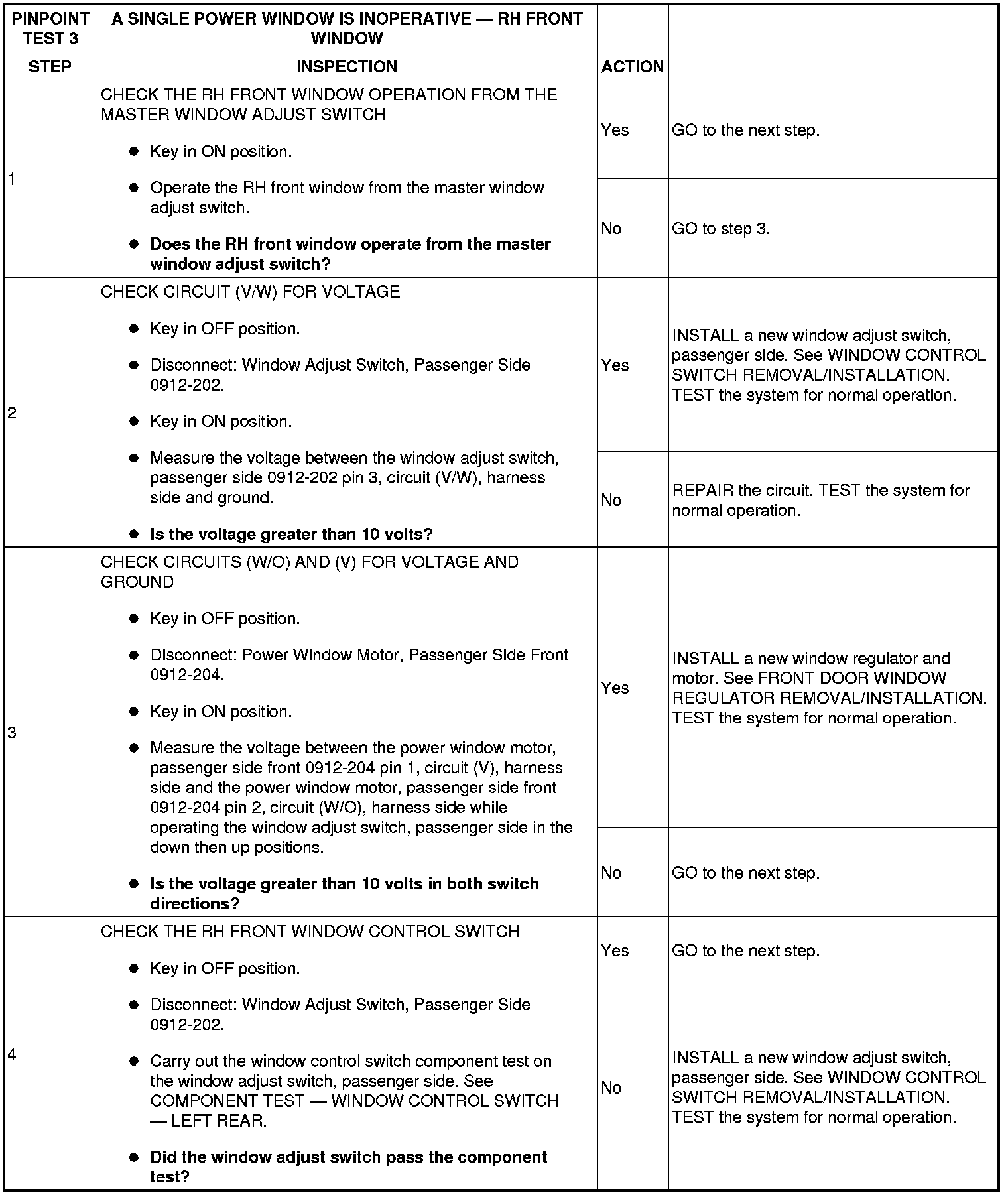

Diagnostic Procedure
