Pinpoint Test 5: A Single Power Window Is Inoperative - RH Rear Window

PINPOINT TEST 5: A SINGLE POWER WINDOW IS INOPERATIVE - RH REAR WINDOW

Normal Operation

The window adjust switch, right rear receives power from the master window adjust switch through circuit (V/W). The window adjust switch, right rear provides power to the power window motor, right rear through circuit (GY) and ground through circuit (W/V) to operate the RH rear window down; and power through circuit (W/V) and ground through circuit (GY) to operate the RH rear window up. When operating the RH rear window using the master window adjust switch, power is sent to the window adjust switch, right rear through circuit (BR/G) and ground through circuit (GY/V) to operate the RH rear window down; and power through circuit (GY/V) and ground through circuit (BR/G) to operate the RH rear window up.

Possible Causes
- Wiring, terminals or connectors
- Master window adjust switch
- Window adjust switch, right rear
- Power window motor, right rear

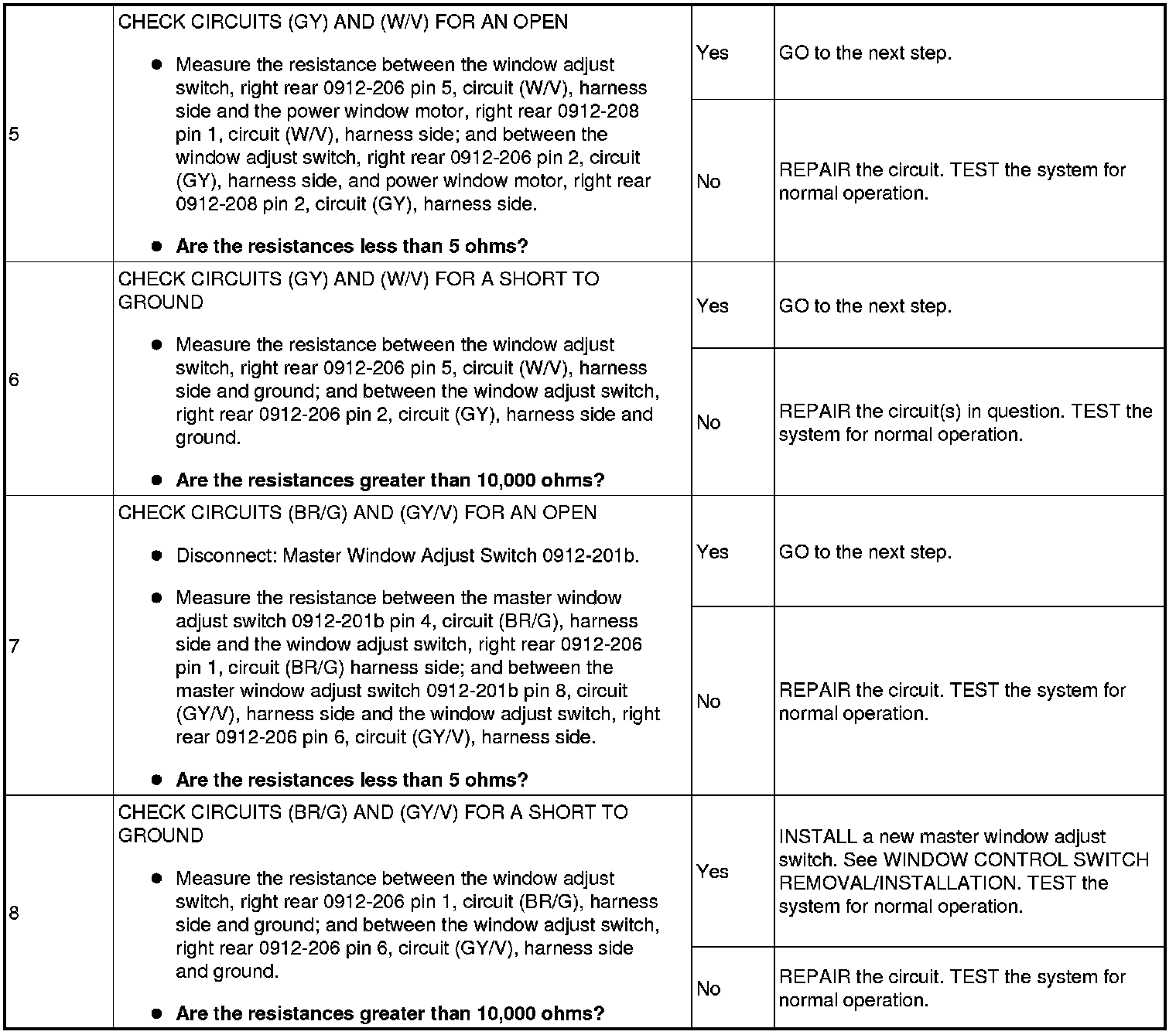

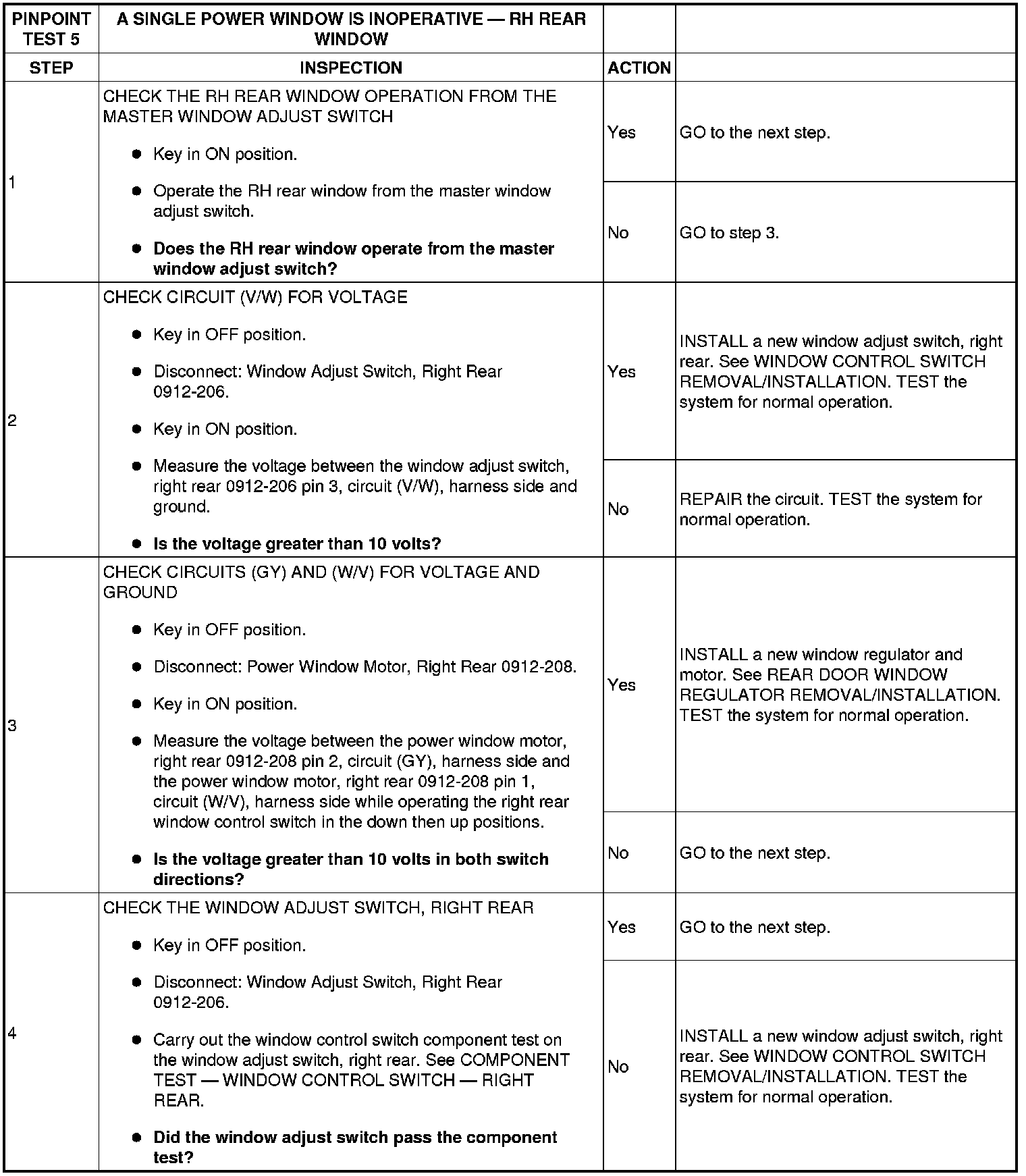

Diagnostic Procedure
