Front Door Glass Top Run Removal/Installation

FRONT DOOR GLASS TOP RUN REMOVAL/INSTALLATION

1. Remove the front door window glass. See Front Door Window Glass Removal/Installation.

2. Remove the front door interior sail panel.

- If equipped, disconnect the speaker electrical connector.

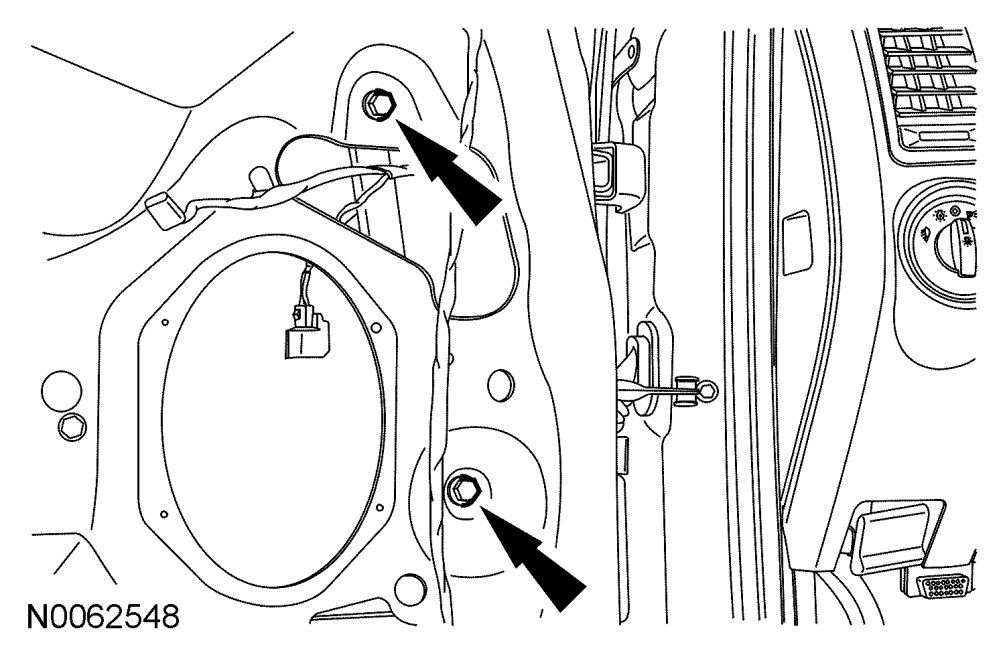

3. Remove the 2 front door glass top run bolts.

- To install tighten to 6 Nm {0.6 kgf-m, 53 in-lbf}.

4. Remove the front door glass top run.

5. To install, reverse the removal procedure.
