REAR WINDOW WIPER MOTOR REMOVAL/INSTALLATION


1. Remove the rear pivot arm. See - Wiper Pivot Arm - Rear Removal/Installation.

2. Remove the rear wiper motor shaft nut cover.

3. Remove the rear wiper motor shaft nut.

- To install, manually finger-tighten the nut, then tighten to 6 Nm {0.6 kgf-m, 53 in-lbf}.

4. Open the liftgate glass.

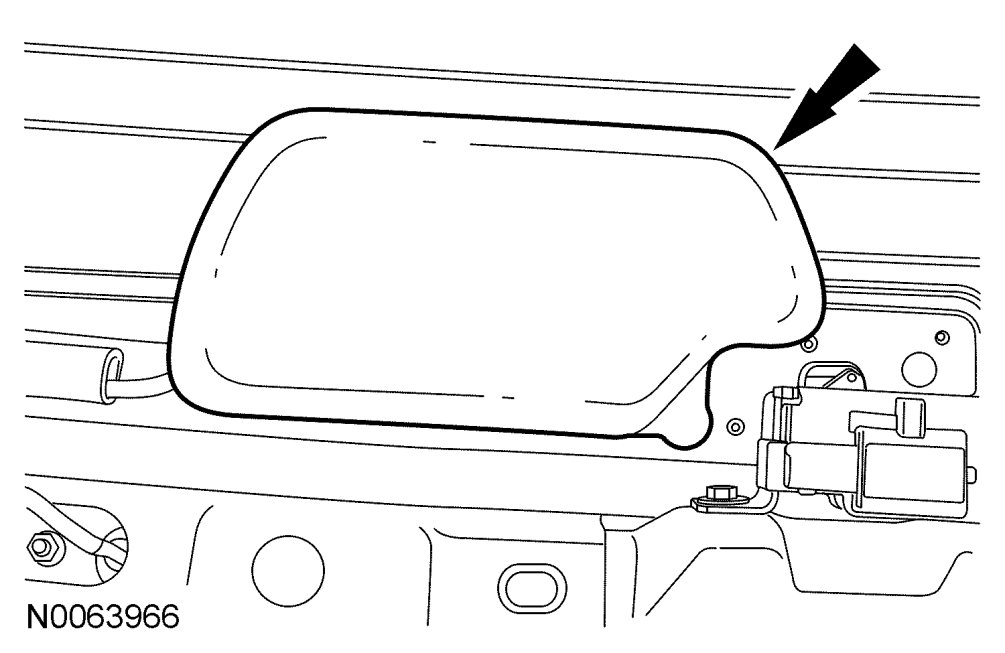

5. Remove the rear wiper motor cover trim panel.

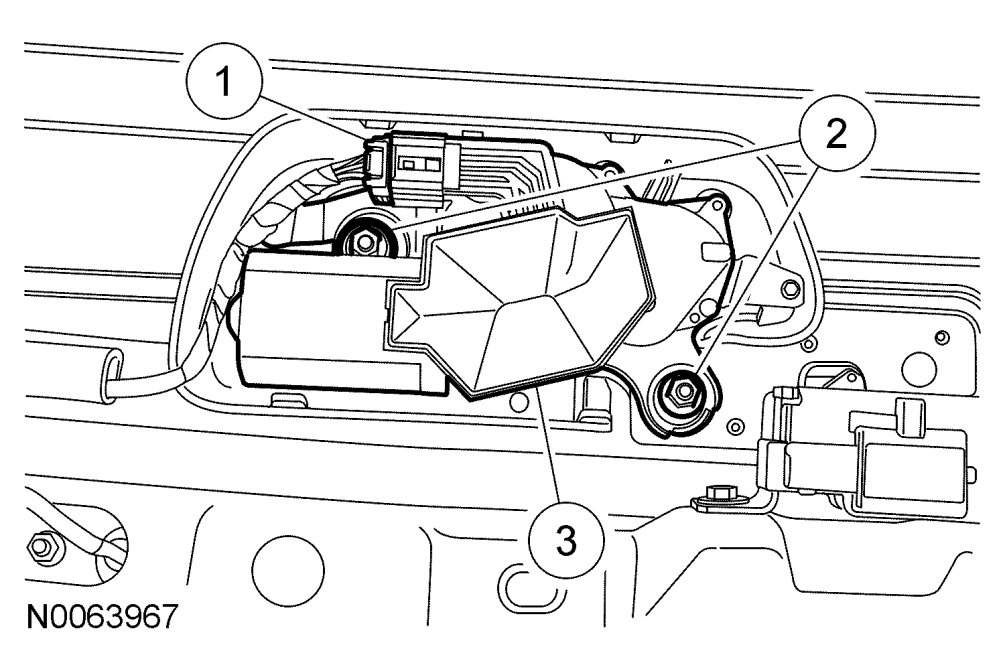

6. Remove the rear wiper motor.
a. Disconnect the electrical connector.

b. Remove the 2 rear window wiper motor nuts.
i. To install, tighten to 7 Nm {0.7 kgf-m, 62 in-lbf}.

c. Remove the rear window wiper motor.

7. To install, reverse the removal procedure.
