Automatic Transmission/Transaxle




TRANSAXLE CONNECTOR LAYOUTS

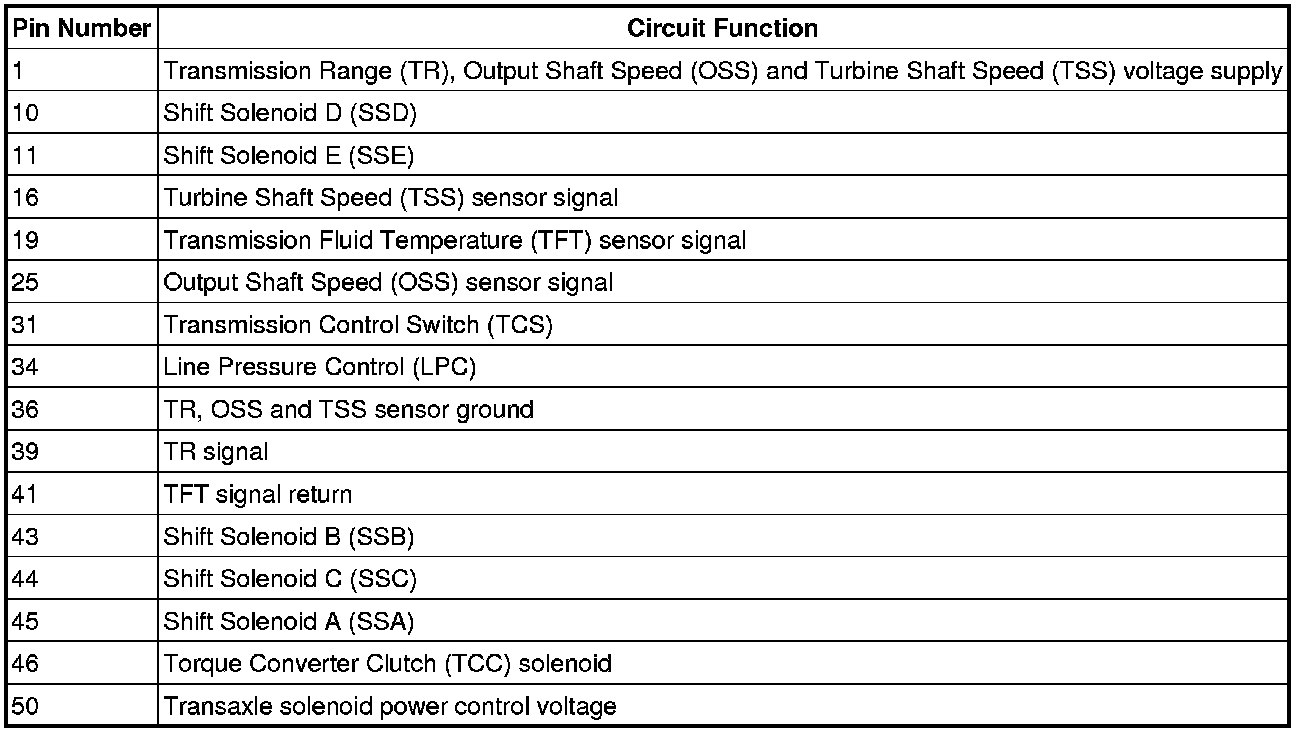

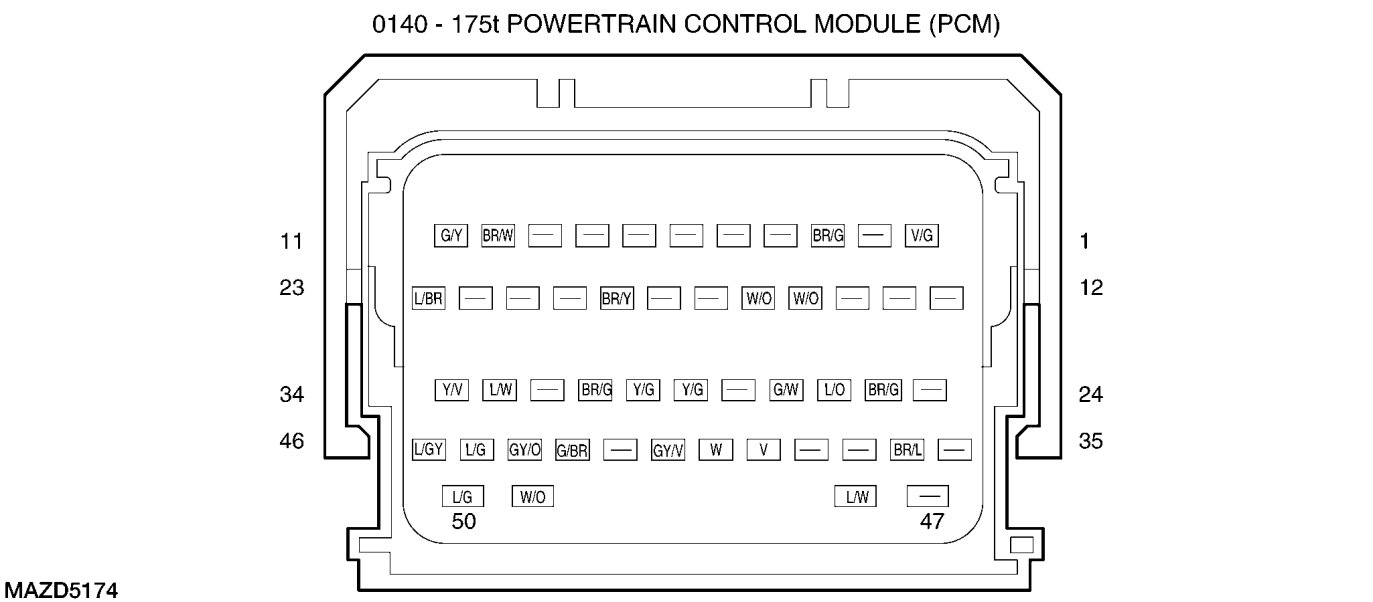

PCM Transaxle Harness - 0140-175T

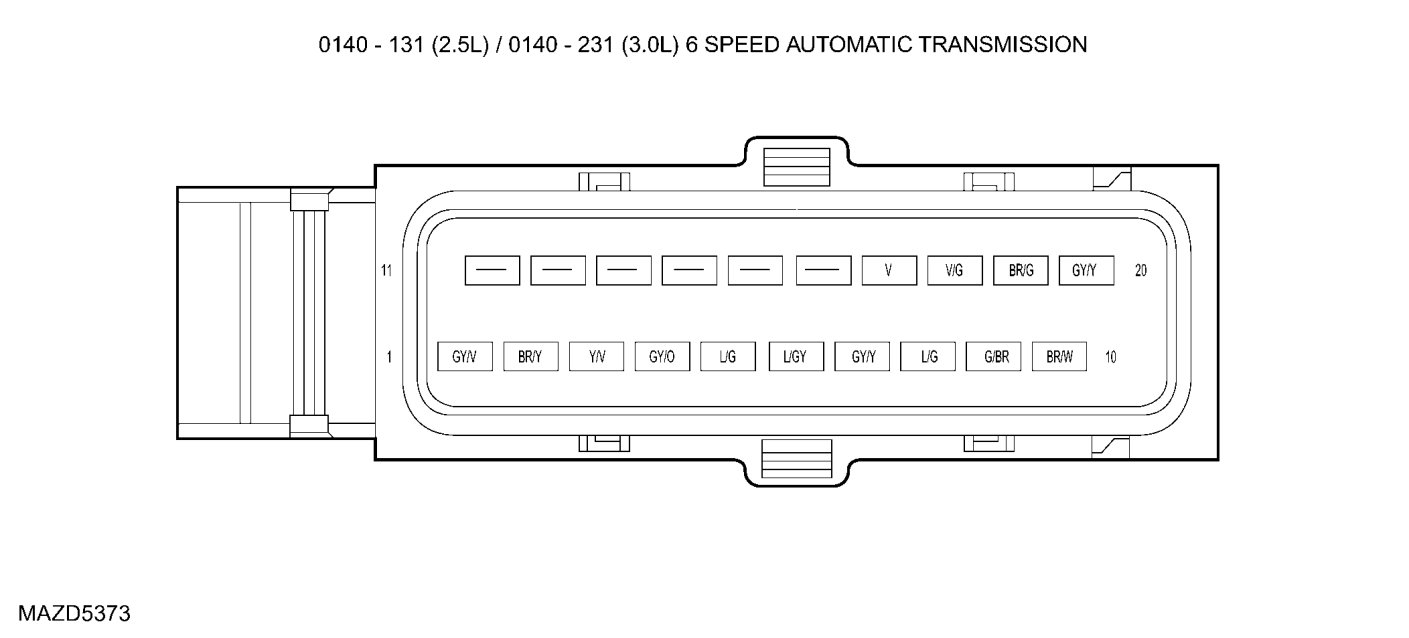

Transaxle Vehicle Harness - 0140-131 (2.5L), 0140-231 (3.0L)

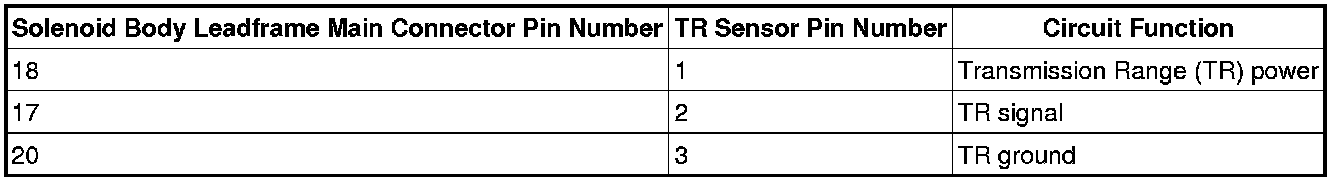

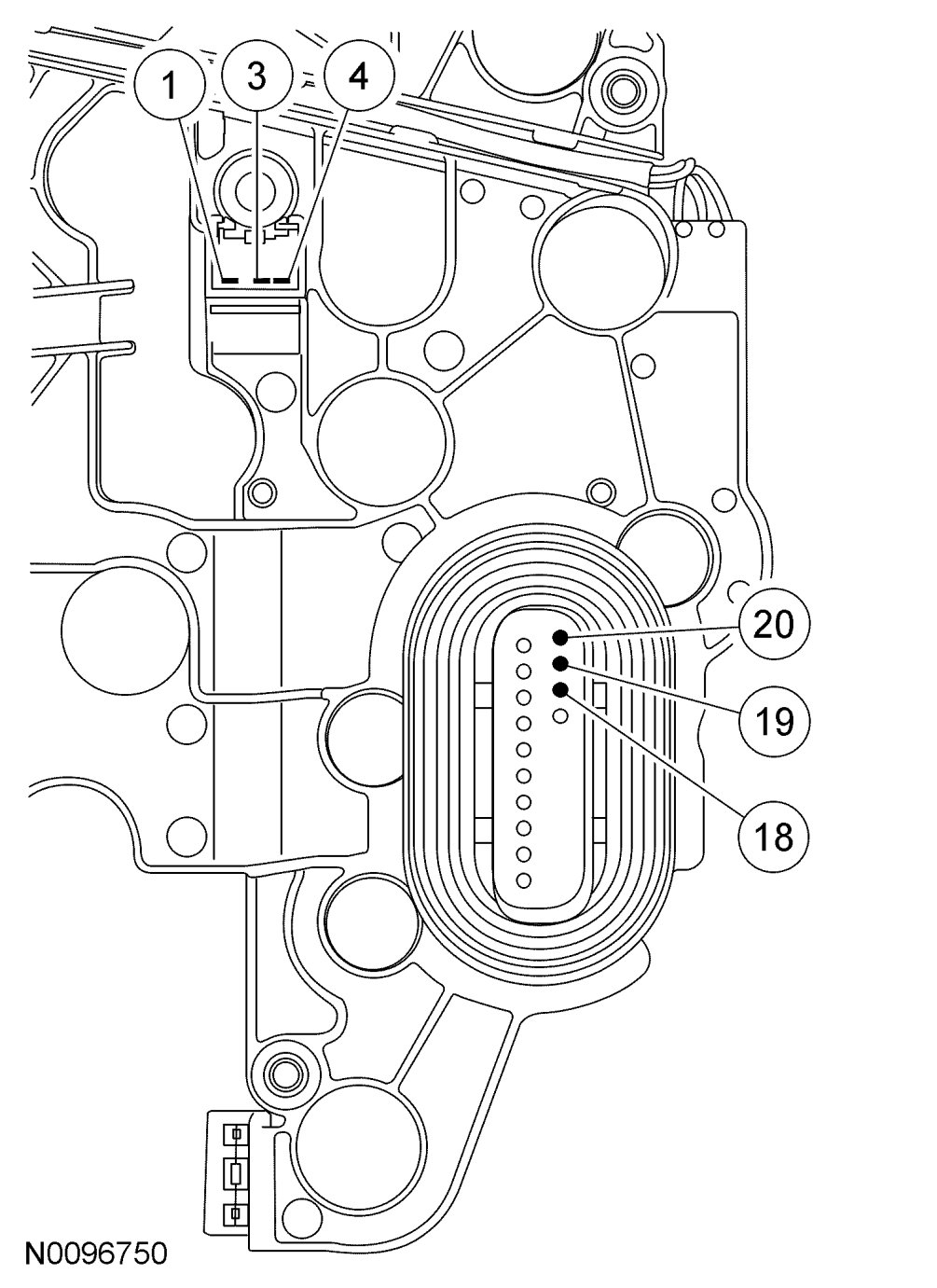

Solenoid Body Leadframe-to-Transmission Range (TR) Sensor Internal Circuit Diagram

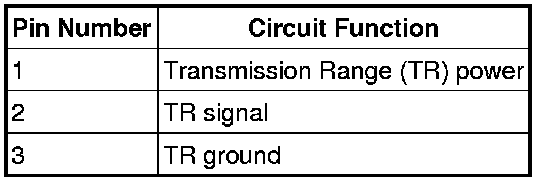

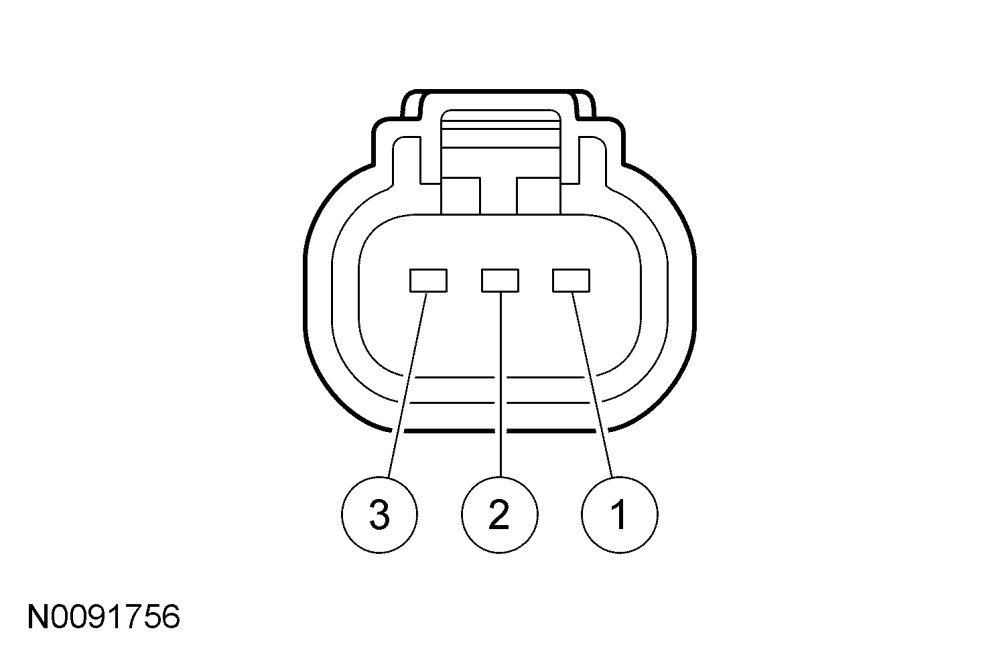

Transmission Range (TR) Sensor

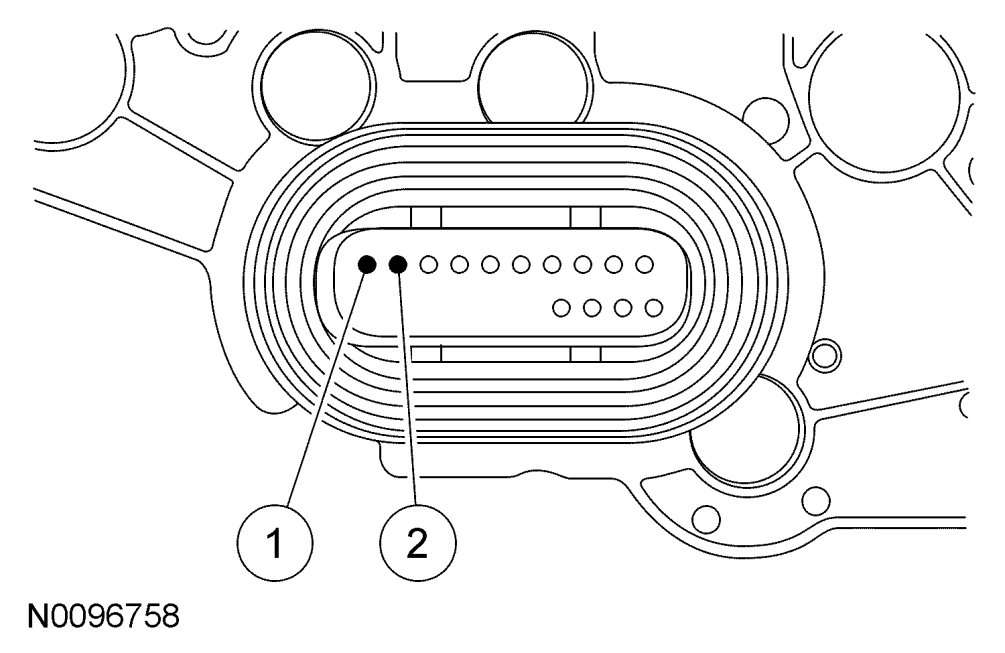

Solenoid Body Leadframe Transmission Fluid Temperature (TFT) Sensor Pins

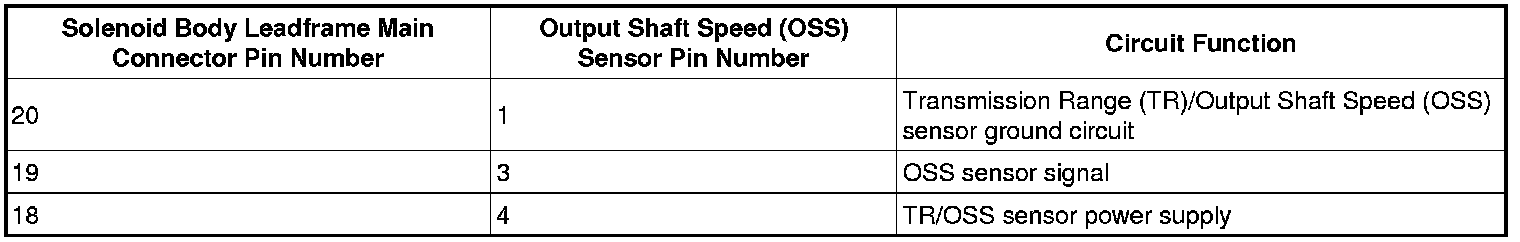

Solenoid Body Leadframe-to-Output Shaft Speed (OSS) Sensor Internal Circuit Diagram

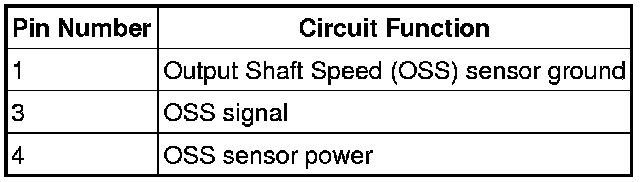

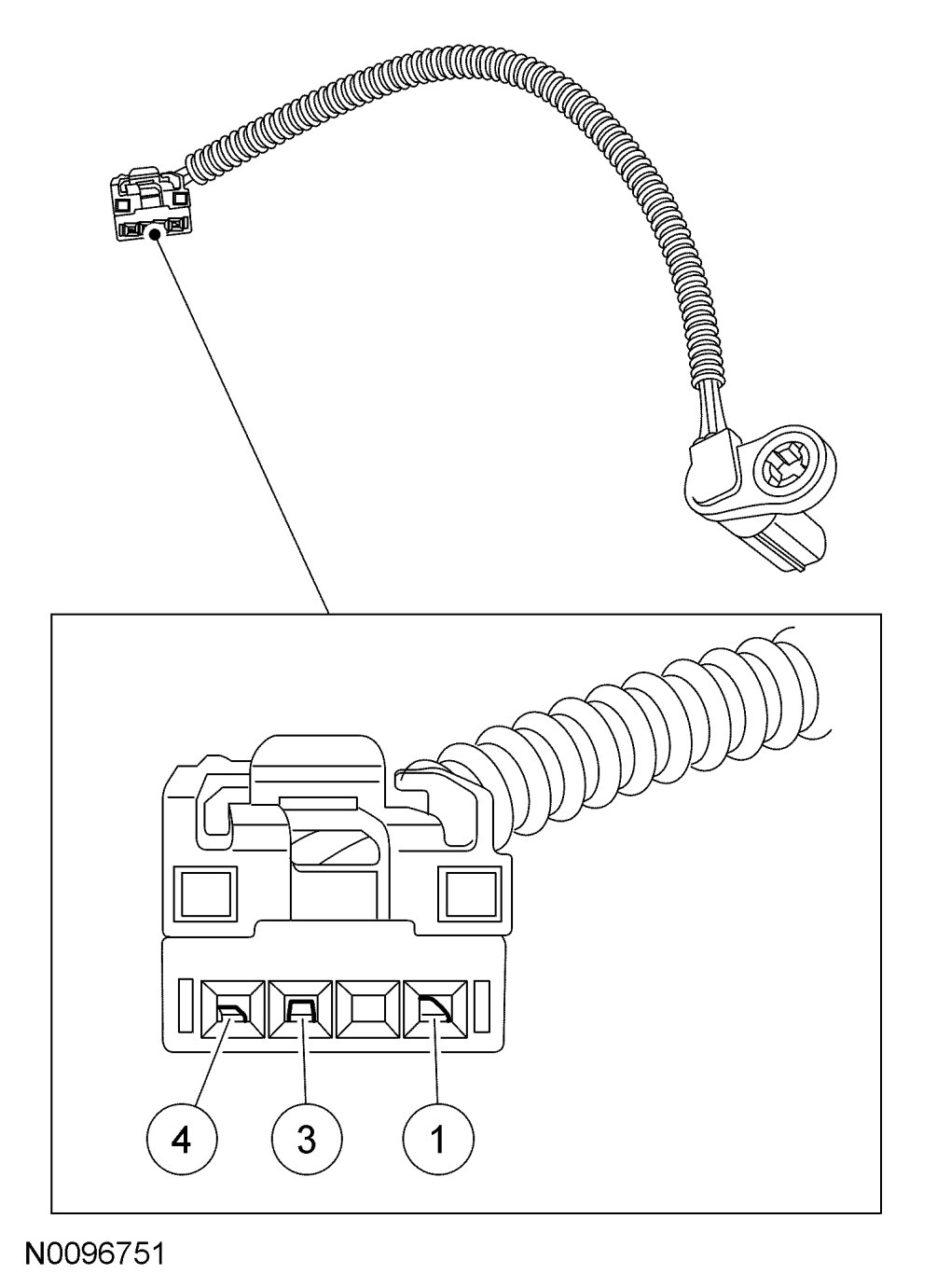

Output Shaft Speed (OSS) Sensor

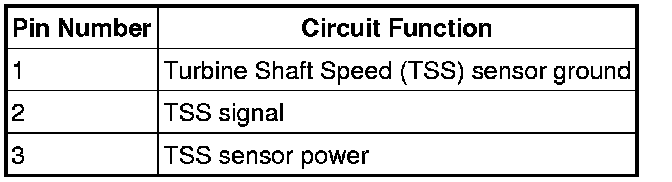

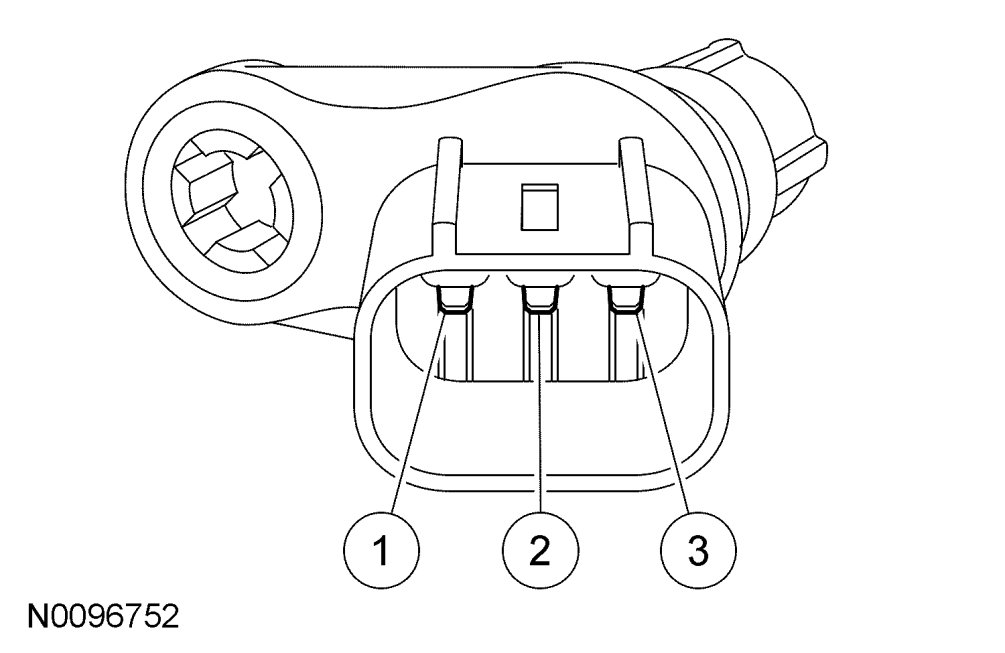

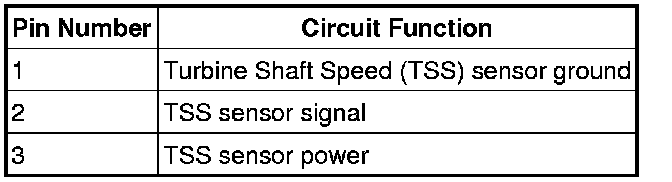

Turbine Shaft Speed (TSS) Sensor










Turbine Shaft Speed (TSS) Sensor

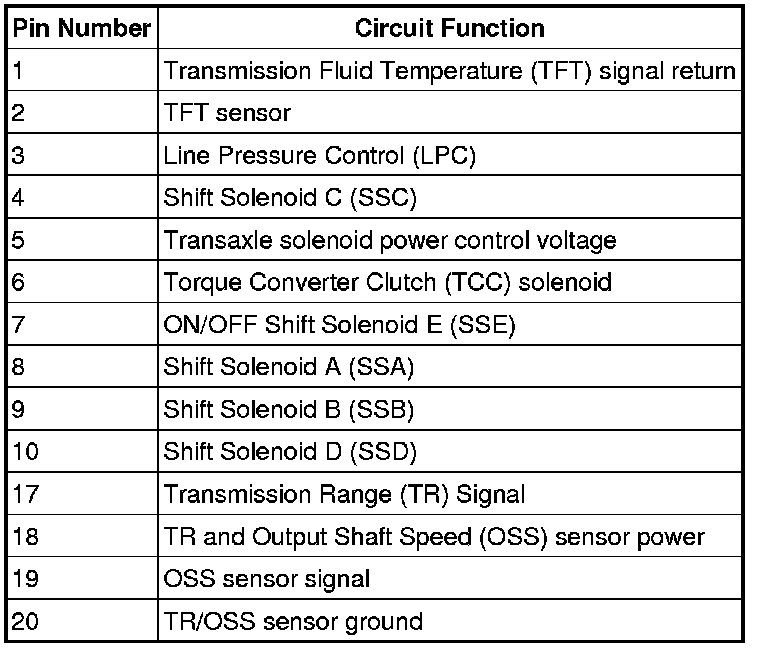

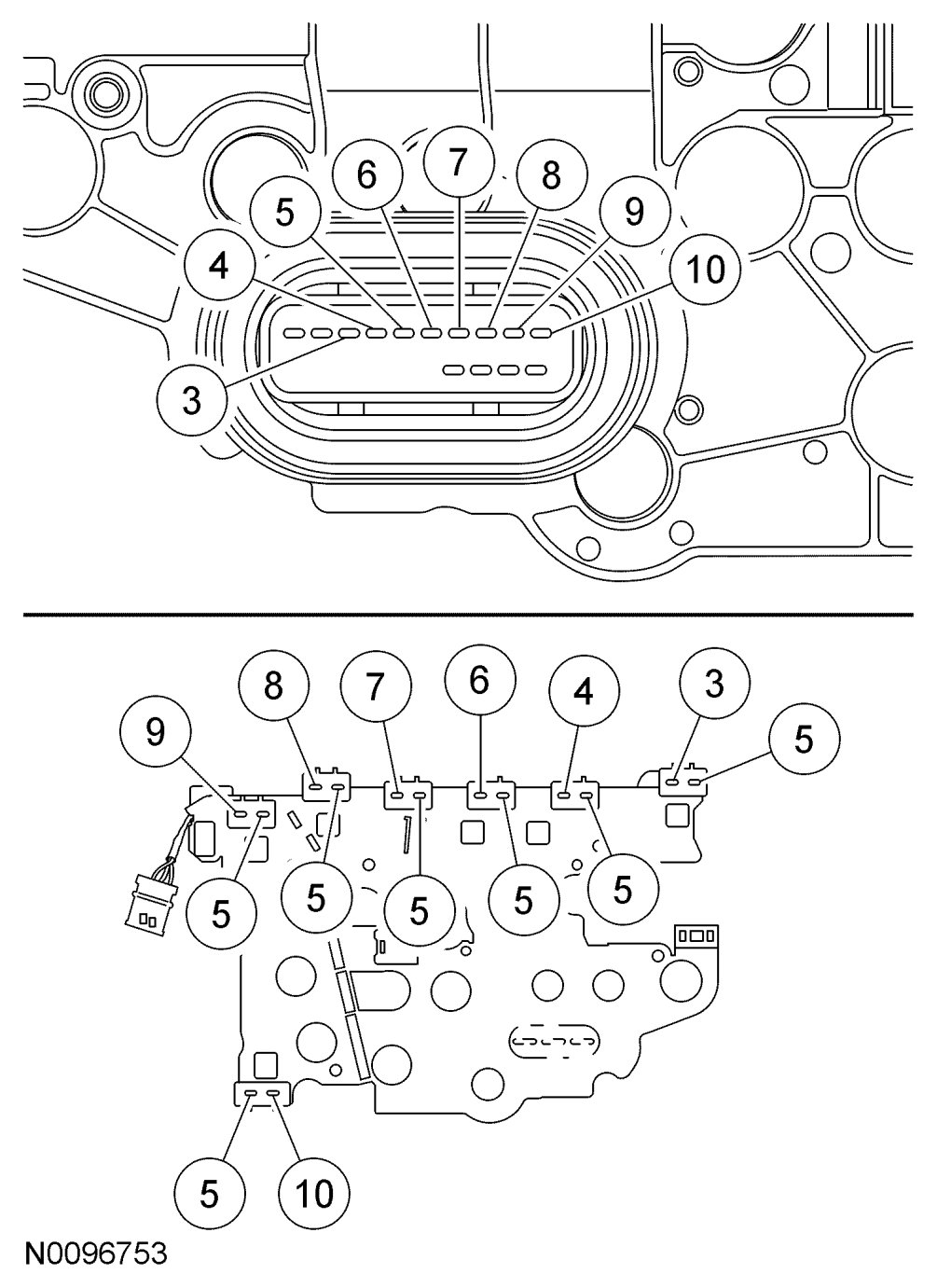

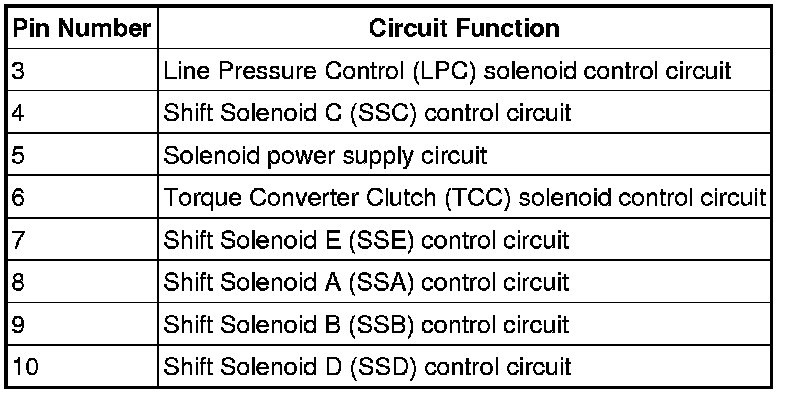

Solenoid Body Leadframe-to-Solenoid Internal Circuit Diagram
