Timing Components

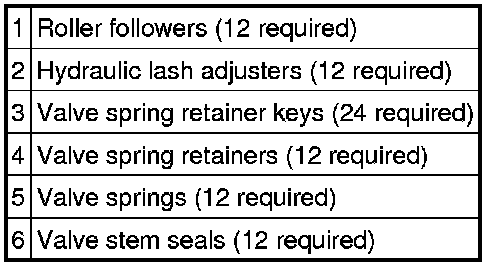

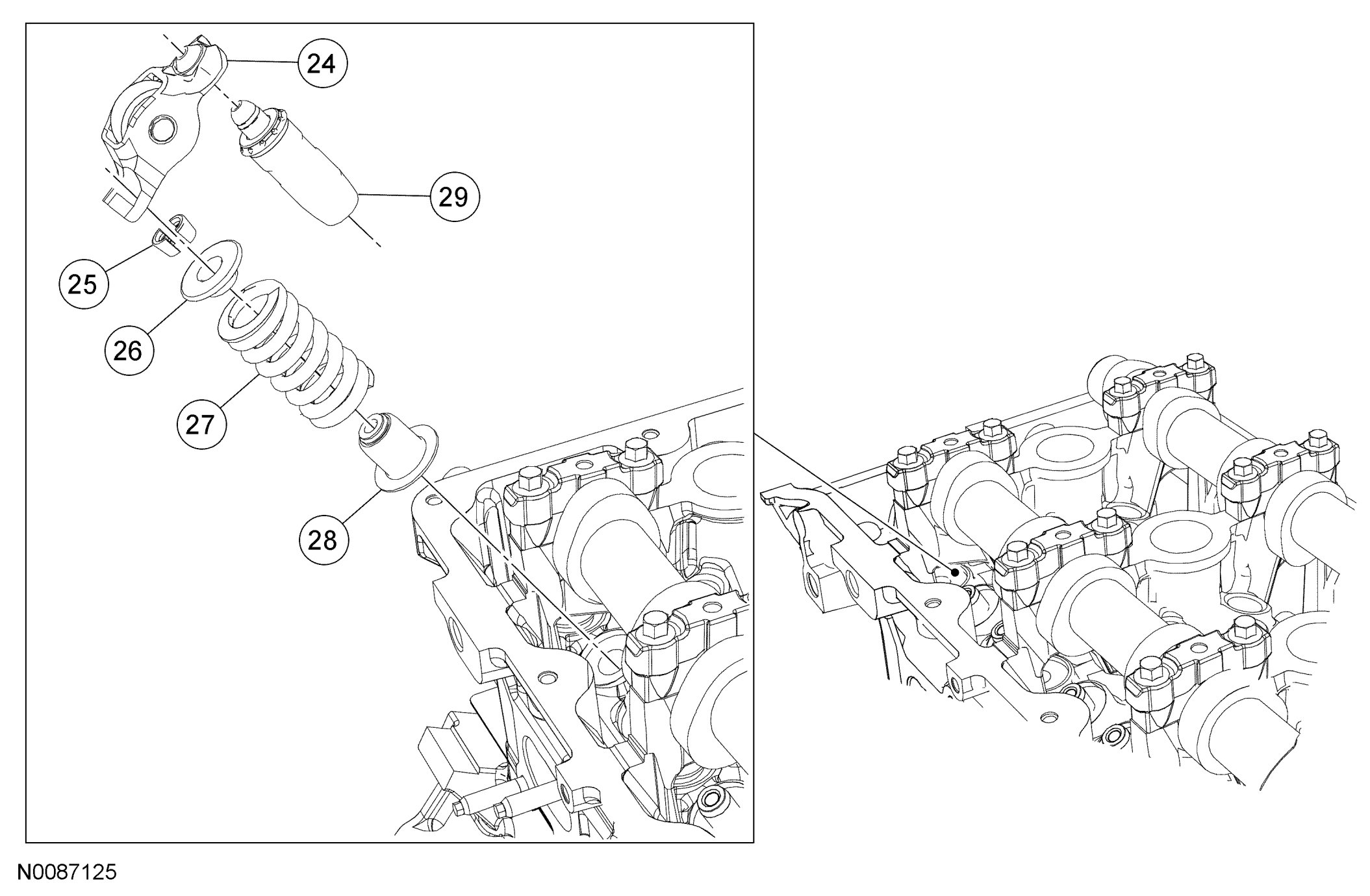

VALVE TRAIN COMPONENTS EXPLODED VIEW - 3.0LLH Side Roller Follower, Hydraulic Lash Adjuster and

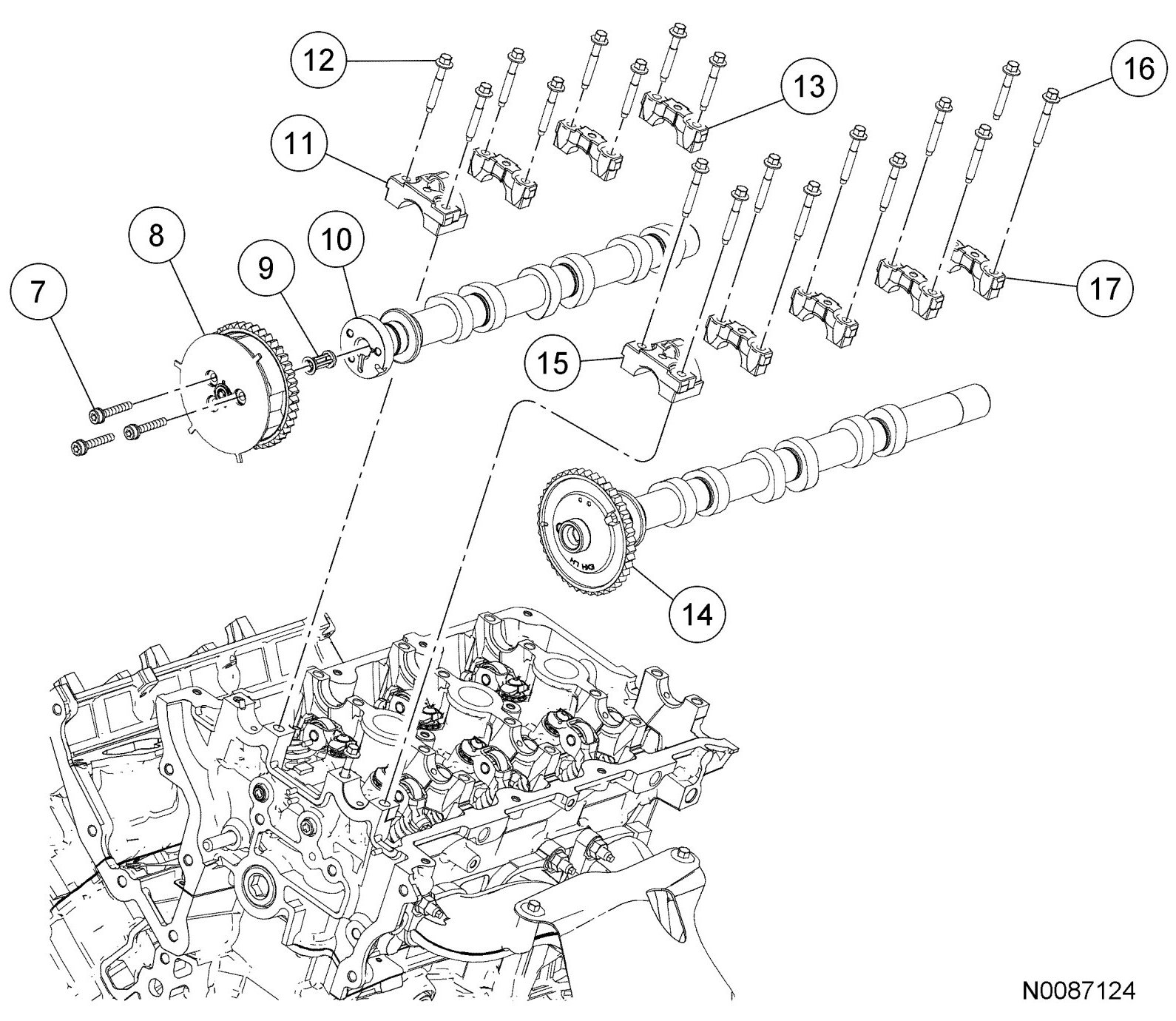

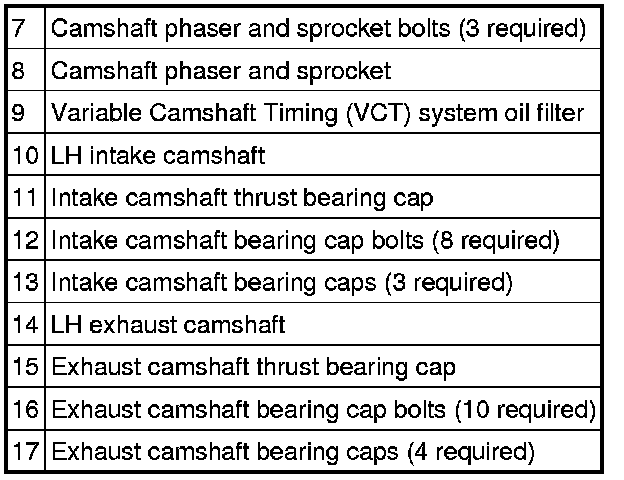

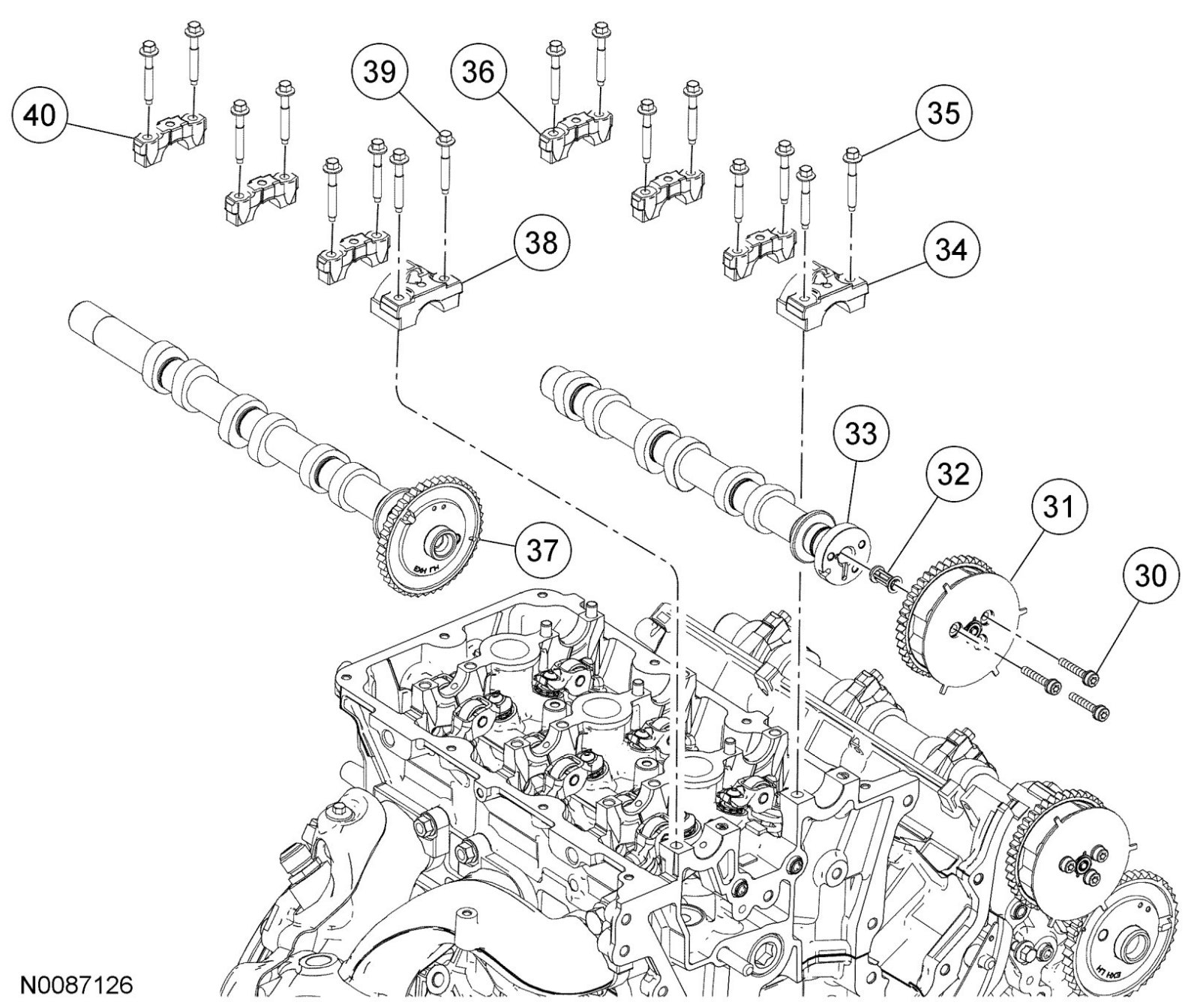

Valve SpringLH Side Intake and Exhaust Camshafts

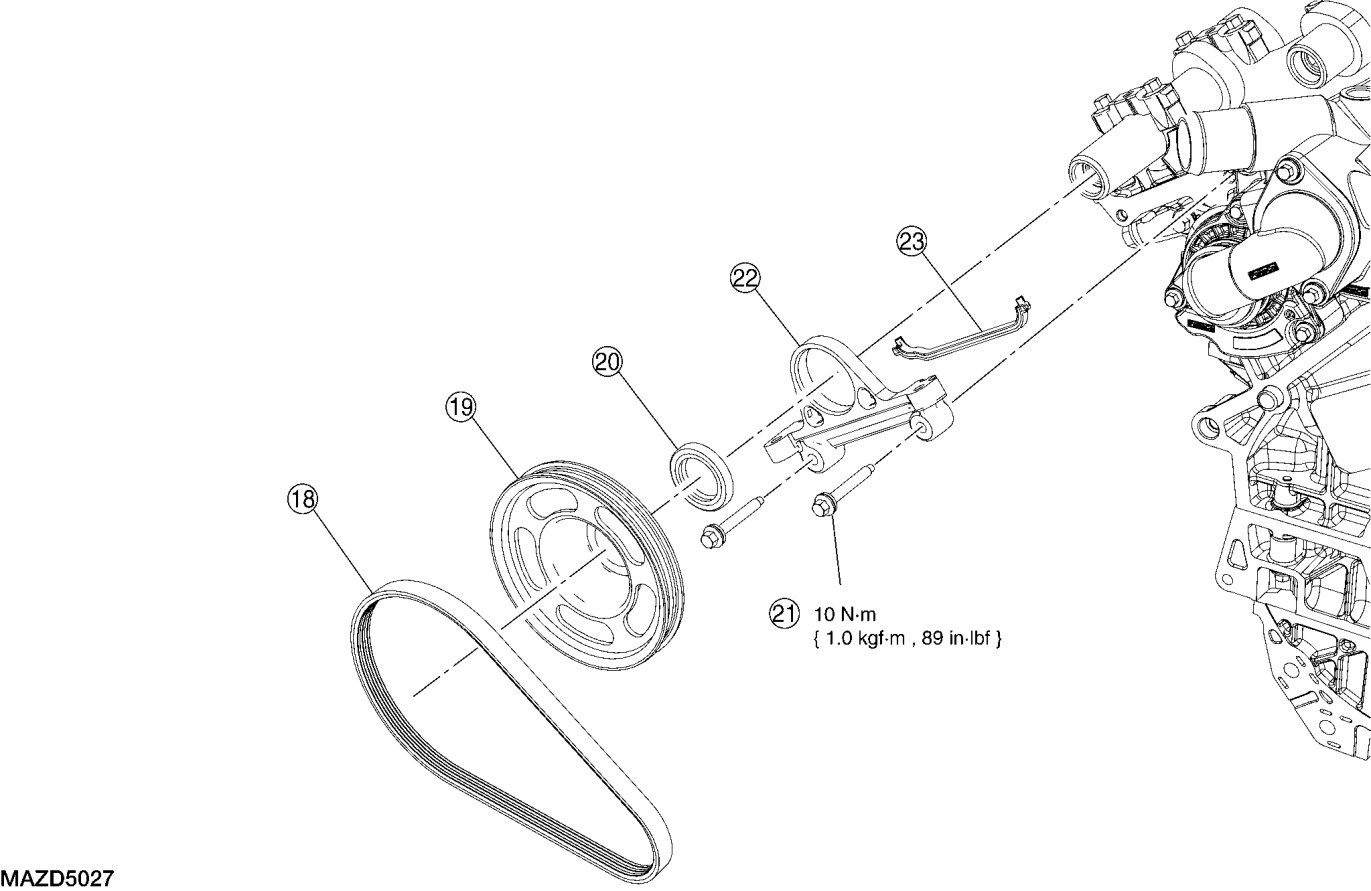

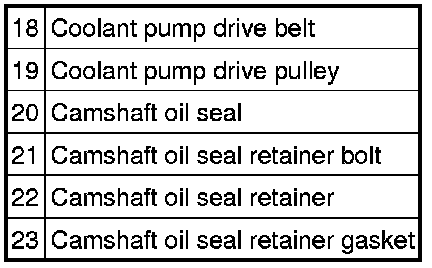

Coolant Pump Belt and Pulley

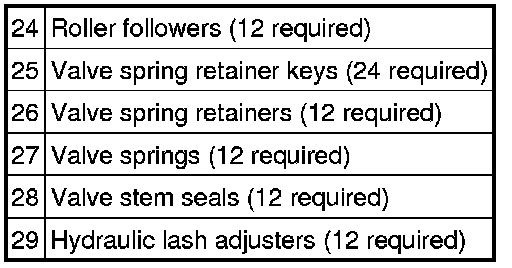

RH Side Roller Follower, Hydraulic Lash Adjuster and

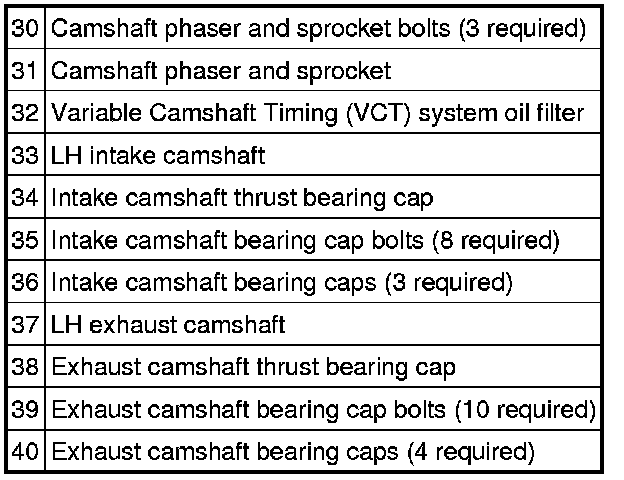

Valve SpringRH Side Intake and Exhaust
Camshaft 1.
For additional information, see the procedures.
