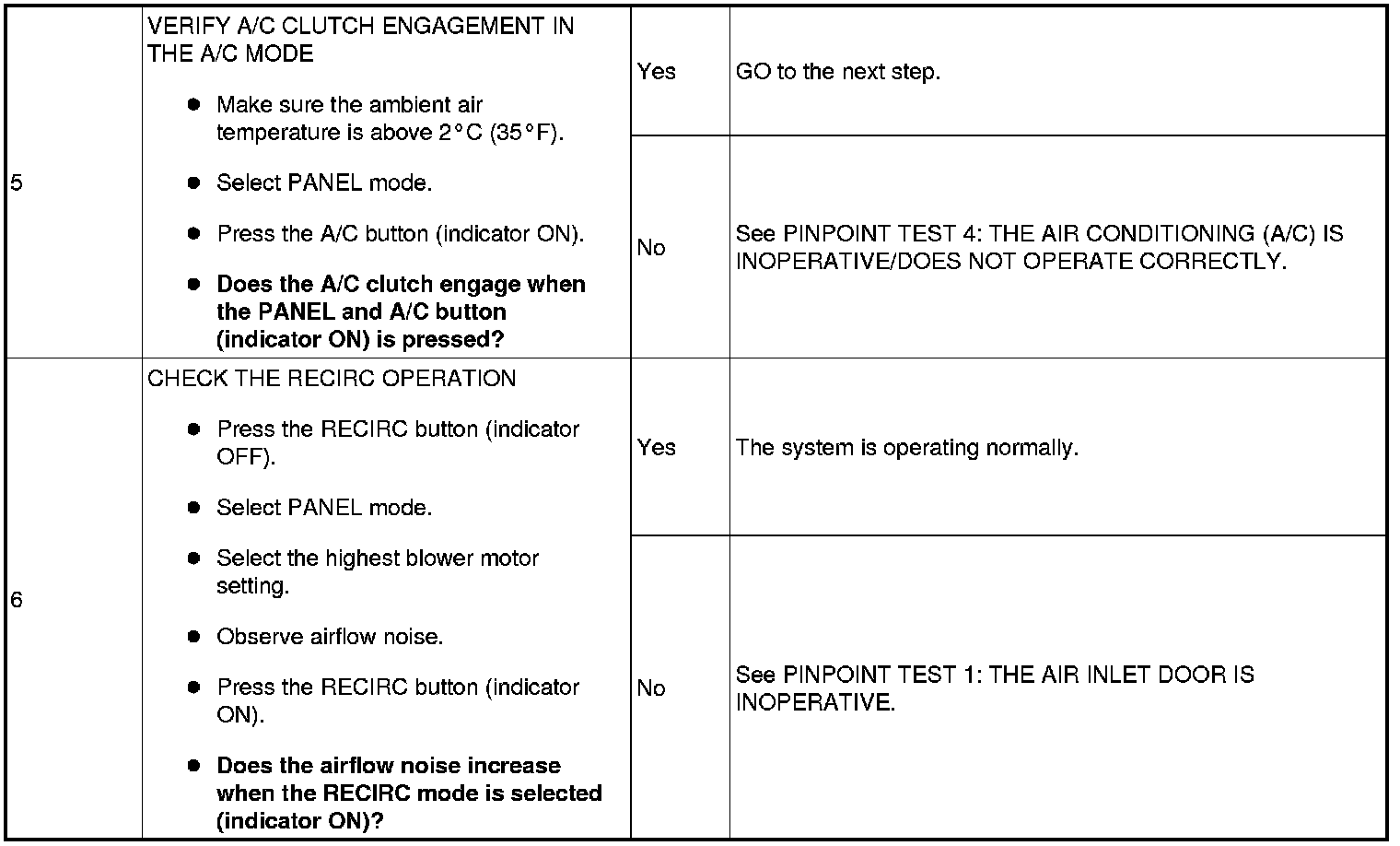

Pinpoint Test 14: HVAC Functions Verification
PINPOINT TEST 14: HVAC FUNCTIONS VERIFICATIONPossible Causes -
Incorrect functioning of the HVAC system
Diagnostic ProcedureNOTE:Diagnose any HVAC module DTCs before carrying out the following pinpoint test.
NOTE:Some PCM DTCs may inhibit A/C operation. If any PCM DTCs are retrieved, diagnose those first. See -
PCM - DTC Index.
