Fog/Driving Lamp: Adjustments

FRONT FOG LAMP ADJUSTMENT

1. Before starting the fog lamp assembly adjustment:

- Check the tire inflation
- Make sure there are no other loads in the vehicle other than a half tank of fuel
- Make sure the vehicle is on level ground
- Make sure the fog lamps and headlamps are clean
- Make sure the headlamps are operating and are correctly aimed

NOTE:Horizontal aim is not required for this vehicle and is not adjustable. Consult your state vehicle inspection center for recommended tolerance ranges for visual aiming.

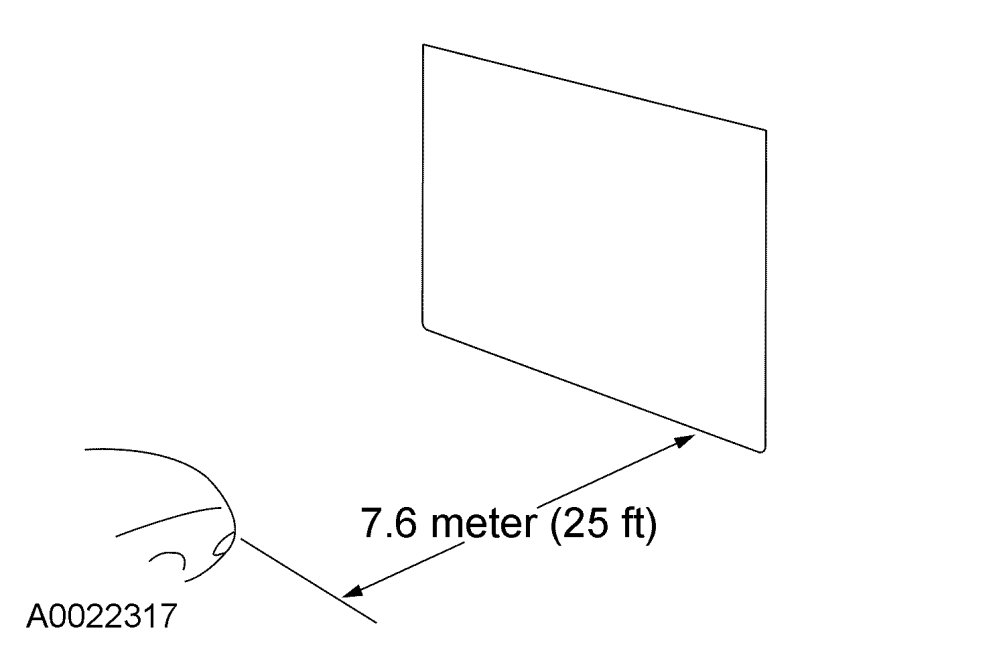

2. Park the vehicle on a level surface approximately 7.6 m (25 ft) from the vertical wall or screen directly in front of it.

NOTE:The vertical wall screen must be a minimum of 2.4 m (8 ft) wide.

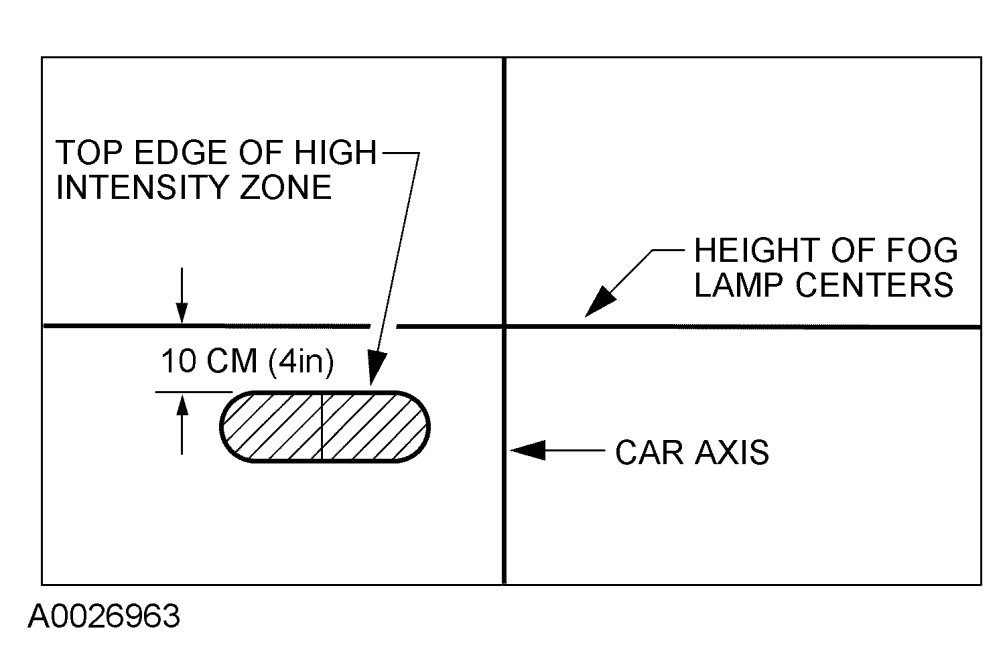

3. The correct visual aim for the fog lamps is with the top edge of the high-intensity zone 10 cm (4 in) below the horizontal center of the fog lamps.
