Freeze Frame PID Data Access Procedure




QUICK TEST

On-Board Diagnostic Test

Freeze Frame PID Data Access Procedure

1. Carry out the necessary vehicle preparation and visual inspection. Hook-up the IDS or equivalent tester to the vehicle.

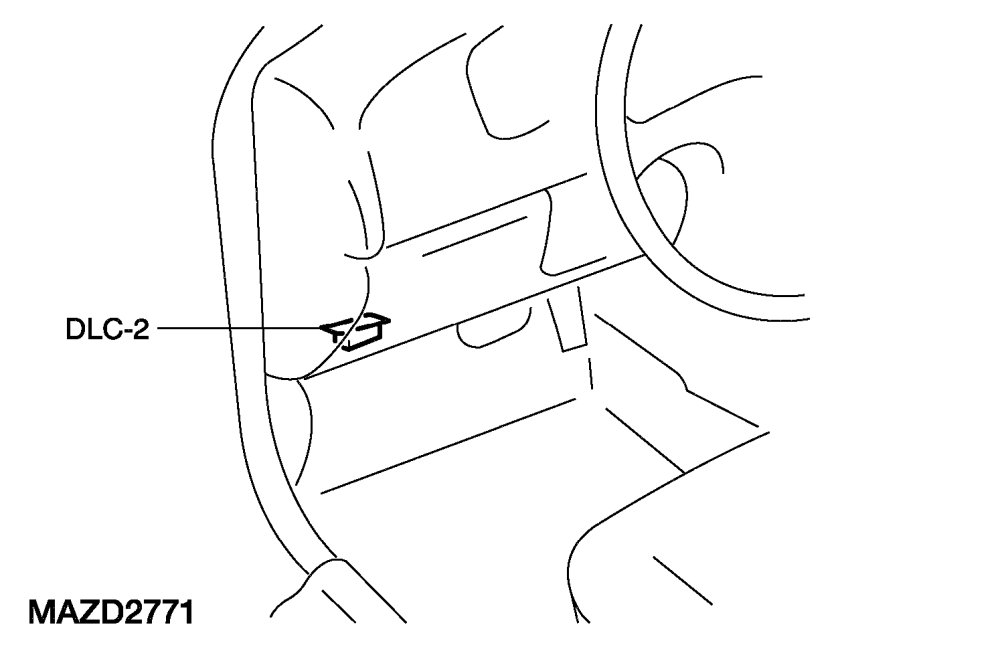

2. Connect the IDS or equivalent tester to the vehicle DLC-2 16-pin connector located on the left side of the center console.

3. Record the freeze frame PID data by IDS or equivalent tester.
