Quarter Trim Panel Removal/Installation

QUARTER TRIM PANEL REMOVAL/INSTALLATION

1. Open the rear door scuff plate trim panel access cover and remove the rear door scuff plate trim panel pin-type retainer.





2. Remove the rear door scuff plate trim panel.

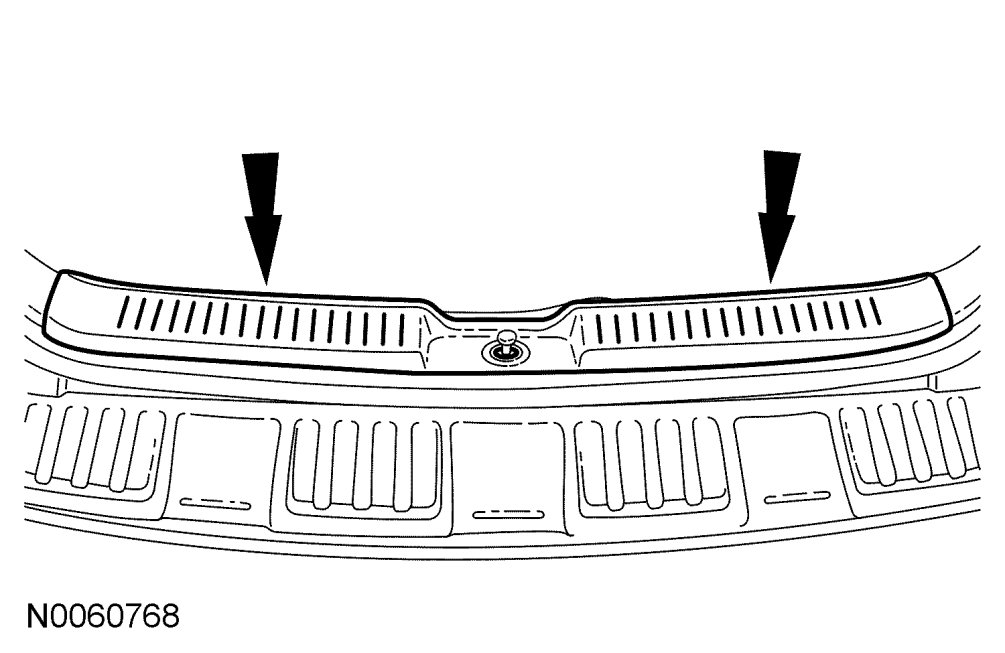

3. Remove the liftgate scuff plate.

4. Position the liftgate weatherstrip aside.

5. If equipped, remove the cargo net hold-down.





6. Remove the rear quarter trim panel.

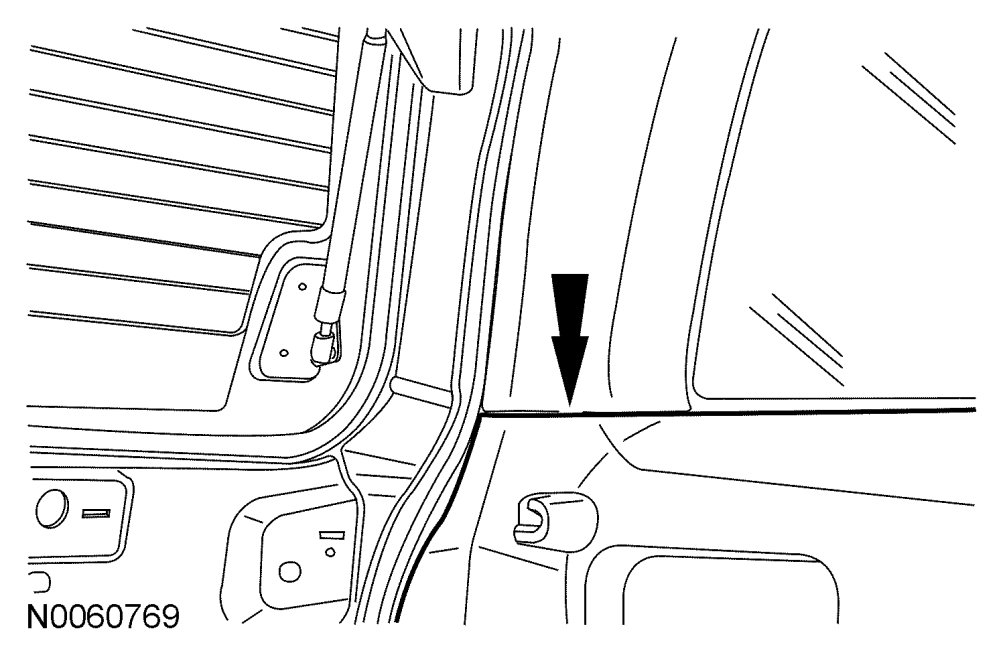

NOTE:Insert a non-marring tool between the D-pillar trim panel and rear quarter trim panel to release the trim panel.
7. To install, reverse the removal procedure.
