Rear Blower Motor

REAR BLOWER MOTOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Side wall Side Wall Removal/Installation

b. Center console box Center Console Box Removal/Installation

c. Console panel Console Panel Removal/Installation

d. Center console Center Console Removal/Installation

e. Shift lever knob (MTX) Service and Repair

f. Selector lever knob (ATX) Automatic Transaxle Shift Mechanism Removal/Installation

g. Shift panel Shift Panel Removal/Installation

h. Front console Front Console Removal/Installation

i. Rear blower unit Rear Blower Unit Removal/Installation

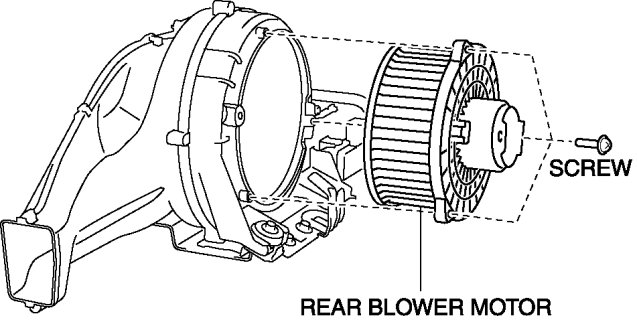

3. Remove the screws.

4. Remove the rear blower motor.

5. Install in the reverse order of removal.
