Cabin Temperature Sensor / Switch: Service and Repair

PASSENGER COMPARTMENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front scuff plate (passenger-side) Front Scuff Plate Removal/Installation

b. Front side trim (passenger-side) Front Side Trim Removal/Installation

c. Side wall Side Wall Removal/Installation

d. Center console box Center Console Box Removal/Installation

e. Console panel Console Panel Removal/Installation

f. Center console Center Console Removal/Installation

g. Shift lever knob (MTX) Service and Repair

h. Selector lever knob (ATX) Automatic Transaxle Shift Mechanism Removal/Installation

i. Shift panel Shift Panel Removal/Installation

j. Front console Front Console Removal/Installation

k. Side panel Side Panel Removal/Installation

l. Glove compartment Service and Repair

m. Lower panel (passenger-side) Lower Panel Removal/Installation

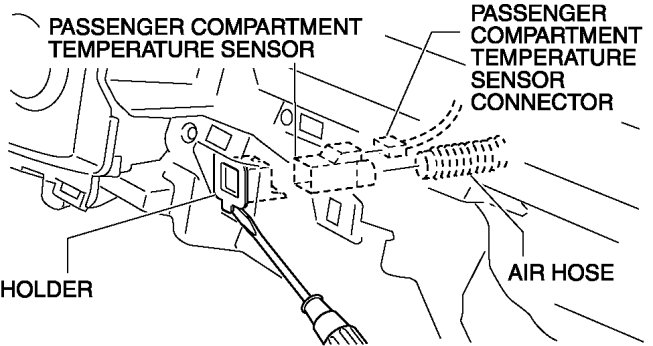

3. Remove the air hose.

4. Disconnect the passenger compartment temperature sensor connector.

5. Insert a tape-wrapped flathead screwdriver into the convex part of the passenger compartment temperature sensor and pry it to remove the passenger compartment temperature sensor together with passenger compartment temperature sensor holder.

6. Remove the passenger compartment temperature sensor.






7. Install in the reverse order of removal.
