Control Assembly: Service and Repair

CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

CAUTION:

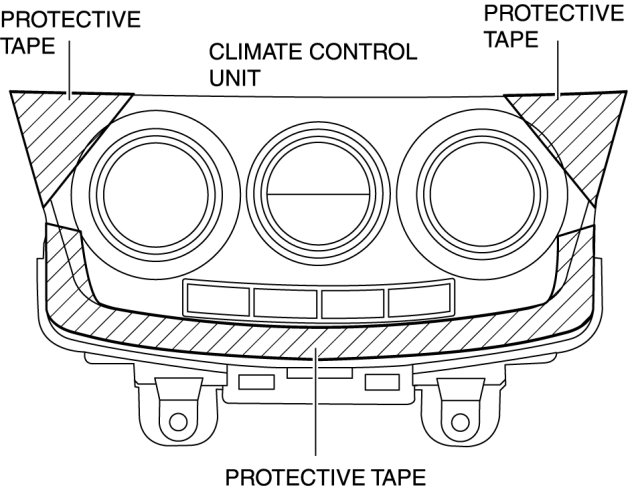

- Affix protective tape to the position shown in the figure to prevent damage.






1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Side wall Side Wall Removal/Installation

b. Center console box Center Console Box Removal/Installation

c. Console panel Console Panel Removal/Installation

d. Center console Center Console Removal/Installation

e. Shift lever knob (MTX) Service and Repair

f. Selector lever knob (ATX) Automatic Transaxle Shift Mechanism Removal/Installation

g. Shift panel Shift Panel Removal/Installation

h. Front console Front Console Removal/Installation

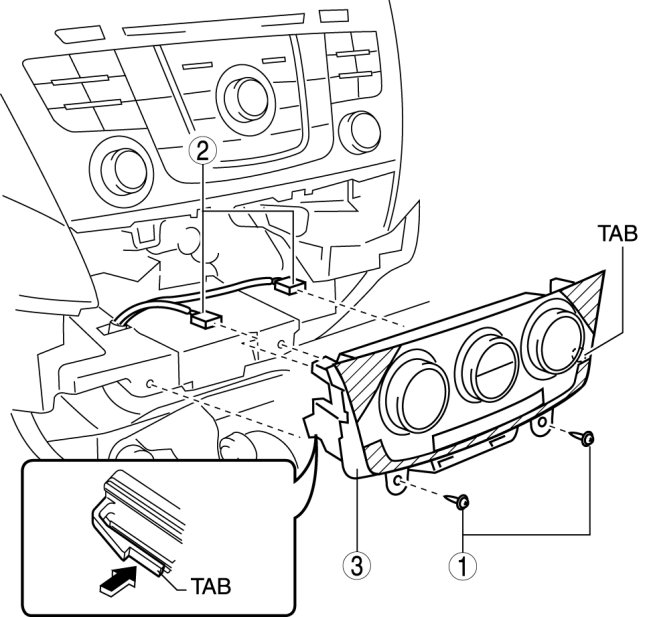

3. Release the left and right tabs and remove as shown in the figure.










4. Install in the reverse order of removal.
