Headlamp Alignment Switch: Testing and Inspection

HEADLIGHT LEVELING SWITCH INSPECTION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Driver-side front scuff plate Front Scuff Plate Removal/Installation

b. Driver-side front side trim Front Side Trim Removal/Installation

c. Side wall Side Wall Removal/Installation

d. Center console box Center Console Box Removal/Installation

e. Console panel Console Panel Removal/Installation

f. Center console Center Console Removal/Installation

g. Shift lever knob (MTX) Service and Repair

h. Selector lever knob (ATX) Automatic Transaxle Shift Mechanism Removal/Installation

i. Shift panel Shift Panel Removal/Installation

j. Front console Front Console Removal/Installation

k. Hood release lever Service and Repair

l. Driver-side lower panel Lower Panel Removal/Installation

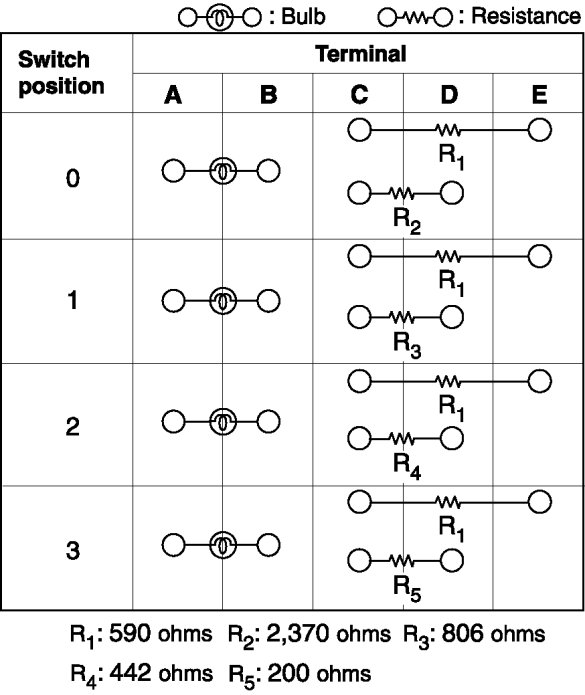

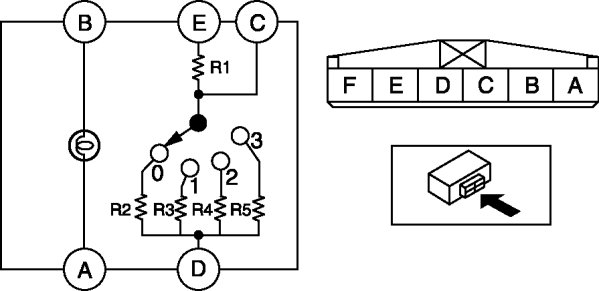

3. Verify that the resistance and continuity between the headlight leveling switch terminals is as indicated in the table.

- If the continuity is not as indicated in the table, or if the resistance is not within the specification, replace the headlight leveling switch.
