DTC P0113 [WL-C, WE-C (Australian, European (L.H.D. U.K.) specs.)]
id0102c4803800
DTC P0113 |
Intake air temperature (IAT) sensor No.1 circuit high input |
---|---|
DETECTION CONDITION
|
• The PCM monitors the input signal from IAT sensor No.1. If the voltage from IAT sensor No.1 is more than 4.90 V for 1.0 s, the PCM determines that there is a malfunction in the IAT sensor No.1 circuit.
|
POSSIBLE CAUSE
|
• IAT sensor No.1 malfunction
• Connector or terminal malfunction
• Open circuit in wiring harness between IAT sensor No.1 terminal B and PCM terminal 141
• Short to power supply in wiring harness between IAT sensor No.1 terminal B and PCM terminal 141
• Open circuit in wiring harness between IAT sensor No.1 terminal A and PCM terminal 111
• PCM malfunction
|
![]() |
Diagnostic procedure
STEP |
INSPECTION |
ACTION |
|
---|---|---|---|
1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has FREEZE FRAME DATA been recorded?
|
Yes
|
Go to the next step.
|
No
|
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
|
||
2
|
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
• Verify related service information availability.
• Is any related service information available?
|
Yes
|
Perform repair or diagnosis according to the available service information.
• If the vehicle is not repaired, go to the next step.
|
No
|
Go to the next step.
|
||
3
|
VERIFY CURRENT SIGNAL STATUS: IS CONCERN INTERMITTENT OR CONSTANT?
• Connect the M-MDS to the DLC-2.
• Clear the DTC from the PCM memory using the M-MDS.
• Start the engine.
• Is the same DTC present?
|
Yes
|
Go to the next step.
|
No
|
Intermittent concern exists.
Perform the “INTERMITTENT CONCERN TROUBLESHOOTING”.
|
||
4
|
INSPECT BOOST SENSOR/IAT SENSOR NO.1 CONNECTOR FOR POOR CONNECTION
• Turn the engine switch off.
• Disconnect the boost sensor/IAT sensor No.1 connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 9.
|
No
|
Go to the next step.
|
||
5
|
INSPECT IAT SENSOR NO.1 SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY
• Turn the engine switch to the ON position (Engine off).
• Measure the voltage between IAT sensor No.1 terminal B (wiring harness-side) and body ground.
• Is the voltage more than 4.90 V?
|
Yes
|
Repair or replace the wiring harness for a possible short to power supply, then go to Step 9.
|
No
|
Go to the next step.
|
||
6
|
INSPECT IAT SENSOR NO.1
• Inspect the IAT sensor No.1.
• Is there any malfunction?
|
Yes
|
Replace the IAT sensor No.1, then go to Step 9.
|
No
|
Go to the next step.
|
||
7
|
INSPECT PCM CONNECTOR FOR POOR CONNECTION
• Turn the engine switch off.
• Disconnect the PCM connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 9.
|
No
|
Go to the next step.
|
||
8
|

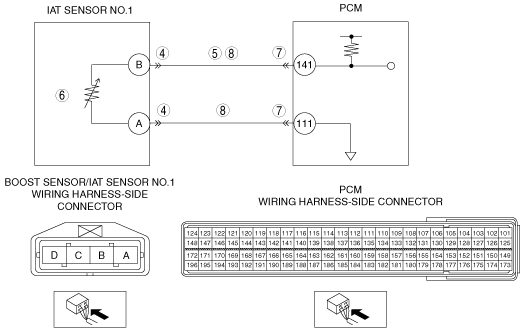

INSPECT IAT SENSOR NO.1 CIRCUIT FOR OPEN CIRCUIT
• Turn the engine switch off.
• Inspect for continuity between the following terminals:
• Is there continuity?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the wiring harness for a possible open circuit, then go to the next step.
|
||
9
|
VERIFY TROUBLESHOOTING OF DTC P0113 COMPLETED
• Turn the engine switch off.
• Make sure to reconnect all disconnected connectors.
• Turn the engine switch to the ON position (Engine off).
• Clear the DTC from the PCM memory using the M-MDS.
• Run the vehicle under the FREEZE FRAME DATA stored condition.
• Is the same DTC present?
|
Yes
|
Replace the PCM, then go to the next step.
|
No
|
Go to the next step.
|
||
10
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the “After Repair Procedure“.
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
|
No
|
DTC troubleshooting completed.
|
