DTC P0122 [WL-C, WE-C (Australian, European (L.H.D. U.K.) specs.)]


id0102c4804200

DTC P0122

Accelerator pedal position (APP) sensor No.1 circuit low input

DETECTION CONDITION
•  The PCM monitors the input signal from APP sensor No.1. If the voltage from APP sensor No.1 is less than 0.29 V for 0.5 s when the APP sensor No.1 power supply voltage is normal, the PCM determines that there is a malfunction in the APP sensor No.1 circuit.
POSSIBLE CAUSE
•  APP sensor No.1 malfunction
•  Connector or terminal malfunction

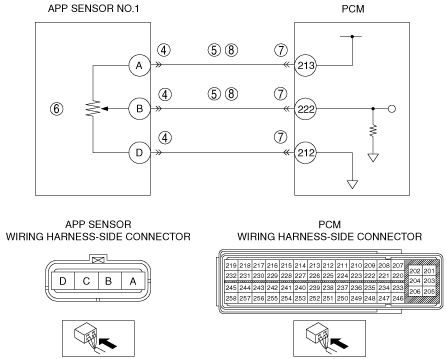

•  Open circuit in wiring harness between APP sensor No.1 terminal A and PCM terminal 213
•  Short to ground in wiring harness between APP sensor No.1 terminal A and PCM terminal 213
•  Open circuit in wiring harness between APP sensor No.1 terminal B and PCM terminal 222
•  Short to ground in wiring harness between APP sensor No.1 terminal B and PCM terminal 222
•  PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION

1
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
•  Has FREEZE FRAME DATA been recorded?
Yes
Go to the next step.
No
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
2
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
•  Verify related service information availability.
•  Is any related service information available?
Yes
Perform repair or diagnosis according to the available service information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
VERIFY CURRENT SIGNAL STATUS: IS CONCERN INTERMITTENT OR CONSTANT?
•  Connect the M-MDS to the DLC-2.
•  Clear the DTC from the PCM memory using the M-MDS.
•  Start the engine.
•  Is the same DTC present?
Yes
Go to the next step.
No
Intermittent concern exists.
Perform the “INTERMITTENT CONCERN TROUBLESHOOTING”.
4
INSPECT APP SENSOR CONNECTOR FOR POOR CONNECTION
•  Turn the engine switch off.
•  Disconnect the APP sensor connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 9.
No
Go to the next step.
5
INSPECT APP SENSOR NO.1 CIRCUIT FOR SHORT TO GROUND
•  Turn the engine switch off.
•  Inspect for continuity between the following terminals and body ground:
―  APP sensor No.1 terminal A (wiring harness-side) and body ground
―  APP sensor No.1 terminal B (wiring harness-side) and body ground
•  Is there continuity?
Yes
Repair or replace the wiring harness for a possible short to ground, then go to Step 9.
No
Go to the next step.
6
INSPECT APP SENSOR NO.1
•  Inspect the APP sensor No.1.
•  Is there any malfunction?
Yes
Replace the APP sensor, then go to Step 9.
No
Go to the next step.
7
INSPECT PCM CONNECTOR FOR POOR CONNECTION
•  Turn the engine switch off.
•  Disconnect the PCM connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 9.
No
Go to the next step.
8
INSPECT APP SENSOR NO.1 CIRCUIT FOR OPEN CIRCUIT
•  Turn the engine switch off.
•  Inspect for continuity between the following terminals:
―  APP sensor No.1 terminal A (wiring harness-side) and PCM terminal 213 (wiring harness-side)
―  APP sensor No.1 terminal B (wiring harness-side) and PCM terminal 222 (wiring harness-side)
•  Is there continuity?
Yes
Go to the next step.
No
Repair or replace the wiring harness for a possible open circuit, then go to the next step.
9
VERIFY TROUBLESHOOTING OF DTC P0122 COMPLETED
•  Turn the engine switch off.
•  Make sure to reconnect all disconnected connectors.
•  Turn the engine switch to the ON position (Engine off).
•  Clear the DTC from the PCM memory using the M-MDS.
•  Run the vehicle under the FREEZE FRAME DATA stored condition.
•  Is the same DTC present?
Yes
Replace the PCM, then go to the next step.
No
Go to the next step.
10
VERIFY AFTER REPAIR PROCEDURE
•  Perform the “After Repair Procedure“.
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
No
DTC troubleshooting completed.
