DTC P0222 [WL-C, WE-C (Australian, European (L.H.D. U.K.) specs.)]

id0102c4806000

DTC P0222

Accelerator pedal position (APP) sensor No.2 circuit low input
DETECTION CONDITION
•  The PCM monitors the input signal from APP sensor No.2. If the voltage from APP sensor No.2 is less than 0.29 V for 0.5 s when the APP sensor No.2 power supply voltage is normal, the PCM determines that there is a malfunction in the APP sensor No.2 circuit.
POSSIBLE CAUSE
•  APP sensor No.2 malfunction
•  Connector or terminal malfunction
•  Open circuit in wiring harness between APP sensor No.2 terminal A and PCM terminal 213
•  Short to ground in wiring harness between APP sensor No.2 terminal A and PCM terminal 213
•  Open circuit in wiring harness between APP sensor No.2 terminal C and PCM terminal 209
•  Short to ground in wiring harness between APP sensor No.2 terminal C and PCM terminal 209
•  PCM malfunction

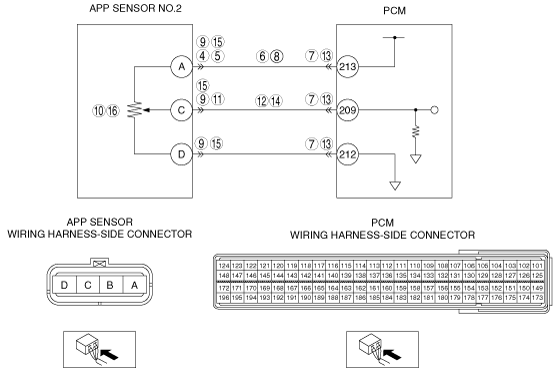

Diagnostic procedure

STEP

INSPECTION

ACTION
1
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
•  Has FREEZE FRAME DATA been recorded?
Yes
Go to the next step.
No
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
2
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
•  Verify related service information availability.
•  Is any related service information available?
Yes
Perform repair or diagnosis according to the available service information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
VERIFY CURRENT SIGNAL STATUS: IS CONCERN INTERMITTENT OR CONSTANT?
•  Connect the M-MDS to the DLC-2.
•  Clear the DTC from the PCM memory using the M-MDS.
•  Start the engine.
•  Is the same DTC present?
Yes
Go to the next step.
No
Intermittent concern exists.
Perform the “INTERMITTENT CONCERN TROUBLESHOOTING”.
(See INTERMITTENT CONCERN TROUBLESHOOTING [WL-C, WE-C].)
4
CLASSIFY 5V CONSTANT VOLTAGE CIRCUIT OR OTHER RELATED MALFUNCTION
•  Turn the engine switch to the ON position (Engine off).
•  Measure the voltage between the APP sensor terminal A (wiring harness-side) and body ground.
•  Is the voltage 5 V constant voltage ?
Yes
Go to Step 11.
No
Go to the next step.
5
CLASSIFY 5V CONSTANT VOLTAGE CIRCUIT OR APP SENSOR RELATED MALFUNCTION
•  Disconnect the APP sensor connector.
•  Turn the engine switch to the ON position (Engine off).
•  Measure the voltage between the APP sensor terminal A (wiring harness-side) and body ground.
•  Is the voltage 5 V constant voltage?
Yes
Go to Step 9.
No
Go to the next step.
6
INSPECT APP SENSOR 5V CONSTANT VOLTAGE CIRCUIT FOR SHORT TO GROUND
•  Turn the engine switch off.
•  Inspect for continuity between the APP sensor terminal A (wiring harness-side) and body ground
•  Is there continuity?
Yes
Repair or replace the wiring harness for a possible short to ground, then go to Step 17.
No
Go to the next step.
7
INSPECT PCM CONNECTOR FOR POOR CONNECTION
•  Turn the engine switch off.
•  Disconnect the PCM connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 17.
No
Go to the next step.
8
INSPECT APP SENSOR 5V CONSTANT VOLTAGE CIRCUIT FOR OPEN
•  Turn the engine switch off.
•  Inspect for continuity between the APP sensor terminal A (wiring harness-side) and PCM terminal 213 (wiring harness-side).
•  Is there continuity?
Yes
Go to step 17.
No
Repair or replace the wiring harness for an open circuit, then go to Step 17.
9
INSPECT APP SENSOR CONNECTOR FOR POOR CONNECTION
•  Turn the engine switch off.
•  Disconnect the APP sensor connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 17.
No
Go to the next step.
10
INSPECT APP SENSOR
•  Inspect the APP sensor.
•  Is there any malfunction?
Yes
Replace the APP sensor, then go to Step 17.
No
Go to step 17.
11
CLASSIFY SIGNAL CIRCUIT OR OTHER RELATED MALFUNCTION
•  Turn the engine switch to the ON position (Engine off).
•  Measure the voltage between the APP sensor terminal A (wiring harness-side) and body ground.
•  Is the voltage more than 0.29 V ?
Yes
Go to Step 13.
No
Go to the next step.
12
INSPECT APP SENSOR SIGNAL CIRCUIT FOR SHORT TO GROUND
•  Turn the engine switch off.
•  Disconnect the APP sensor connector.
•  Inspect for continuity between the APP sensor terminal C (wiring harness-side) and body ground
•  Is there continuity?
Yes
Repair or replace the wiring harness for a possible short to ground, then go to Step 17.
No
Go to Step 15.
13
INSPECT PCM CONNECTOR FOR POOR CONNECTION
•  Turn the engine switch off.
•  Disconnect the PCM connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 17.
No
Go to the next step.
14
INSPECT APP SENSOR SIGNAL CIRCUIT FOR OPEN
•  Turn the engine switch off.
•  Inspect for continuity between the APP sensor terminal C (wiring harness-side) and PCM terminal 209 (wiring harness-side).
•  Is there continuity?
Yes
Go to Step 17.
No
Repair or replace the wiring harness for an open circuit, then go to Step 17.
15
INSPECT APP SENSOR CONNECTOR FOR POOR CONNECTION
•  Turn the engine switch off.
•  Disconnect the APP sensor connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 17.
No
Go to the next step.
16
INSPECT APP SENSOR
•  Inspect the APP sensor.
•  Is there any malfunction?
Yes
Replace the APP sensor, then go to the next step.
No
Go to the next step.
17
VERIFY TROUBLESHOOTING OF DTC P0222 COMPLETED
•  Turn the engine switch off.
•  Make sure to reconnect all disconnected connectors.
•  Turn the engine switch to the ON position (Engine off).
•  Clear the DTC from the memory using the M-MDS.
•  Run the vehicle under the FREEZE FRAME DATA stored condition.
•  Is the same DTC present?
Yes
Replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [WL-C, WE-C].)
(See PCM REMOVAL/INSTALLATION (U.K. Specs.) [WL-C, WE-C].)
No
Go to the next step.
18
VERIFY AFTER REPAIR PROCEDURE
•  Perform the “After Repair Procedure“.
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE [WL-C, WE-C (Australian, European (L.H.D. U.K.) specs.)].)
No
DTC troubleshooting completed.
