ENGINE DISASSEMBLY/ASSEMBLY [F2]

id011094800500

1.  Remove the distributor. (See DISTRIBUTOR REMOVAL/INSTALLATION [F2].)

2.  Remove the generator.

3.  Remove the thermostat. (See THERMOSTAT REMOVAL/INSTALLATION [F2].)

4.  Remove the intake-air system. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [F2].)

5.  Remove the exhaust system. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [F2].)

6.  Remove the oil filter. (See OIL FILTER REPLACEMENT [F2] .)

7.  Remove the oil pressure switch. (See OIL PRESSURE INSPECTION [F2].)

8.  Disassemble in the order indicated in the table.

9.  Assemble in the reverse order of disassembly.

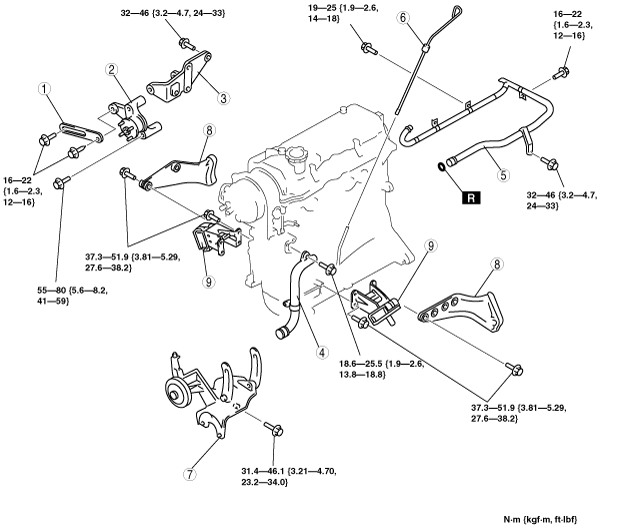

absggw00000036

1	Generator strap
2	Cooling fan bracket
3	Generator bracket
4	Water inlet pipe
5	Water bypass pipe
6	Dipstick
7	P/S oil pump bracket
8	Gusset plate
9	Engine mount
