ENGINE DISASSEMBLY/ASSEMBLY [WLT-1, WLT-2]

id011096800500

1.  Remove the injection nozzle. (See INJECTION NOZZLE REMOVAL/INSTALLATION [WLT-1, WLT-2].)

2.  Remove the intake-air system. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [WLT-1, WLT-2].)

3.  Remove the glow plug. (See GLOW PLUG REMOVAL/INSTALLATION [WLT-1, WLT-2].)

4.  Remove the exhaust system. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [WLT-1, WLT-2].)

5.  Remove the oil cooler. (See OIL COOLER REMOVAL/INSTALLATION [WLT-1, WLT-2, WL-3].)

6.  Disassemble in the order indicated in the table.

7.  Assemble in the reverse order of disassembly.

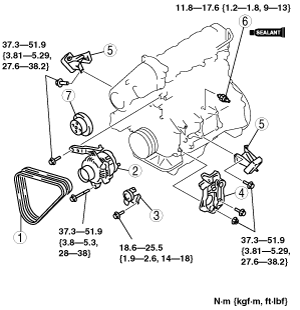

absggw00000847

1	Drive belt
2	Generator (See GENERATOR REMOVAL/INSTALLATION [WLT-1, WLT-2, WL-3, WL-C, WE-C].)
3	Idler
4	A/C compressor bracket
5	Engine mount bracket
6	Oil pressure switch (See OIL PRESSURE INSPECTION [WLT-1, WLT-2, WL-3].)
7	Water pump pulley
