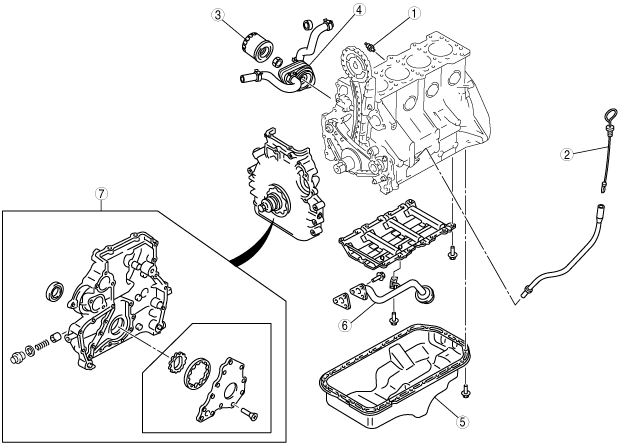

LUBRICATION SYSTEM LOCATION INDEX [G6]

id011195800100

arnffw00000618

1	Oil pressure switch (See OIL PRESSURE INSPECTION [G6].)
2	Dipstick (See ENGINE OIL LEVEL INSPECTION [G6].) (See ENGINE OIL REPLACEMENT [G6].)
3	Oil filter (See OIL FILTER REPLACEMENT [G6].)
4	Oil cooler (If equipped) (See OIL COOLER REMOVAL/INSTALLATION [G6].)
5	Oil pan (See OIL PAN REMOVAL/INSTALLATION [G6].)
6	Oil strainer (See OIL PUMP REMOVAL/INSTALLATION [G6].)
7	Oil pump component (See OIL PUMP REMOVAL/INSTALLATION [G6].) (See OIL PUMP INSPECTION [G6].)
