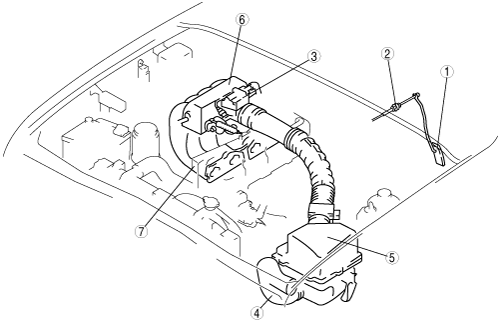

INTAKE-AIR SYSTEM LOCATION INDEX [F2]

id011394801700

absggw00000258

1	Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [F2].)
2	Accelerator cable (See ACCELERATOR CABLE INSPECTION/ADJUSTMENT [F2].)
3	BAC valve (See BYPASS AIR CONTROL (BAC) VALVE REMOVAL/INSTALLATION [F2].) (See AIR VALVE INSPECTION [F2].) (See IDLE AIR CONTROL (IAC) VALVE INSPECTION [F2].)
4	Fresh-air duct (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [F2].)
5	Air cleaner (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [F2].)
6	Dynamic chamber (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [F2].)
7	Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [F2].)
