INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [WL-3]
id0113a9801900
1. Disconnect the negative battery cable.
2. Remove the front mud guard. (See FRONT FENDER PANEL REMOVAL/INSTALLATION.)
3. Remove the injection pipe. (See INJECTION NOZZLE REMOVAL/INSTALLATION [WL-3].)
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
Step 1

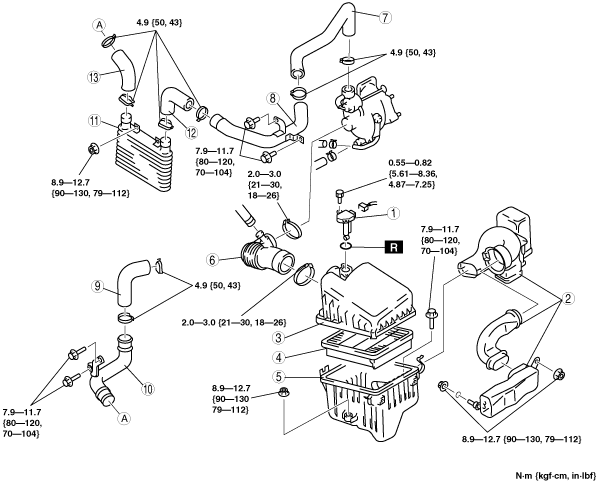

dbg113awb302
|
|
1
|
MAF sensor/IAT sensor No.2
|
|
2
|
Fresh-air duct
|
|
3
|
Air cleaner cover
|
|
4
|
Air cleaner element
|
|
5
|
Air cleaner case
|
|
6
|
Air intake hose
|
|
7
|
Turbocharger air outlet hose
|
|
8
|
Turbocharger air outlet pipe
|
|
9
|
Charge air cooler air outlet hose
|
|
10
|
Charge air cooler air outlet pipe
|
|
11
|
Charge air cooler
|
|
12
|
Charge air cooler inlet hose
|
|
13
|
Charge air cooler outlet hose
|
dbg113awb307
|
|
1
|
EGR solenoid valve (vent)
|
|
2
|
EGR solenoid valve (vacuum)
|
|
3
|
EGR control solenoid valve
|
|
4
|
Bracket No.1
|
|
5
|
Bracket No.2
|
|
6
|
Bracket No.3
|
|
7
|
Bracket No.4
|
|
8
|
Air intake pipe
|
|
9
|
IAT sensor No.1
|
|
10
|
Intake manifold
|
Air Intake Pipe Removal Note
1. Remove the EGR valve and EGR pipe before removing the air intake pipe. (See EGR SYSTEM REMOVAL/INSTALLATION [WL-3].)
