FUEL SYSTEM LOCATION INDEX [WL-3]

id0114b5800100

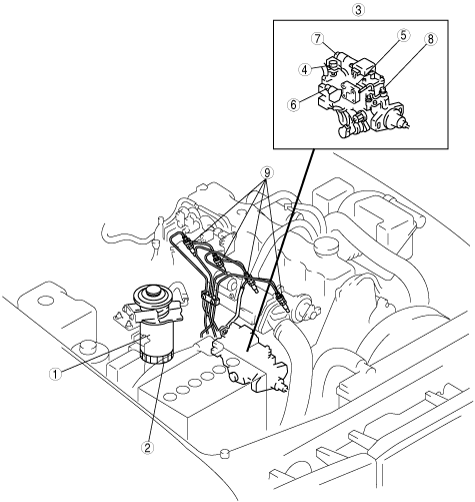

Engine Room Side

dbg114awb850

1	Fuel filter (See FUEL FILTER REMOVAL/INSTALLATION [WL-3].) (See SEDIMENTOR WATER DRAINING [WL-3].)
2	Sedimentor switch (See SEDIMENTOR SWITCH INSPECTION [WL-3].)
3	Fuel injection pump (See FUEL INJECTION PUMP REMOVAL/INSTALLATION [WL-3].) (See FUEL INJECTION PUMP INSPECTION [WL-3].)
4	Fuel cut solenoid valve (See FUEL CUT SOLENOID VALVE REMOVAL/INSTALLATION [WL-3].) (See FUEL CUT SOLENOID VALVE INSPECTION [WL-3].)
5	Electronic governor (See ELECTRONIC GOVERNOR INSPECTION [WL-3].)
6	TCV (See TIMER CONTROL VALVE (TCV) INSPECTION [WL-3].)
7	Overflow valve
8	Fuel-inlet filter (See FUEL-INLET FILTER REMOVAL/INSTALLATION [WL-3].)
9	Injection nozzle (See INJECTION NOZZLE REMOVAL/INSTALLATION [WL-3].) (See INJECTION NOZZLE DISASSEMBLY/ASSEMBLY [WL-3].) (See INJECTION NOZZLE INSPECTION [WL-3].)

Fuel Tank Side

Double cab, Freestyle cab

dbg114awb302

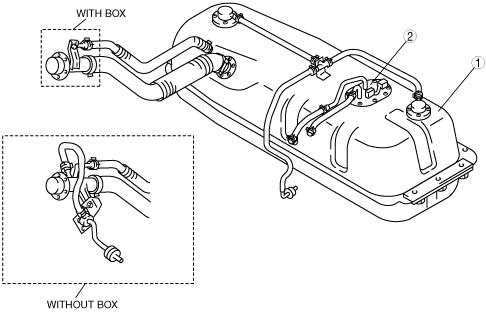

Regular cab

dbg114awb301

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [WL-3].) (See FUEL TANK INSPECTION [WL-3].)
2	Fuel gauge sender unit
