POWER BRAKE UNIT REMOVAL/INSTALLATION
id041100801800
1. Remove the master cylinder. (See MASTER CYLINDER REMOVAL/INSTALLATION [MT].) (See MASTER CYLINDER REMOVAL/INSTALLATION [AT].)
2. For R.H.D. with 4W-ABS, disconnect all the ABS HU/CM brake pipes shown in the figure. (See ABS HU/CM REMOVAL/INSTALLATION.)
absggw00000716
|
3. For R.H.D. with 4W-ABS, remove the brake pipe (ABS HU/CM—master cylinder).

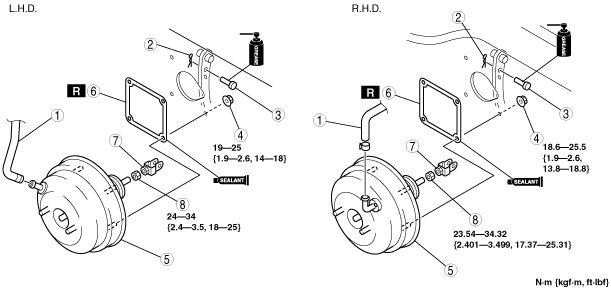

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
arnffw00000331
|
|
1
|
Vacuum hose
|
|
2
|
Snap pin
|
|
3
|
Clevis pin
|
|
4
|
Nut
|
|
5
|
Power brake unit
|
|
6
|
Gasket
|
|
7
|
Fork
|
|
8
|
Nut
|
