CLUTCH PEDAL DISASSEMBLY/ASSEMBLY

id051000802500

1.  Remove the accelerator pedal component. (See ACCELERATOR PEDAL COMPONENT REMOVAL/INSTALLATION [WL-3].) (See ACCELERATOR PEDAL COMPONENT REMOVAL/INSTALLATION [WL-C, WE-C].)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

4.  Inspect and adjust the clutch pedal. (See CLUTCH PEDAL ADJUSTMENT.)

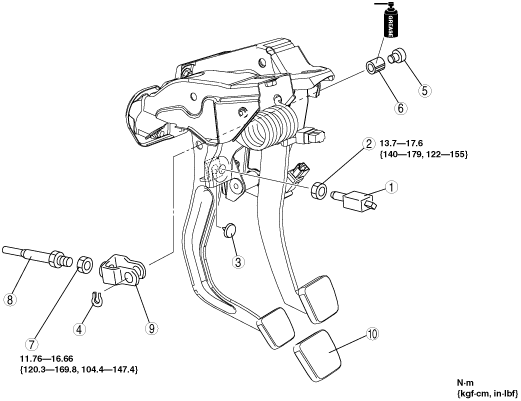

dbg510zwb015

1	Clutch switch
2	Nut
3	Stopper rubber
4	Retaining ring
5	Pin
6	Bush
7	Nut
8	Push rod
9	Fork
10	Pedal pad
