TRANSMISSION REMOVAL/INSTALLATION [R15M-D]

id051104246700

1.  Disconnect the negative battery cable.

2.  Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

3.  Remove the starter. (See STARTER REMOVAL/INSTALLATION [F2].) (See STARTER REMOVAL/INSTALLATION [G6].) (See STARTER REMOVAL/INSTALLATION [WLT-1, WLT-2, WL-3, WL-C, WE-C])

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

6.  Perform the "INSPECTION AFTER TRANSMISSION INSTALLATION", and verify that there is no abnormality.

(See INSPECTION AFTER TRANSMISSION INSTALLATION [R15M-D].)

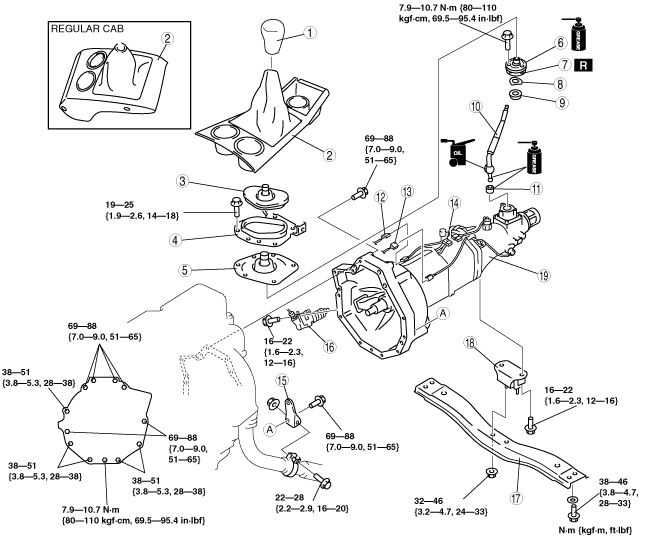

F2

arnffw00001343

1	Shift lever knob
2	Console
3	Dust boot
4	Change boot upper plate
5	Boot
6	Dust boot
7	Gasket
8	Wave washer
9	Change bush
10	Change lever
11	Change seat
12	Vehicle speed sensor connector
13	Back-up light switch connector
14	Neutral switch connector
15	Front pipe bracket
16	Clutch release cylinder
17	Crossmember (See Crossmember Removal Note.)
18	Transmission lower mount
19	Transmission (See Transmission Removal Note.) (See Transmission Installation Note.)

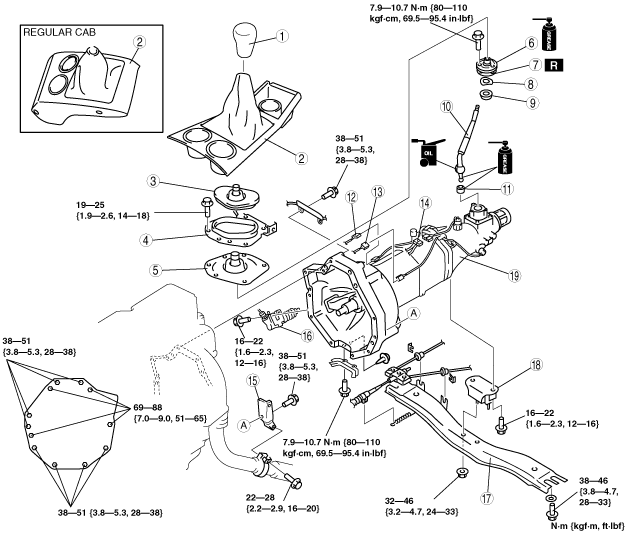

G6

arnffw00001344

1	Shift lever knob
2	Console
3	Dust boot
4	Change boot upper plate
5	Boot
6	Dust boot
7	Gasket
8	Wave washer
9	Change bush
10	Change lever
11	Change seat
12	Vehicle speed sensor connector
13	Back-up light switch connector
14	Neutral switch connector
15	Front pipe bracket
16	Clutch release cylinder
17	Crossmember (See Crossmember Removal Note.)
18	Transmission lower mount
19	Transmission (See Transmission Removal Note.) (See Transmission Installation Note.)

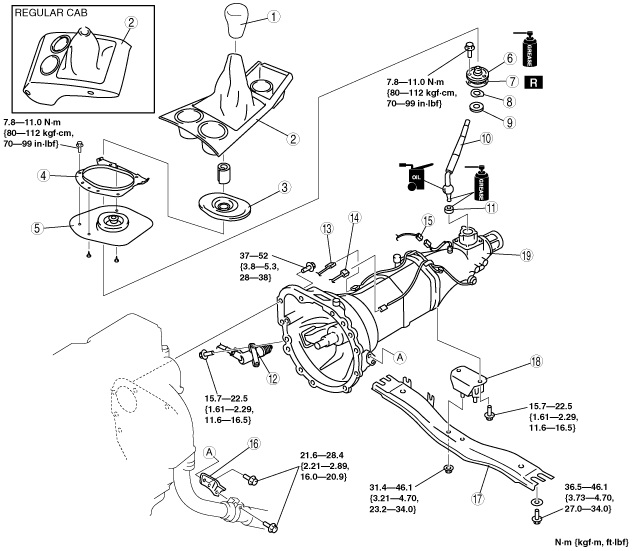

WLT-1, WLT-2, WL-3

absggw00001241

1	Shift lever knob
2	Console (See CONSOLE REMOVAL/INSTALLATION.)
3	Dust boot
4	Change boot upper plate
5	Boot
6	Dust boot
7	Gasket
8	Wave washer
9	Change bush
10	Shift lever
11	Change seat
12	Clutch release cylinder
13	Vehicle speed sensor connector
14	Back-up light switch connector
15	Neutral switch connector
16	Front pipe bracket
17	Crossmember
18	Transmission mount rubber
19	Transmission (See Transmission Removal Note.) (See Transmission Installation Note.)

Crossmember Removal Note

1.  Securely support the transmission on a transmission jack, then remove the crossmember.

Transmission Removal Note

Warning

•  Remove the transmission carefully, holding it steady. If the transmission falls it could be damaged or cause injury.

1.  Support the transmission securely using a transmission jack.

absggw00001242

2.  Remove the transmission installation bolts.

3.  Remove the transmission.

Transmission Installation Note

1.  Shift to any gear position.

2.  Install the SST to the main shaft.

absggw00001243

Warning

•  Install the transmission carefully, holding it steady. If the transmission falls it could be damaged or cause injury.

3.  Place the transmission on the transmission jack and raise it.

absggw00001242

Note

•  Slowly rotate the SST to engage the clutch with the main drive gear spline, and install the transmission.

4.  Install the transmission.

5.  Tighten the transmission installation bolts.
