TRANSMISSION AND TRANSFER REMOVAL/INSTALLATION [R15MX-D]

id051113695700

1.  Disconnect the negative battery cable.

2.  Drain the transmission and transfer oil into a container.

3.  Remove the front and rear propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

4.  Remove the front pipe. (G6 engine) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [G6].)

5.  Remove the starter. (See STARTER REMOVAL/INSTALLATION [G6].) (See STARTER REMOVAL/INSTALLATION [WLT-1, WLT-2, WL-3, WL-C, WE-C].)

6.  Remove in the order indicated in the table.

7.  Install in the reverse order of removal.

8.  Add the specified type and amount of transmission and transfer oil. (See TRANSMISSION OIL REPLACEMENT [R15M-D, R15MX-D].) (See TRANSFER OIL REPLACEMENT [R15MX-D].)

9.  Warm up the engine and transmission, inspect for oil leakage, and verify the transmission operation.

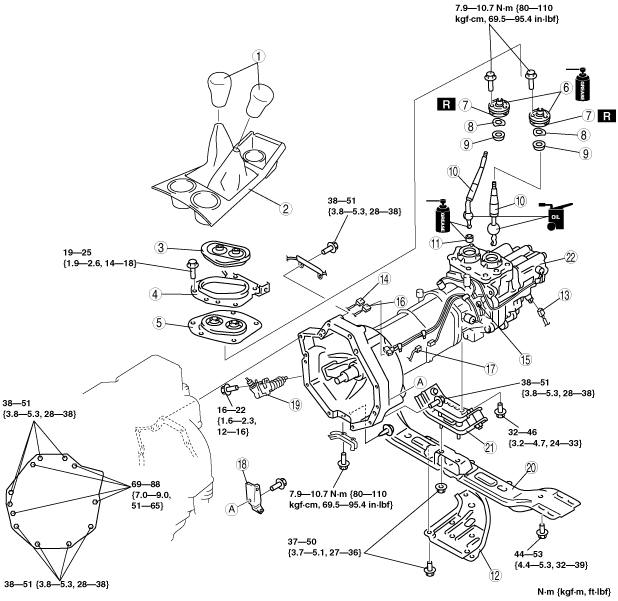

G6

arnffw00001347

1	Shift lever knob
2	Console
3	Dust boot
4	Change boot upper mount
5	Boot
6	Dust boot
7	Gasket
8	Wave washer
9	Change bush
10	Change lever
11	Change seat
12	Transfer under cover
13	VSS connector
14	Back-up light switch connector
15	Neutral switch connector
16	4x4 indicator switch connector
17	Transfer neutral switch connector
18	Front pipe bracket
19	Clutch release cylinder
20	Crossmember
21	Transmission lower mount
22	Transmission and transfer (See Transmission and Transfer Removal Note.) (See Transmission and Transfer Installation Note.)

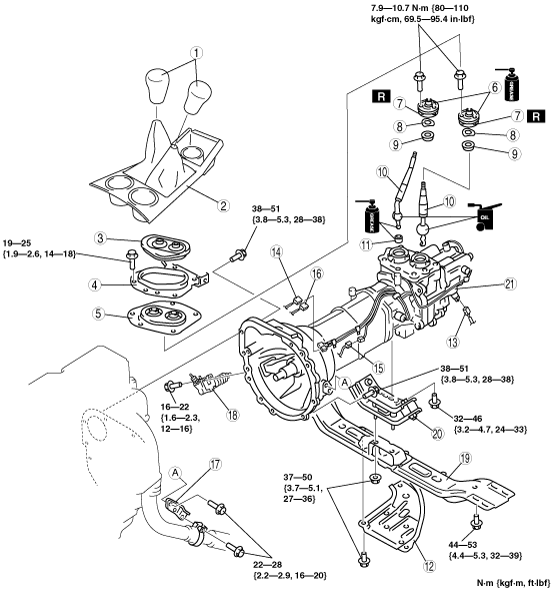

WLT-1,WLT-2

arnffw00001348

1	Shift lever knob
2	Console
3	Dust boot
4	Change boot upper mount
5	Boot
6	Dust boot
7	Gasket
8	Wave washer
9	Change bush
10	Change lever
11	Change seat
12	Transfer under cover
13	VSS connector
14	Back-up light switch connector
15	Transfer neutral switch connector
16	4x4 indicator switch connector
17	Front pipe bracket
18	Clutch release cylinder
19	Crossmember
20	Transmission lower mount
21	Transmission and transfer (See Transmission and Transfer Removal Note.) (See Transmission and Transfer Installation Note.)

Transmission and Transfer Removal Note

Warning

•  Do not allow the transmission to fall from the transmission jack.

1.  Maintain the stability of the transmission and transfer while removing them.

arnffw00001399

Transmission and Transfer Installation Note

Warning

•  A transmission that is not securely supported on a transmission jack is dangerous.It can slip or fall, causing serious injury.Never work without the transmission jack until crossmember installation is finished.

1.  Place the transmission and transfer on a transmission jack.

2.  Maintain the stability of the transmission and transfer while installing them.

arnffw00001399
