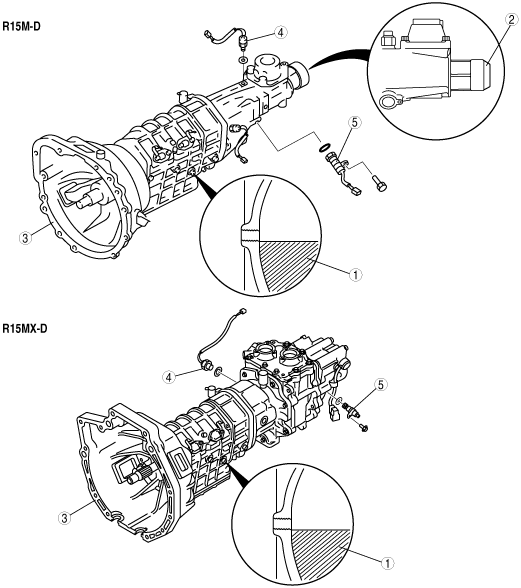

MANUAL TRANSMISSION LOCATION INDEX [R15M-D, R15MX-D]

id051115247200

absggw00001246

1	Transmission oil (See TRANSMISSION OIL INSPECTION [R15M-D, R15MX-D].) (See TRANSMISSION OIL REPLACEMENT [R15M-D, R15MX-D].)
2	Oil seal (extension housing) (See OIL SEAL (EXTENSION HOUSING) REPLACEMENT [R15M-D].)
3	Transmission (See TRANSMISSION REMOVAL/INSTALLATION [R15M-D].) (See TRANSMISSION AND TRANSFER REMOVAL/INSTALLATION [R15MX-D].) (See INSPECTION AFTER TRANSMISSION INSTALLATION [R15M-D].) (See INSPECTION AFTER TRANSMISSION AND TRANSFER INSTALLATION [R15MX-D].)
4	Neutral switch (See NEUTRAL SWITCH REMOVAL/INSTALLATION [R15M-D].) (See NEUTRAL SWITCH REMOVAL/INSTALLATION [R15MX-D].)
5	Vehicle speed sensor (VSS) (See VEHICLE SPEED SENSOR (VSS) INSPECTION [R15M-D].) (See VEHICLE SPEED SENSOR (VSS) REMOVAL/INSTALLATION [R15M-D].)
