DTC U200D:11 [FULL-AUTO AIR CONDITIONER]

id0702c1736600

System malfunction location	•  Climate control unit circuit voltage (+5V) circuit short to ground
Detection condition	•  Malfunction in wiring harness between climate control unit circuit voltage (+5V) and each sensor/actuator
Fail-safe	—
Possible cause	•  Connector or terminal malfunction •  Each sensor/actuator malfunction •  Short to ground in wiring harness between climate control unit and air mix actuator •  Short to ground in wiring harness between climate control unit and airflow mode actuator •  Short to ground in wiring harness between climate control unit and solar radiation sensor •  Short to ground in wiring harness between climate control unit and evaporator temperature sensor •  Short to ground in wiring harness between climate control unit and cabin temperature sensor •  Short to ground in wiring harness between climate control unit and heater core temperature sensor (Applied VIN (assumed): JMZ KE19760# 100001—200006, JMZ KE19780# 100001—200006, JMZ KE89380# 200001—200006, JMZ KE89780# 100001—200006, JMZ KEC9760# 100001—158744, JMZ KEF9160# 100001—158744, JMZ KEF9180# 100001—158744, JMZ KEK9760# 100001—200006, JMZ KEK9780# 100001—200006, JMZ KEN9160# 100001—158744, JMZ KEN9180# 100001—158744, JMZ KEN9260# 100001—158744, JMZ KEN9280# 100001—158744, JM0 KE102100 100001—200053, JM0 KE103100 200001—200053, JM0 KE107100 100001—200053, JM8 KE2W7**# 100001—202826, JM8 KE4W2**# 200001—202826, JM8 KE4W3**# 200001—202826, JM8 KE4W7**# 100001—202826, JMZ KEC978Z# 100001—202826, JMZ KEK928Z# 200001—202826, JMZ KEK938Z# 200001—202826, JMZ KEK978Z# 100001—202826, KE1071 100001—202826, JM6 KE1021*0 200001—202818, JM6 KE1031*0 200001—202818, JM6 KE1071*0 100001—202818) •  Climate control unit malfunction

Diagnostic Procedure

STEP	INSPECTION		ACTION
1	VERIFY CLIMATE CONTROL UNIT CONNECTOR CONDITION •  Switch the ignition off. •  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Disconnect the climate control unit connectors. •  Inspect the connector and terminals (corrosion, damage, pin disconnection). •  Are the connector and terminals normal?	Yes	Go to the next step.
		No	Repair/replace the malfunctioning vehicle wiring harness, connector, or terminal. After repair procedure, go to the next step.
2	VERIFY CONNECTOR CONDITION •  Disconnect the following each sensor/actuator connectors. ―  Air mix actuator (See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) ―  Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) ―  Solar radiation sensor (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) ―  Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) ―  Cabin temperature sensor (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) ―  Heater core temperature sensor*1 (See HEATER CORE TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) •  Inspect the connector and terminals (corrosion, damage, pin disconnection). •  Are the connector and terminals normal?	Yes	Go to the next step.
		No	Replace the malfunctioning part. After replace procedure, go to the next step.
3	INSPECT EACH SENSOR/ACTUATOR •  Inspect the following each sensor/actuator connectors. ―  Air mix actuator (See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].) ―  Airflow mode actuator (See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].) ―  Solar radiation sensor (See SOLAR RADIATION SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].) ―  Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].) ―  Cabin temperature sensor (See CABIN TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].) ―  Heater core temperature sensor*1 (See HEATER CORE TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].) •  Is it normal?	Yes	Go to the next step.
		No	Replace the malfunctioning sensor/actuator. After repair procedure, go to the next step.

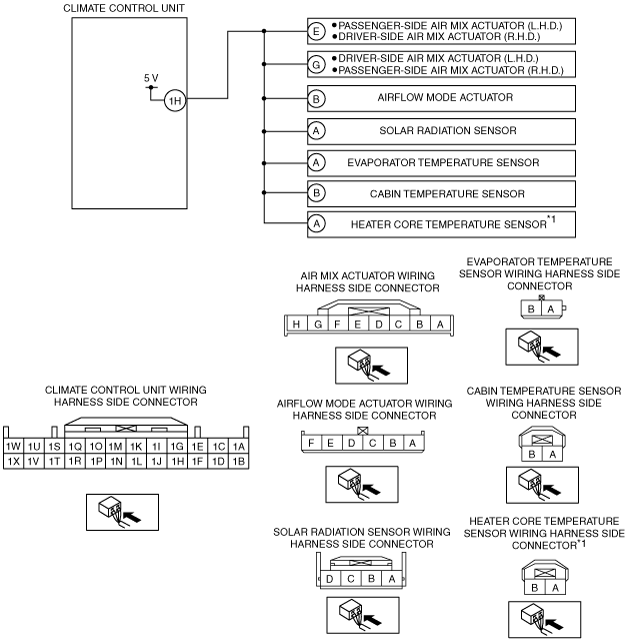

4	INSPECT EACH SENSOR/ACTUATOR CIRCUIT FOR SHORT TO GROUND •  Inspect for continuity between the following terminals (wiring harness-side) and body ground: ―  Climate control unit 1H •  Is there continuity?	Yes	Repair the wiring harness. Go to the next step.
		No	Go to the next step.
5	VERIFY THAT SAME DTC IS NOT OUTPUT AGAIN •  Reconnect the disconnected connectors. •  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Clear the past malfunction from memory. •  Verify DTCs. •  Is DTC U200D:11 output?	Yes	Repeat the inspection from Step 1. •  If the malfunction does not recur, go to the next step. •  If the malfunction recurs, replace the climate control unit. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) Go to the next step.
		No	Go to the next step.
6	VERIFY THAT NO OTHER DTCs ARE PRESENT •  Verify other DTCs displayed. •  Are any other DTCs output?	Yes	Perform the corresponding DTC inspection.
		No	DTC troubleshooting completed.
