COOLING SYSTEM [SKYACTIV-D 2.2]

id0112s6002800

Outline

• Pump efficiency has been improved by changing the water pump impeller to a shroud impeller.

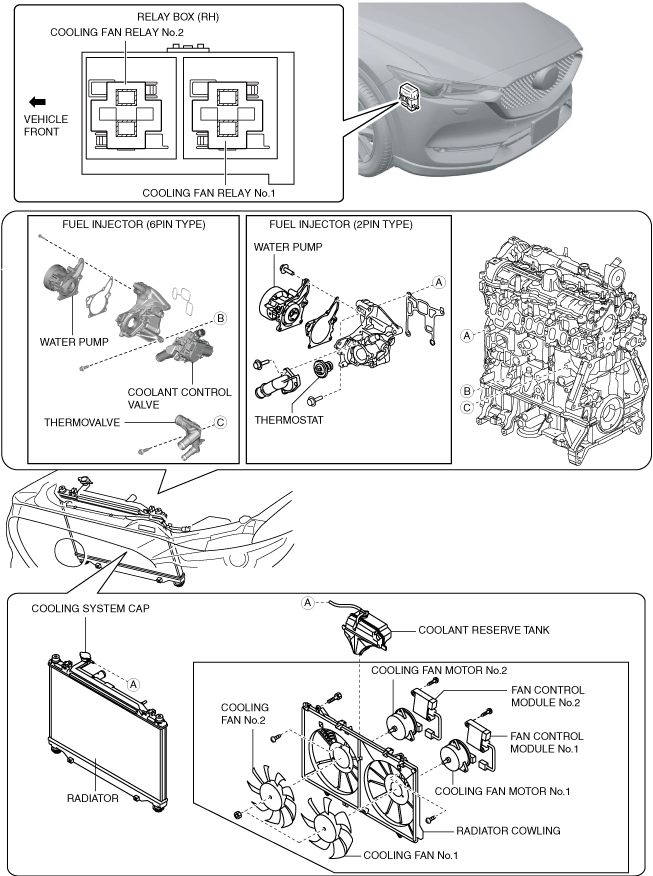

Structural View

ac5wzn00004986

Flow Chart

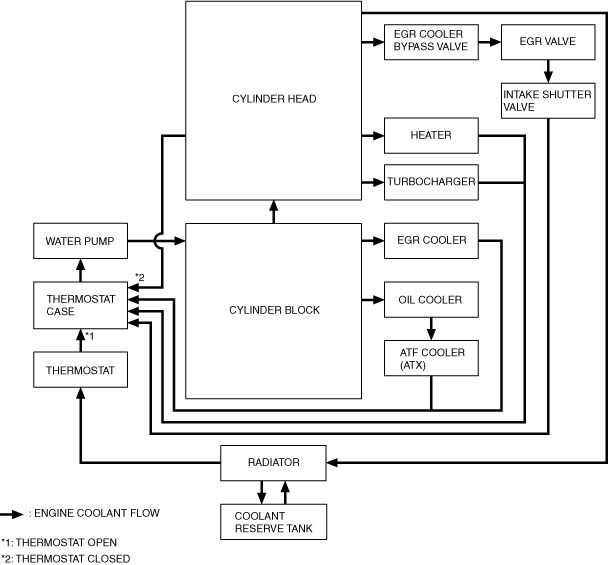

Fuel injector (2pin type)

am6zzn00003125

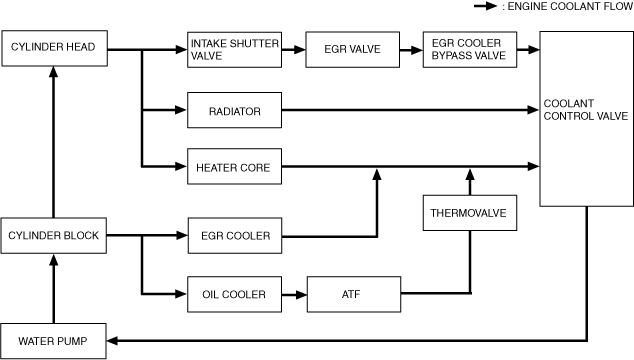

Fuel injector (6pin type)

ac5wzn00005105

Structure

• Consists of the following parts:

Thermostat	(See THERMOSTAT [SKYACTIV-D 2.2].)
Water pump	(See WATER PUMP [SKYACTIV-D 2.2].)
Cooling fan relay	(See COOLING FAN RELAY [SKYACTIV-D 2.2].)
Coolant control valve	(See COOLANT CONTROL VALVE [SKYACTIV-D 2.2].)
Cooling fan component	(See COOLING FAN COMPONENT [SKYACTIV-D 2.2].)
Fan control module	(See FAN CONTROL MODULE [SKYACTIV-D 2.2].)
Cooling system cap	(See COOLING SYSTEM CAP [SKYACTIV-D 2.2].)
Radiator	(See RADIATOR [SKYACTIV-D 2.2].)
