FUEL SYSTEM [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0114m1002600

Outline

Structural View

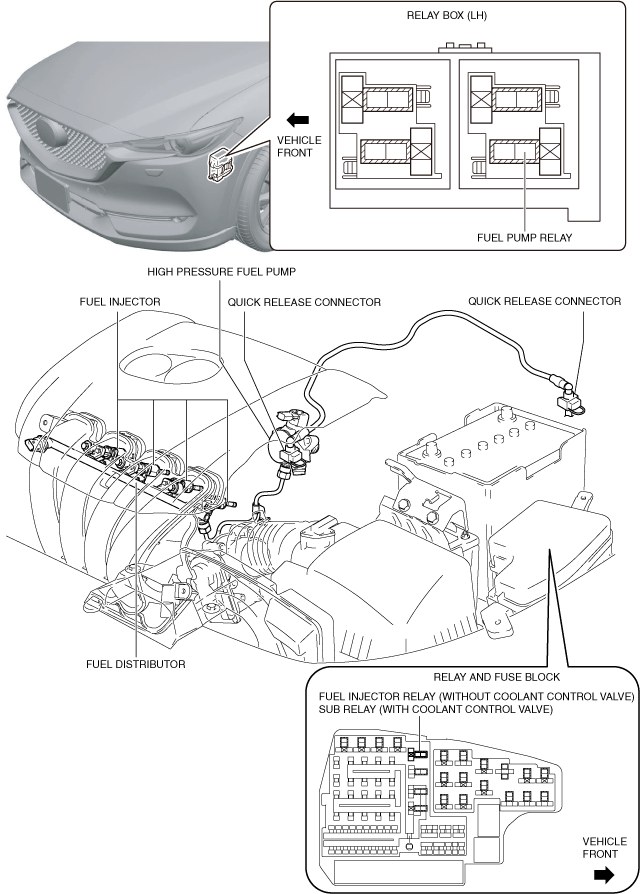

Engine compartment side

ac5uun00002437

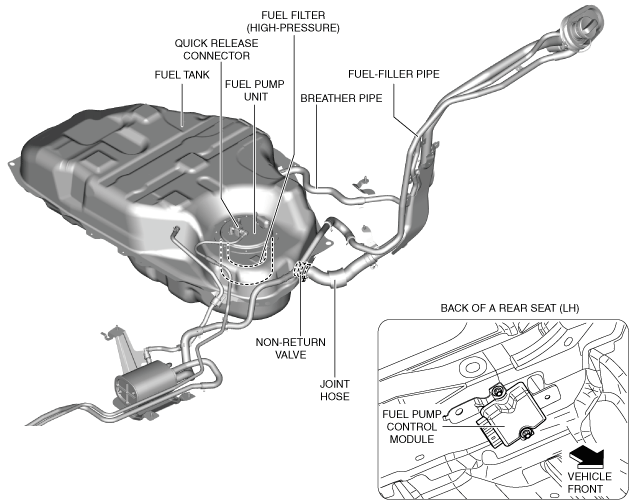

Fuel tank side

2WD

ac5wzn00004899

4WD

ac5wzn00004900

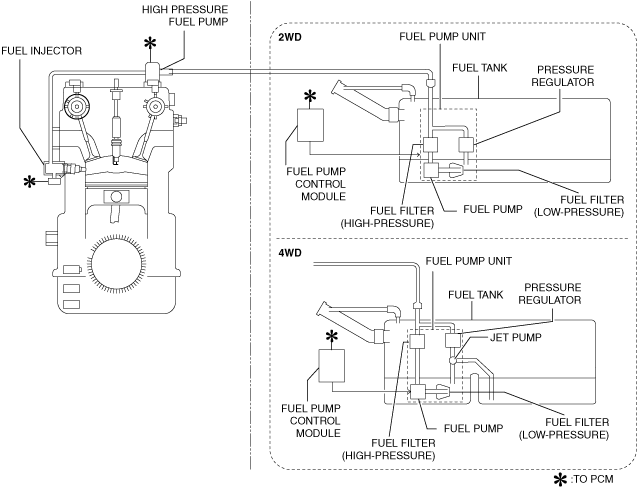

System Diagram

ac5wzn00003836

Structure

Part/System name		Reference
Return-less fuel system (See RETURNLESS FUEL SYSTEM [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)	Fuel pump unit	(See FUEL PUMP UNIT [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Direct fuel injection system (See DIRECT FUEL INJECTION SYSTEM [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)	High pressure fuel pump	(See HIGH PRESSURE FUEL PUMP [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
	Fuel distributor	(See FUEL DISTRIBUTOR [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
	Fuel injector	(See FUEL INJECTOR [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Fuel tank		(See FUEL TANK [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Non-return valve		(See NON-RETURN VALVE [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Fuel pump relay		(See FUEL PUMP RELAY [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Fuel injector relay (Without coolant control valve)		(See FUEL INJECTOR RELAY [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Sub relay (With coolant control valve)		(See SUB RELAY [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Fuel pump control module		(See FUEL PUMP CONTROL MODULE [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Quick connector (fuel system)		(See QUICK RELEASE (FUEL SYSTEM) CONNECTOR [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

Specification

Item			Specification
Fuel injector	Type		High resistance
	Fuel supply method		Top-feed
	Drive types		Electronic
Pressure regulator control pressure	(kPa {kgf/cm2, psi})		Approx. 430 {4.38, 62.4}
Fuel pump type			Electric
Fuel tank capacity	(L {US gal, Imp gal})	2WD	56.0 {14.8, 12.3}
		4WD	58.0 {15.3, 12.8}

Fuel type

Fuel	Research Octane Number	Country
Premium unleaded fuel (Conforming to EN 228 and within E10)*1	95 or above	New Caledonia, Turkey, Azerbaijan, Armenia, Georgia, Kazakhstan, Canary Islands, Reunion, Morocco, Austria, Greece, Italy, Switzerland, Belgium, Denmark, Finland, Norway, Portugal, Spain, Sweden, Hungary, Germany, Poland, Bulgaria, Croatia, Slovenia, Luxembourg, Slovakia, Latvia, Lithuania, Russia, Belarus, France, Ukraine, Czech, Estonia, Faeroe, Iceland, Romania, The Netherlands, Macedonia, Bosnia and Herzegovina, Serbia, Montenegro, Albania, Moldova, Martinique, F.Guiana, Guadeloupe, Cyprus, Malta, Ireland, UK, Taiwan, Tahiti, Vanuatu, Iran, UAE, Lebanon, Israel, Algeria, Libya, Tunisia, Madagascar, Guatemala, Bolivia, Uruguay, Honduras, Nicaragua, Aruba, St. Martin, Singapore, Hong Kong, Malaysia, Brunei, Macau, Mauritius, South Africa, Jamaica, Barbados, Grenada, ST. Lucia, ST. Vincent, Antigua, Suriname, Mongolia, Seychelles, Namibia, Botswana, Swaziland, Lesoto, Liechtenstein, Andorra, Monaco, Vatican, San Marino
Regular unleaded fuel (Conforming to Fuel Quality Standards Act 2000)*2	92 or above	Egypt, Myanmar
	90 or above	The Philippines, Marshall Islands, Ustt*3, Kuwait, Oman, Qatar, Saudi Arabia, Syria, Bahrain, Jordan, Nigeria, Angola, Chile, El Salvador, Costa Rica, Ecuador, Haiti, Colombia, Dominican Republic (LHD), Panama, Peru, B.Virgin, Curacao, Indonesia, Nepal, Sri Lanka, Fiji, Papua New Guinea, Kenya, Zimbabwe, Trinidad and Tobago, Commonwealth of Dominica, Cambodia, Iraq, Ivory Coast, Australia, New zeland, Laos, Cameroon, Burundi, Gabon, Ghana, Tanzania, Mozambique
