CHARGING SYSTEM WARNING INDICATION/CHARGING SYSTEM WARNING LIGHT [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0117m1302500

Purpose, Function

• Warns the driver of a charging system malfunction.

― For details on DTCs which illuminate the charging system warning indication/charging system warning light, refer to ON-BOARD DIAGNOSTIC SYSTEM. (See ON-BOARD DIAGNOSTIC SYSTEM [PCM (WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].)

Construction

• The charging system warning indication/charging system warning light is built into the instrument cluster. (See INSTRUMENT CLUSTER.)

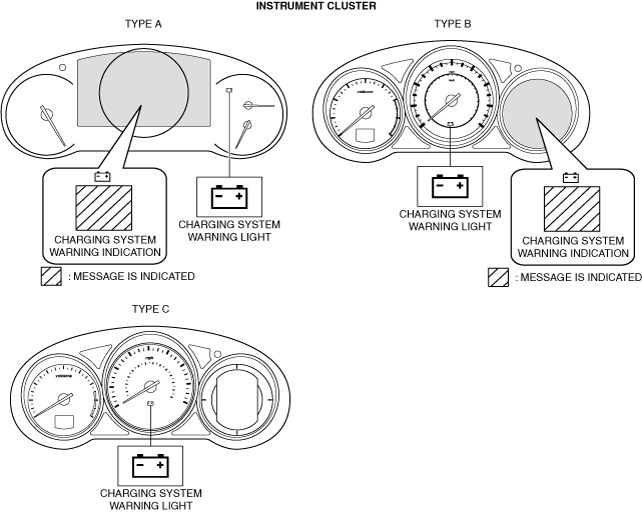

am6xun00004602

Operation

• Illuminates when a malfunction occurs in the charging system and a DTC is stored in the PCM.

• For vehicles with center display, a warning message in the center display is displayed when the charging system warning indication/charging system warning light is turned on. For the message content and verification method, refer to the CENTER DISPLAY. (See CENTER DISPLAY [WITH CENTER DISPLAY].)

• For vehicles with active driving display, a warning message in the active driving display is displayed when the charging system warning indication/charging system warning light is turned on. For the message content and verification method, refer to the ACTIVE DRIVING DISPLAY. (See ACTIVE DRIVING DISPLAY.)
