INSTRUMENT CLUSTER

id092200018500

Outline

Type A

―  Warning beep

―  Warning light/Indicator light

―  Speedometer

―  Tachometer

―  Fuel gauge

―  Odometer/tripmeter

―  Panel light

―  Trip computer system

―  LCD

―  Multi-information display

―  Engine coolant temperature gauge

―  Ambient temperature display

―  Active driving display

Type B

―  Warning beep

―  Warning light/Indicator light

―  Analog speedometer

―  Analog tachometer

―  Fuel gauge

―  Odometer/tripmeter

―  Panel light

―  Trip computer system

―  LCD

―  Multi-information display

―  Engine coolant temperature gauge

―  Ambient temperature display

Type C

―  Warning beep

―  Warning light/Indicator light

―  Analog speedometer

―  Analog tachometer

―  Fuel gauge

―  Odometer/tripmeter

―  Panel light

―  Trip computer system

―  LCD

―  Engine coolant temperature gauge

―  Ambient temperature display

Functions

―  Vehicle speed (speedometer display function)

―  Engine speed (tachometer display function)

―  Remaining fuel quantity (fuel gauge display function)

―  Traveled distance (odometer/tripmeter display function)

―  Instantaneous fuel economy, average fuel economy, remaining distance to empty, direction of vehicle travel (trip computer calculation function)

―  Warning/indicator light (warning/indicator light turn on/flash function)

―  Warning/indicator message (With multi-information display)

Speedometer display function

•  The instrument cluster controls the speedometer based on the vehicle speed signal sent via CAN communication from the PCM, and displays the current vehicle speed. For details on the speedometer, refer to [SPEEDOMETER]. (See SPEEDOMETER.)

Tachometer display function

•  The instrument cluster controls the tachometer based on the engine speed signal sent via CAN communication from the PCM, and displays the current engine speed. For details on the tachometer, refer to [TACHOMETER]. (See TACHOMETER.)

Fuel gauge display function

•  The instrument cluster displays the remaining fuel quantity based on the fuel gauge sender unit voltage signal sent via CAN communication from the rear body control module (RBCM), and the vehicle speed and fuel injection amount signals sent via CAN communication from the PCM. For details on the remaining fuel quantity, refer to [FUEL GAUGE]. (See FUEL GAUGE.)

Odometer/tripmeter display function

•  The instrument cluster displays the total traveled distance/traveled distance over a specific interval based on the travel distance signal sent via CAN communication from the PCM. For details on the odometer/tripmeter, refer to [ODOMETER/TRIPMETER]. (See ODOMETER/TRIPMETER.)

Trip computer calculation function

•  The instrument cluster calculates the instantaneous fuel economy, average fuel economy, and remaining travel distance to empty, and displays the calculated result and the direction of travel on the multi-information display (With multi-information display)/LCD (Without multi-information display) in the instrument cluster. For details on the trip computer, refer to [TRIP COMPUTER INFORMATION SYSTEM]. (See TRIP COMPUTER INFORMATION SYSTEM.)

Warning/indicator light turn on/flash function, message/system operation status display function

•  The instrument cluster turns on or flashes the warning indicator lights to notify the driver of the vehicle system status.

•  The types of warning/indicator lights are as follows: For details on each warning/indicator light, refer to each reference.

•  A warning message in the center display is displayed when the warning/indicator light is turned on or flashed. For the display content, refer to [CENTER DISPLAY]. (See CENTER DISPLAY [WITH CENTER DISPLAY].)

Type A

ac5wzn00005200

No.	Warning light/Indicator light	Name	Message is displayed in multi-information display when warning/indicator light turns on/flashes	Message is displayed in center display when warning/indicator light turns on/flashes	Comment	Warning/indicator light turned on when ignition is switched ON (engine off or on)	Reference
1		Brake system warning light	×	×	—	×	(See BRAKE SYSTEM/ABS WARNING LIGHT.)
2		Air bag/seat belt pre-tensioner system warning light	—	×	—	—	(See AIR BAG/SEAT BELT PRE-TENSIONER SYSTEM WARNING LIGHT [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG/SEAT BELT PRE-TENSIONER SYSTEM WARNING LIGHT [STANDARD DEPLOYMENT CONTROL SYSTEM].)
3		Electric parking brake indicator light	×	—	—	—	(See ELECTRIC PARKING BRAKE INDICATOR LIGHT, ELECTRIC PARKING BRAKE WARNING LIGHT.)
4		Engine oil warning light	×	×	—	×	(See ENGINE OIL WARNING INDICATION/ENGINE OIL WARNING LIGHT [SKYACTIV-G 2.5T].) (See ENGINE OIL WARNING INDICATION/ENGINE OIL WARNING LIGHT [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See ENGINE OIL WARNING INDICATION/ENGINE OIL WARNING LIGHT [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See ENGINE OIL WARNING INDICATION/ENGINE OIL WARNING LIGHT [SKYACTIV-D 2.2].)
5		Direction indicator/hazard warning indicator lights	—	—	—	—	(See DIRECTION INDICATOR/HAZARD WARNING INDICATOR LIGHTS.)
6		Selective catalytic reduction (SCR) system warning light	×	×	SKYACTIV-D 2.2	—	(See SCR SYSTEM WARNING INDICATION/SCR SYSTEM WARNING LIGHT [SKYACTIV-D 2.2].)
7		Engine oil level warning light	×	×	With engine oil level sensor	—	(See ENGINE OIL LEVEL WARNING INDICATION/ENGINE OIL LEVEL WARNING LIGHT [SKYACTIV-G 2.5T].) (See ENGINE OIL LEVEL WARNING INDICATION/ENGINE OIL LEVEL WARNING LIGHT [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See ENGINE OIL LEVEL WARNING INDICATION/ENGINE OIL LEVEL WARNING LIGHT [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See ENGINE OIL LEVEL WARNING INDICATION/ENGINE OIL LEVEL WARNING LIGHT [SKYACTIV-D 2.2].)
8		i-stop warning light (amber)/i-stop indicator light (green)	—	×	With i-stop system	×	(See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-G 2.5T].) (See i-stop WARNING LIGHT (AMBER) [SKYACTIV-G 2.5T].)
9		ABS warning light	—	×	—	×	(See BRAKE SYSTEM/ABS WARNING LIGHT.)
10		Seat belt warning light	—	—	—	—	(See SEAT BELT WARNING LIGHT.)
11		Charging system warning light	×	×	—	×	(See CHARGING SYSTEM WARNING INDICATION/CHARGING SYSTEM WARNING LIGHT [SKYACTIV-D 2.2].) (See CHARGING SYSTEM WARNING INDICATION/CHARGING SYSTEM WARNING LIGHT [SKYACTIV-G 2.5T].) (See CHARGING SYSTEM WARNING INDICATION/CHARGING SYSTEM WARNING LIGHT [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See CHARGING SYSTEM WARNING INDICATION/CHARGING SYSTEM WARNING LIGHT [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
12		Security indicator light	—	—	—	×	(See SECURITY INDICATOR LIGHT.)
13		Door-ajar warning light	—	—	—	—	(See DOOR-AJAR WARNING LIGHT.)
14		Smart brake support/smart city brake support (SBS/SCBS) OFF indicator light	—	—	With smart city brake support (SCBS) or smart brake support (SBS)	×	(See SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) OFF INDICATOR LIGHT.)
15		Lane-keep assist system OFF indicator light/LDWS OFF indicator light	—	—	With lane departure warning system (LDWS) or lane-keep assist system	—	(See LANE-KEEP ASSIST SYSTEM INDICATION.) (See LDWS OFF INDICATOR LIGHT.)
16		TCS OFF indicator light	—	—	—	×	(See TCS OFF SWITCH, TCS OFF INDICATOR LIGHT.)
17		Blind spot monitoring (BSM) OFF indicator light	—	—	With blind spot monitoring (BSM) system	—	(See BLIND SPOT MONITORING (BSM) OFF INDICATOR LIGHT.)
18		Electric parking brake warning light	×	×	—	—	(See ELECTRIC PARKING BRAKE INDICATOR LIGHT, ELECTRIC PARKING BRAKE WARNING LIGHT.)
19		Low fuel warning light	×	—	—	—	(See LOW FUEL WARNING LIGHT/LOW FUEL WARNING INDICATION.)
20		120 km/h warning light	—	—	With 120 km/h warning light	X	(See 120 km/h WARNING LIGHT.)
21		Lights-on indicator light	×	—	—	—	(See LIGHTS-ON INDICATOR LIGHT.)
22		HBC indicator light (green)/HBC warning light (amber)/Adaptive LED headlights indicator light (green)/adaptive LED headlights warning light (amber)	×	×	With high beam control (HBC) system or adaptive LED headlights	×	(See HBC INDICATOR LIGHT (GREEN)/HBC WARNING LIGHT (AMBER).) (See ADAPTIVE LED HEADLIGHTS INDICATOR LIGHT (GREEN)/ADAPTIVE LED HEADLIGHTS WARNING LIGHT (AMBER).)
23		Rear fog light indicator light	—	—	With rear fog light	—	(See REAR FOG LIGHT INDICATOR LIGHT.)
24		Front fog light indicator light	—	—	With front fog light	—	(See FRONT FOG LIGHT INDICATOR LIGHT.)
25		Headlight high-beam indicator light	—	—	—	—	(See HEADLIGHT HIGH-BEAM INDICATOR LIGHT.)
26		Mazda radar cruise control with stop & go function (MRCC with stop & GO function) indicator light	×	—	—	×	(See MAZDA RADAR CRUISE CONTROL WITH STOP & GO FUNCTION (MRCC WITH STOP & GO FUNCTION) INDICATOR LIGHT.)
27		TCS/DSC indicator light	—	×	—	×	(See TCS/DSC INDICATOR LIGHT.)
28		Tire pressure monitoring system warning light	×	×	—	×	(See TIRE PRESSURE MONITORING SYSTEM WARNING LIGHT.)
29		LED headlight warning light	—	×	With headlight (LED type)	—	(See LED HEADLIGHT WARNING LIGHT.)
30		Glow indicator light	—	—	SKYACTIV-D 2.2	—	(See GLOW INDICATOR LIGHT [SKYACTIV-D 2.2].)
31		Check engine light	—	×	—	×	(See CHECK ENGINE LIGHT [PCM (SKYACTIV-D 2.2)].) (See CHARGING SYSTEM WARNING INDICATION/CHARGING SYSTEM WARNING LIGHT [SKYACTIV-G 2.5T].) (See CHECK ENGINE LIGHT [PCM (WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].) (See CHECK ENGINE LIGHT [PCM (WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].)

Type B

ac5wzn00005201

No.	Warning light/Indicator light	Name	Message is displayed in multi-information display when warning/indicator light turns on/flashes	Message is displayed in center display when warning/indicator light turns on/flashes	Comment	Warning/indicator light turned on when ignition is switched ON (engine off or on)	Reference
1		ABS warning light	—	×	—	×	(See BRAKE SYSTEM/ABS WARNING LIGHT.)
2		Electric parking brake warning light	×	×	—	—	(See ELECTRIC PARKING BRAKE INDICATOR LIGHT, ELECTRIC PARKING BRAKE WARNING LIGHT.)
3		Check engine light	—	×	—	×	(See CHECK ENGINE LIGHT [PCM (WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].) (See CHECK ENGINE LIGHT [PCM (WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].) (See CHECK ENGINE LIGHT [PCM (SKYACTIV-D 2.2)].)
4		Engine oil level warning light	×	×	With engine oil level sensor	—	(See ENGINE OIL LEVEL WARNING INDICATION/ENGINE OIL LEVEL WARNING LIGHT [SKYACTIV-G 2.5T].) (See ENGINE OIL LEVEL WARNING INDICATION/ENGINE OIL LEVEL WARNING LIGHT [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See ENGINE OIL LEVEL WARNING INDICATION/ENGINE OIL LEVEL WARNING LIGHT [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See ENGINE OIL LEVEL WARNING INDICATION/ENGINE OIL LEVEL WARNING LIGHT [SKYACTIV-D 2.2].)
5		Blind spot monitoring (BSM) OFF indicator light	×	×	—	—	(See BLIND SPOT MONITORING (BSM) OFF INDICATOR LIGHT.)
6		Smart brake support/smart city brake support (SBS/SCBS) OFF indicator light	—	—	With SBS/SCBS	×	(See SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) OFF INDICATOR LIGHT.)
7		Selective catalytic reduction (SCR) system warning light	×	×	SKYACTIV-D 2.2	—	(See SCR SYSTEM WARNING INDICATION/SCR SYSTEM WARNING LIGHT [SKYACTIV-D 2.2].)
8		Direction indicator/hazard warning indicator lights	—	—	—	—	(See DIRECTION INDICATOR/HAZARD WARNING INDICATOR LIGHTS.)
9		Glow indicator light	—	—	SKYACTIV-D 2.2	×	(See GLOW INDICATOR LIGHT [SKYACTIV-D 2.2].)
10		120 km/h warning light	—	—	With 120 km/h warning light	×	(See 120 km/h WARNING LIGHT.)
11		Engine oil warning light	—	×	—	×	(See ENGINE OIL WARNING INDICATION/ENGINE OIL WARNING LIGHT [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See ENGINE OIL WARNING INDICATION/ENGINE OIL WARNING LIGHT [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See ENGINE OIL WARNING INDICATION/ENGINE OIL WARNING LIGHT [SKYACTIV-D 2.2].)
12		Headlight high-beam indicator light	—	—	—	—	(See HEADLIGHT HIGH-BEAM INDICATOR LIGHT.)
13		Air bag/front seat belt pretensioner system warning light	—	×	—	×	(See AIR BAG/SEAT BELT PRE-TENSIONER SYSTEM WARNING LIGHT [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG/SEAT BELT PRE-TENSIONER SYSTEM WARNING LIGHT [STANDARD DEPLOYMENT CONTROL SYSTEM].)
14		Security indicator light	—	—	—	×	(See SECURITY INDICATOR LIGHT.)
15		Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red)	×	×	—	×	(See HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT (RED)/HIGH ENGINE COOLANT TEMPERATURE WARNING INDICATION/LOW ENGINE COOLANT TEMPERATURE INDICATOR LIGHT (BLUE).)
16		Rear fog light indicator light	—	—	With rear fog light	—	(See REAR FOG LIGHT INDICATOR LIGHT.)
17		Front fog light indicator light	—	—	With front fog light	—	(See FRONT FOG LIGHT INDICATOR LIGHT.)
18		Electric parking brake indicator light	×	—	—	—	(See ELECTRIC PARKING BRAKE INDICATOR LIGHT, ELECTRIC PARKING BRAKE WARNING LIGHT.)
19		Brake system warning light	—	×	—	×	(See BRAKE SYSTEM/ABS WARNING LIGHT.)
20		Charging system warning light	×	×	—	×	(See CHARGING SYSTEM WARNING INDICATION/CHARGING SYSTEM WARNING LIGHT [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See CHARGING SYSTEM WARNING INDICATION/CHARGING SYSTEM WARNING LIGHT [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See CHARGING SYSTEM WARNING INDICATION/CHARGING SYSTEM WARNING LIGHT [SKYACTIV-D 2.2].)
21		Seat belt warning light	—	—	—	—	(See SEAT BELT WARNING LIGHT.)
22		Lights-on indicator light	×	—	—	—	(See LIGHTS-ON INDICATOR LIGHT.)
23		HBC indicator light (green)/HBC warning light (amber)/Adaptive LED headlights indicator light (green)/adaptive LED headlights warning light (amber)	×	×	With high beam control (HBC) system or adaptive LED headlights	×	(See HBC INDICATOR LIGHT (GREEN)/HBC WARNING LIGHT (AMBER).) (See ADAPTIVE LED HEADLIGHTS INDICATOR LIGHT (GREEN)/ADAPTIVE LED HEADLIGHTS WARNING LIGHT (AMBER).)
24		i-stop warning light (amber)/i-stop indicator light (green)	—	×	With i-stop system	×	(See i-stop INDICATOR LIGHT (GREEN) [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See i-stop INDICATOR ALARM [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See i-stop INDICATOR LIGHT (GREEN) [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See i-stop WARNING LIGHT (AMBER) [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-D 2.2].) (See i-stop WARNING LIGHT (AMBER) [SKYACTIV-D 2.2].)
25		Mazda Radar Cruise Control with stop & go function (MRCC with stop & go function) indicator light	—	—	With Mazda Radar Cruise Control with stop & go function (MRCC with stop & go function)	—	(See MAZDA RADAR CRUISE CONTROL WITH STOP & GO FUNCTION (MRCC WITH STOP & GO FUNCTION) INDICATOR LIGHT.)
		AUTOHOLD active indicator light	—	—	With AUTOHOLD	—	(See AUTOHOLD ACTIVE INDICATOR LIGHT.)
26		TCS/DSC indicator light	—	×	—	×	(See TCS/DSC INDICATOR LIGHT.)
27		Lane-keep assist system OFF indicator light/LDWS OFF indicator light	—	—	With lane departure warning system (LDWS) or lane-keep assist system	—	(See LANE-KEEP ASSIST SYSTEM INDICATION.) (See LDWS OFF INDICATOR LIGHT.)
28		TCS OFF indicator light	—	—	—	×	(See TCS OFF SWITCH, TCS OFF INDICATOR LIGHT.)
29		LED headlight warning light	—	×	—	—	(See LED HEADLIGHT WARNING LIGHT.)
30		Tire pressure monitoring system warning light	×	×	With TPMS	×	(See TIRE PRESSURE MONITORING SYSTEM WARNING LIGHT.)

Type C

ac5wzn00005202

No.	Warning light/Indicator light	Name	Message is displayed in center display when warning/indicator light turns on/flashes	Comment	Warning/indicator light turned on when ignition is switched ON (engine off or on)	Reference
1		Automatic transaxle warning light	×	—	×	(See AUTOMATIC TRANSAXLE WARNING LIGHT [FW6A-EL, FW6AX-EL].) (See AUTOMATIC TRANSAXLE WARNING LIGHT [GW6A-EL, GW6AX-EL].)
2		Diesel particulate filter indicator light	—	SKYACTIV-D 2.2	×	(See DIESEL PARTICULATE FILTER INDICATION/DIESEL PARTICULATE FILTER INDICATOR LIGHT [SKYACTIV-D 2.2].)
3		4WD warning light	×	4WD	×	(See 4WD WARNING LIGHT.)
4		ABS warning light	×	—	×	(See BRAKE SYSTEM/ABS WARNING LIGHT.)
5		Glow indicator light	—	SKYACTIV-D 2.2	×	(See GLOW INDICATOR LIGHT [SKYACTIV-D 2.2].)
6		Blind spot monitoring (BSM) OFF indicator light	×	With BSM	×	(See BLIND SPOT MONITORING (BSM) OFF INDICATOR LIGHT.)
7		Smart city brake support (SCBS) OFF indicator light	—	With SCBS	×	(See SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) OFF INDICATOR LIGHT.)
8		Mazda Radar Cruise Control with stop & go function (MRCC with stop & go function) indicator light	—	With Mazda Radar Cruise Control with stop & go function (MRCC with stop & go function)	—	(See MAZDA RADAR CRUISE CONTROL WITH STOP & GO FUNCTION (MRCC WITH STOP & GO FUNCTION) INDICATOR LIGHT.)
		AUTOHOLD active indicator light	—	With AUTOHOLD	—	(See AUTOHOLD ACTIVE INDICATOR LIGHT.)
9		Direction indicator/hazard warning indicator lights	—	—	—	(See DIRECTION INDICATOR/HAZARD WARNING INDICATOR LIGHTS.)
10		LED headlight warning light	×	•  European (L.H.D. U.K.) specs. VIN serial No. 810001- •  Except european (L.H.D. U.K.) specs. VIN serial No. 300001-	—	(See LED HEADLIGHT WARNING LIGHT.)
11		Engine oil warning light	×	—	×	(See ENGINE OIL WARNING INDICATION/ENGINE OIL WARNING LIGHT [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See ENGINE OIL WARNING INDICATION/ENGINE OIL WARNING LIGHT [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See ENGINE OIL WARNING INDICATION/ENGINE OIL WARNING LIGHT [SKYACTIV-D 2.2].)
12		KEY warning light (red)/KEY indicator light (green)	×	—	×	(See KEY WARNING LIGHT (RED)/KEY INDICATOR LIGHT (GREEN)/KEY INDICATION.)
13		Security indicator light	—	—	×	(See SECURITY INDICATOR LIGHT.)
14		Seat belt warning light	—	—	—	(See SEAT BELT WARNING LIGHT.)
15		Charging system warning light	×	—	×	(See CHARGING SYSTEM WARNING INDICATION/CHARGING SYSTEM WARNING LIGHT [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See CHARGING SYSTEM WARNING INDICATION/CHARGING SYSTEM WARNING LIGHT [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See CHARGING SYSTEM WARNING INDICATION/CHARGING SYSTEM WARNING LIGHT [SKYACTIV-D 2.2].)
16		Low washer fluid level warning light	×	With washer fluid-level sensor	—	(See WASHER FLUID LEVEL WARNING SYSTEM.)
17		Door-ajar warning light	—	—	—	(See DOOR-AJAR WARNING LIGHT.)
18		Smart city brake support (SCBS) indicator light (red)/warning light (amber)	×	With SCBS	×	(See SMART CITY BRAKE SUPPORT (SCBS) INDICATOR LIGHT.) (See SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) WARNING LIGHT.)
19		Master warning light	×	—	×	(See MASTER WARNING LIGHT/MASTER WARNING INDICATION.)
20		Wrench indicator light	×	—	×	(See WRENCH INDICATION/WRENCH INDICATOR LIGHT [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See WRENCH INDICATION/WRENCH INDICATOR LIGHT [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See WRENCH INDICATION/WRENCH INDICATOR LIGHT [SKYACTIV-D 2.2].)
21		Low fuel warning light	×	—	—	(See LOW FUEL WARNING LIGHT/LOW FUEL WARNING INDICATION.)
22		Rear fog light indicator light	—	With rear fog light	—	(See REAR FOG LIGHT INDICATOR LIGHT.)
23		Front fog light indicator light	—	With front fog light	—	(See FRONT FOG LIGHT INDICATOR LIGHT.)
24		Brake pedal operation demand indicator light	—	—	—	(See BRAKE PEDAL OPERATION DEMAND INDICATOR LIGHT (GREEN).)
25		Headlight high-beam indicator light	—	—	—	(See HEADLIGHT HIGH-BEAM INDICATOR LIGHT.)
26		120 km/h warning light	—	With 120 km/h warning light	×	(See 120 km/h WARNING LIGHT.)
27		Brake system warning light	×	—	×	(See BRAKE SYSTEM/ABS WARNING LIGHT.)
28		Electric parking brake indicator light	—	—	—	(See ELECTRIC PARKING BRAKE INDICATOR LIGHT, ELECTRIC PARKING BRAKE WARNING LIGHT.)
29		Air bag/front seat belt pretensioner system warning light	×	—	×	(See AIR BAG/SEAT BELT PRE-TENSIONER SYSTEM WARNING LIGHT [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG/SEAT BELT PRE-TENSIONER SYSTEM WARNING LIGHT [STANDARD DEPLOYMENT CONTROL SYSTEM].)
30		Electric parking brake warning light	×	—	—	(See ELECTRIC PARKING BRAKE INDICATOR LIGHT, ELECTRIC PARKING BRAKE WARNING LIGHT.)
31		Engine oil level warning light	×	With engine oil level sensor	—	(See ENGINE OIL LEVEL WARNING INDICATION/ENGINE OIL LEVEL WARNING LIGHT [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See ENGINE OIL LEVEL WARNING INDICATION/ENGINE OIL LEVEL WARNING LIGHT [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
32		Lights-on indicator light	—	—	—	(See LIGHTS-ON INDICATOR LIGHT.)
33		i-stop warning light (amber)/i-stop indicator light (green)	×	With i-stop system	×	(See i-stop INDICATOR LIGHT (GREEN) [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See i-stop INDICATOR ALARM [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See i-stop INDICATOR LIGHT (GREEN) [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See i-stop WARNING LIGHT (AMBER) [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-D 2.2].) (See i-stop WARNING LIGHT (AMBER) [SKYACTIV-D 2.2].)
34		TCS OFF indicator light	—	—	×	(See TCS OFF SWITCH, TCS OFF INDICATOR LIGHT.)
35		Tire pressure monitoring system warning light	×	With TPMS •  European (L.H.D. U.K.) specs. VIN serial No. 600001-810000 •  European (L.H.D. U.K.) specs. VIN serial No. 810001-ZZZZZZ •  Except european (L.H.D. U.K.) specs. VIN serial No. 300001-ZZZZZZ	×	(See TIRE PRESSURE MONITORING SYSTEM WARNING LIGHT.)
		LED headlight warning light	×	•  European (L.H.D. U.K.) specs. VIN serial No. 600001-810000 •  Except european (L.H.D. U.K.) specs. VIN serial No. 100001-300000	—	(See LED HEADLIGHT WARNING LIGHT.)
36		Tire pressure monitoring system warning light	×	•  European (L.H.D. U.K.) specs. VIN serial No. 600001-810000 •  Except european (L.H.D. U.K.) specs. VIN serial No. 100001-300000	×	(See TIRE PRESSURE MONITORING SYSTEM WARNING LIGHT.)
37		Power steering malfunction indicator light	×	—	×	(See POWER STEERING MALFUNCTION INDICATOR LIGHT.)
38		TCS/DSC indicator light	×	—	×	(See TCS/DSC INDICATOR LIGHT.)
39		Check engine light	×	—	×	(See CHECK ENGINE LIGHT [PCM (WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].) (See CHECK ENGINE LIGHT [PCM (WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5))].) (See CHECK ENGINE LIGHT [PCM (SKYACTIV-D 2.2)].)

Buzzer operation function

•  The instrument cluster activates the alarm using the buzzer built into the instrument cluster to notify the driver of the vehicle conditions.

•  The alarm types are as follows: For details on each alarm, refer to each reference.

Name	Reference
Lights-on reminder warning alarm	(See LIGHTS-ON REMINDER WARNING ALARM.)
Seat belt warning alarm	(See SEAT BELT WARNING ALARM.)
Tire pressure monitoring system warning alarm (With TPMS)	(See TIRE PRESSURE MONITORING SYSTEM WARNING ALARM.)
Keyless warning alarm	(See KEYLESS WARNING ALARM.)
Air bag system warning alarm	(See AIR BAG SYSTEM WARNING ALARM [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM WARNING ALARM [STANDARD DEPLOYMENT CONTROL SYSTEM].)
Blind spot monitoring (BSM) warning buzzer (With blind spot monitoring (BSM) system)	(See BLIND SPOT MONITORING (BSM) WARNING BUZZER.)
Lane departure warning sound (With lane departure warning system (LDWS))	(See LANE DEPARTURE WARNING SOUND.)
Smart city brake support (SCBS) warning alarm (With SCBS)	(See SMART CITY BRAKE SUPPORT [FORWARD] (SCBS F).) (See SMART CITY BRAKE SUPPORT [REVERSE] (SCBS R).)
Blind spot monitoring (BSM) warning buzzer (With BSM system)	(See BLIND SPOT MONITORING (BSM) WARNING BUZZER.)
Electric parking brake chime	(See ELECTRIC PARKING BRAKE CHIME.)
Mazda Radar Cruise Control (MRCC) system warning alarm (With MRCC)	(See MAZDA RADAR CRUISE CONTROL (MRCC) SYSTEM WARNING ALARM.)
Turn and hazard indicator alarm	(See TURN AND HAZARD INDICATOR ALARM.)
Panel light control indicator alarm	(See PANEL LIGHT CONTROL INDICATOR ALARM.)
120 km/h warning alarm (With 120 km/h warning alarm)	(See 120 km/h WARNING ALARM.)
i-stop warning alarm (With i-stop system)	(See i-stop WARNING ALARM [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See i-stop WARNING ALARM [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See i-stop WARNING ALARM [SKYACTIV-D 2.2].)
Ambient temperature warning alarm (With ambient temperature warning alarm)	(See AMBIENT TEMPERATURE WARNING ALARM.)
Vehicle speed alarm (With vehicle speed alarm)	(See TRIP COMPUTER INFORMATION SYSTEM.)
Driver attention alert (With driver attention alert system)	(See DRIVER ATTENTION ALERT SYSTEM.)

•  If several alarm request signals are received simultaneously, the alarms sound according to the order of precedence in the following table.

With ignition switched off

With ignition switched ON (engine off or on)

Panel Light Control Function

•  The instrument cluster changes the brightness of the panel light based on the panel light control switch rotation signal and TNS (parking lights) signal sent via CAN communication from the front body control module (FBCM). For details on the panel light, refer to [PANEL LIGHT]. (See PANEL LIGHT.)

Vehicle Specification Information Transmission Function

•  The instrument cluster sends vehicle specification information stored during configuration to the following modules via CAN communication.

―  PCM

―  TCM

―  Auto leveling control module

―  4WD control module (4WD)

―  Laser sensor (With smart city brake support (SCBS))

―  Radar unit (With smart brake support (SBS))

―  Forward sensing camera (FSC) (With lane departure warning system (LDWS))

―  DSC HU/CM

―  Electric power steering (EPS) control module

―  Front body control module (FBCM)

―  Rear body control module (RBCM)

―  Rear mount camera (With rear mount camera)

―  Start stop unit

―  SAS control module

―  Connectivity master unit (CMU)

―  Audio amplifier (With Bose^®)

―  Tuner and amplifier unit (TAU) (Without Bose^®)

―  Electric parking brake control module

―  Front climate control unit

―  Blind spot monitoring (BSM) control module (LH) (With blind spot monitoring (BSM) system)

―  Parking assist unit (ultrasonic) (With parking sensor system)

―  Active driving display (With active driving display)

―  Position memory control module (With position memory system)

―  Power liftgate (PLG) control module (With power liftgate (PLG) system)

Battery Discharge Suppression Function

Note

•  This function is for suppressing battery discharge during vehicle manufacture and shipment. However, if the ROOM fuse is removed from a vehicle which has low total travel distance, the function may operate in the market.

•  The battery discharge suppression is a function in which the instrument cluster sends a battery discharge suppression signal to the start stop unit and the start stop unit suppresses the battery discharge.

•  The battery discharge suppression function operates when the total traveled distance is the threshold or less and the ROOM fuse has been removed.

•  The start stop unit switches the ignition off if 25 min have elapsed with the ignition switch in the ACC or ON position (engine off) to control the electric load.

•  When the battery discharge suppression function is operated, the instrument cluster displays [F0-002], [F0-HHH] or [F0-LLL] in the odometer/tripmeter screen of the instrument cluster to indicate that the battery discharge suppression function is operating.

•  The battery discharge suppression function is stopped under the following conditions.

―  ROOM fuse has been installed

―  Engine is started

―  Total traveled distance exceeds the threshold value

Structure/Construction

Structural view

Type A

am6xun00003710

Type B

ac5wzn00004341

Type C

am6zzn00004746

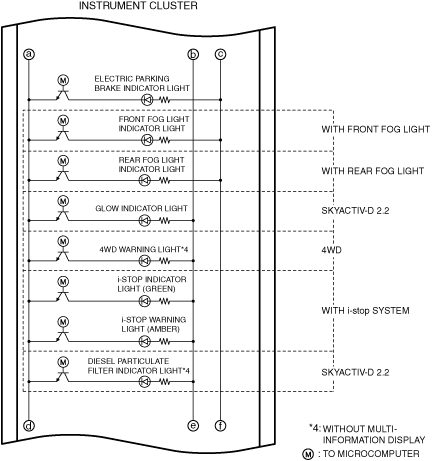

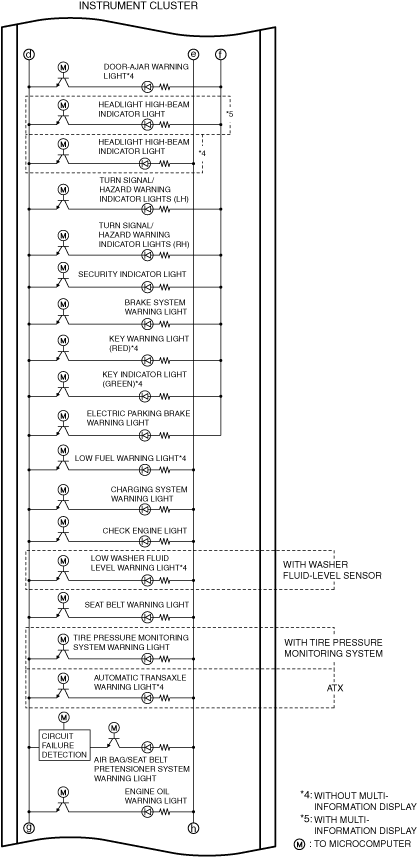

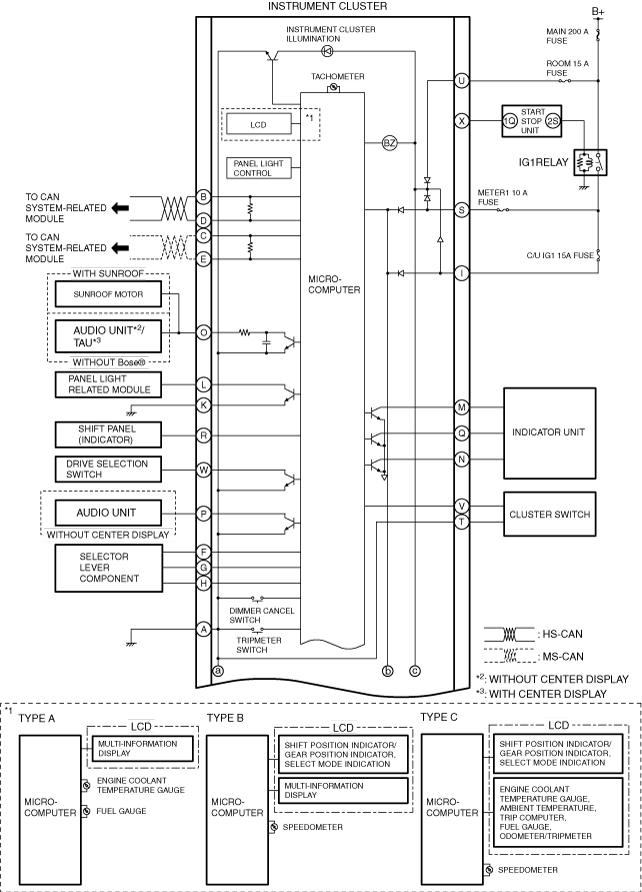

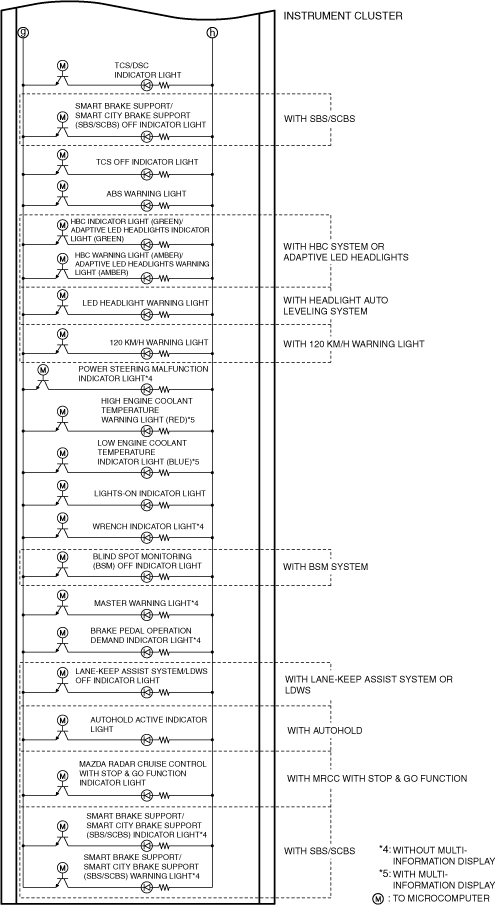

System wiring diagram

ac5wzn00005203

ac5wzn00004343

ac5wzn00004344

ac5wzn00004345

Fail-safe

Speedometer

•  If the instrument cluster cannot receive a CAN signal normally or detects a CPU malfunction inside the instrument cluster, 0 is displayed.

Tachometer

•  If the instrument cluster cannot receive a CAN signal normally or detects a CPU malfunction inside the instrument cluster, 0 is displayed.

Fuel gauge

•  Not applicable

Odometer/tripmeter

•  If the instrument cluster detects a CPU malfunction inside the instrument cluster, [——————] is displayed.

Engine coolant temperature gauge

•  If the instrument cluster cannot receive a CAN signal normally, it turns off the low engine coolant temperature indicator light (blue) and turns on the high engine coolant temperature warning light (red).

•  If the instrument cluster detects a CPU malfunction inside the instrument cluster, it turns on the high engine coolant temperature warning light (red).

Indicator light

•  If the instrument cluster cannot receive a CAN signal normally, it flashes the following indicator lights.

―  Lights-on indicator light

―  Wrench indicator light

Warning lights

•  If the instrument cluster cannot receive a CAN signal normally, it turns the following warning lights on.

―  High engine coolant temperature warning light (red)

―  HBC warning light (amber)

―  Master warning light

―  LED headlight warning light

―  Check engine light

―  Brake system warning light

―  Engine oil warning light

―  KEY warning light (red)

―  ABS warning light

―  Power steering malfunction warning light

―  Charging system warning light

―  Tire pressure monitoring system warning light

―  Low washer fluid level warning light

―  Electric parking brake warning light

―  4WD warning light

―  Low fuel warning light

―  120 km/h warning light

―  Smart city brake support (SCBS) warning light (amber)

Alarm

•  If the instrument cluster cannot receive a CAN signal normally, it stops the alarm.

Panel light

•  If the instrument cluster cannot receive a CAN signal normally, it stops sending the dimmer cancel signal.

Trip computer

•  If the instrument cluster cannot receive a CAN signal normally or detects a configuration malfunction, [———] is displayed.

Ambient temperature display

•  If the CAN signal cannot be received normally, the instrument cluster displays [———°C] or [———°F].

•  If the instrument cluster detects a CPU malfunction inside the instrument cluster, [———] is displayed.
