CABIN TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER]
id0740a1807700
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (2) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (3) Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
-
- (4) Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
-
- (5) Fuel filer lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
-
- (6) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
-
3. Remove the cabin temperature sensor. (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
4. Measure the temperature around the cabin temperature sensor and measure the resistance between cabin temperature sensor terminals A and B.
-

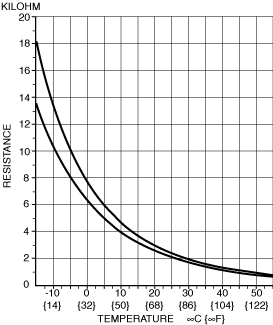

• If the characteristics of the cabin temperature sensor are not as shown in the graph, replace the cabin temperature sensor.
