REAR FINISHER REMOVAL/INSTALLATION

id091600446100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)

(4)  Power liftgate (PLG) rear switch (With power liftgate (PLG)) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION.)

(5)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

(6)  Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION.)

(7)  Request switch (liftgate) (See REQUEST SWITCH REMOVAL/INSTALLATION.)

(8)  Rear mount camera (With rear mount camera) (See REAR MOUNT CAMERA REMOVAL/INSTALLATION.)

3.  Affix the protective tape to the position shown in the figure.

ac5wzw00011864

4.  Remove the nuts.

ac5wzw00011026

5.  Remove the cap.

ac5wzw00011027

6.  Remove the screw.

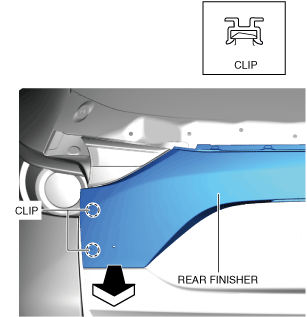

7.  Pull the rear finisher and detach the clips.

ac5wzw00011028

8.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of the arrow to remove the clips.

ac5wzw00011029

9.  Remove all the clips the same as in Step 8.

10.  Perform the same procedure from Steps 7 to 9 for the opposite side of the vehicle.

11.  Remove the clips using a tape-wrapped flathead screwdriver.

ac5wzw00011030

12.  Remove the rear finisher.

13.  Install in the reverse order of removal. (See Rear Finisher Installation Note.)

14.  Perform the 360° view monitor system aiming. (With 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

15.  Perform the rear mount camera initialization (calibration). (With projected vehicle path line display and without 360° view monitor system) (See PARKING ASSIST SYSTEM INITIALIZATION (CALIBRATION).)

Rear Finisher Installation Note

1.  When replacing the rear finisher, perform the following procedure:

(1)  Paint the rear finisher. (If rear finisher is not painted)

(2)  Remove any grease or dirt from the protector application area.

ac5wzw00013842

(3)  Apply primer to the protector application area.

Reference for primer drying time: 20 seconds or more

Caution

•  To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.

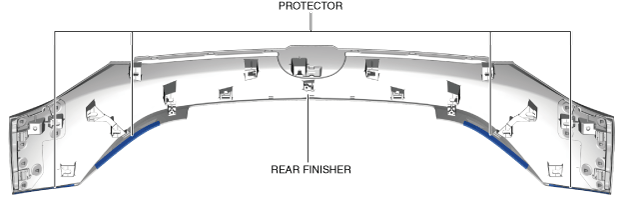

(4)  Affix the protectors.

ac5wzw00013843

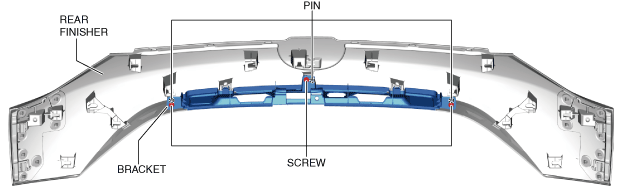

(5)  Install the pins to the bracket.

ac5wzw00013844

(6)  Install the screws and install the bracket.

(7)  Install clips A and B.

ac5wzw00011034

(8)  Install bolts A and B.
