RADIATOR GRILLE REMOVAL/INSTALLATION

id091600468000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

(2)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

(3)  Headlight cleaner hose (with headlight cleaner system) (See HEADLIGHT CLEANER HOSE REMOVAL/INSTALLATION.)

(4)  Front ultrasonic sensor short-cord (with front ultrasonic sensor) (See FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)

3.  Remove the fasteners.

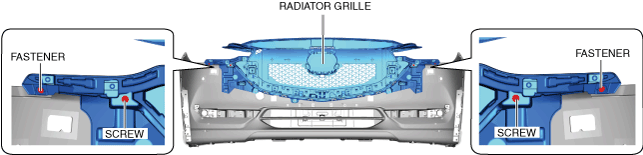

ac5wzw00011045

4.  Remove the screws.

5.  Detach the tabs of the front bumper face from the radiator grille.

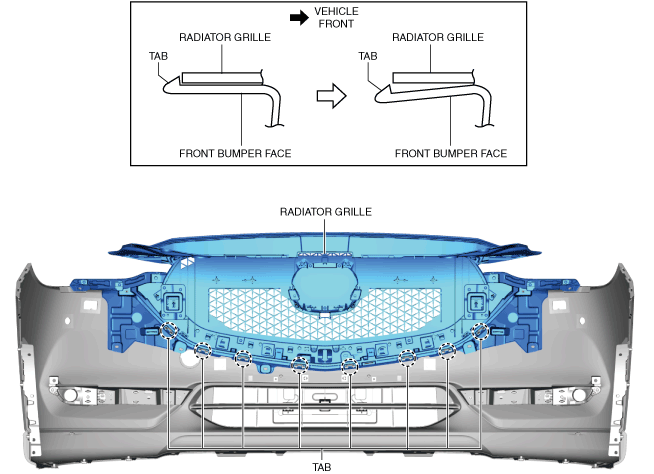

ac5wzw00011046

6.  Remove the radiator grille.

7.  Install in the reverse order of removal.

8.  Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)
