BRAKE LIGHT UNIT REMOVAL/INSTALLATION

id091800400000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

1.  Tonneau cover (with tonneau cover) (See TONNEAU COVER REMOVAL/INSTALLATION.)

2.  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

3.  Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)

4.  Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION.)

5.  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

6.  Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

7.  Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

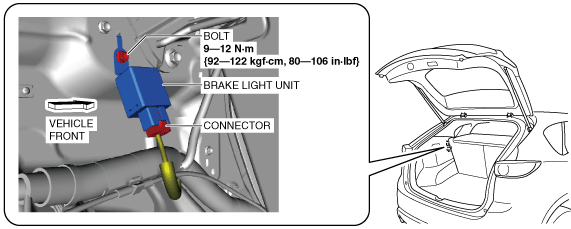

3.  Remove the bolt.

ac5uuw00005409

4.  Disconnect the connector.

5.  Pull out the hook from the body and remove the brake light unit.

ac5uuw00005410

6.  Install in the reverse order of removal.
