TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION

id092000031200

L.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(4)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

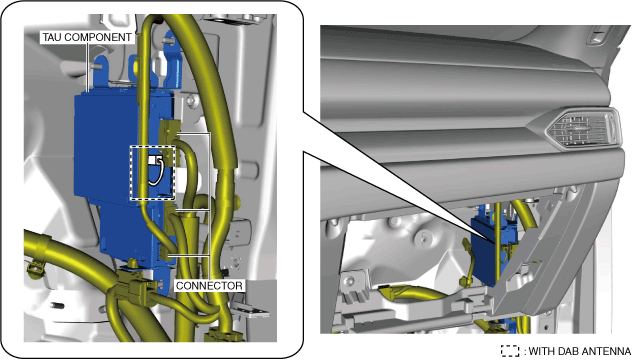

3.  Disconnect the connectors.

ac5wzw00009580

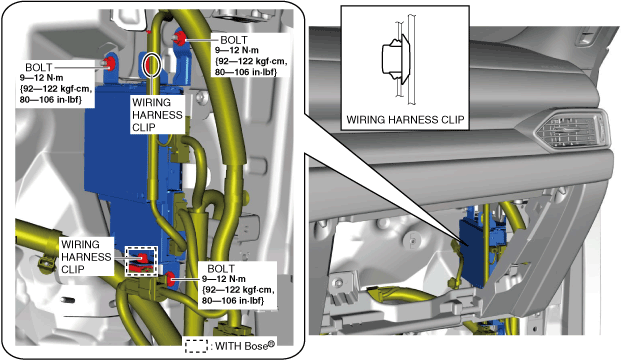

4.  Detach the wiring harness clips.

ac5uuw00006594

5.  Remove the bolts.

6.  Remove the TAU component.

7.  Remove the screws.

ac5uuw00006595

8.  Remove the brackets.

9.  Remove the TAU.

10.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(5)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(6)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

3.  Disconnect the connectors.

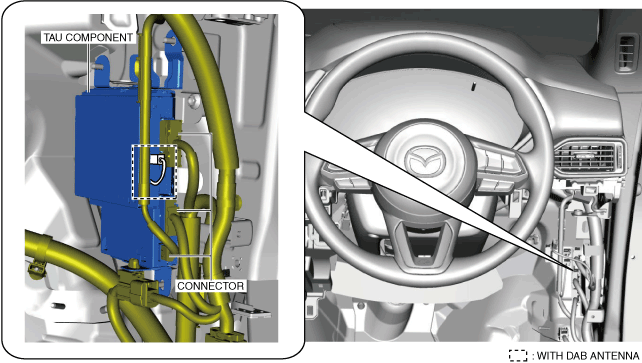

ac5wzw00009282

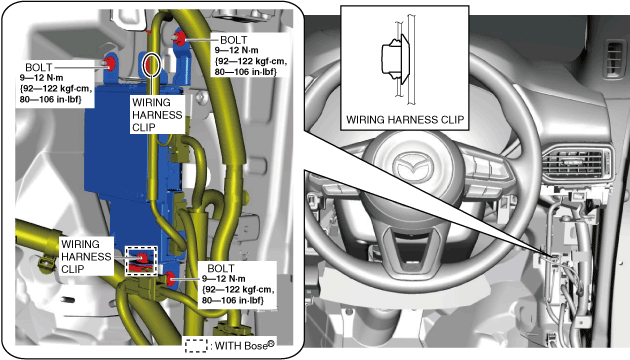

4.  Detach the wiring harness clips.

ac5wzw00009283

5.  Remove the bolts.

6.  Remove the TAU component.

7.  Remove the screws.

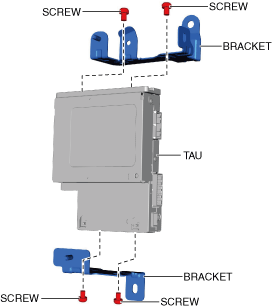

ac5wzw00009284

8.  Remove the brackets.

9.  Remove the TAU.

10.  Install in the reverse order of removal.
