BLIND SPOT MONITORING (BSM) BRACKET REMOVAL/INSTALLATION

id152000003700

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(2)  Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)

(3)  Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)

(4)  Blind spot monitoring (BSM) control module (See BLIND SPOT MONITORING (BSM) CONTROL MODULE REMOVAL/INSTALLATION.)

3.  Remove the nuts.

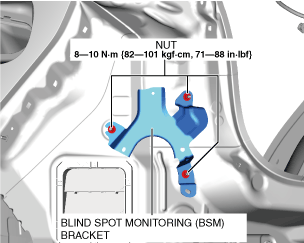

ac5wzw00013993

4.  Remove the blind spot monitoring (BSM) bracket.

5.  Install in the reverse order of removal.

Caution

•  If the blind spot monitoring (BSM) bracket is replaced, not performing the blind spot monitoring (BSM) radar test will cause a deviation in the radar emission angle which could result in the system not detecting a vehicle approaching from the rear correctly. When the blind spot monitoring (BSM) bracket is replaced, perform the blind spot monitoring (BSM) radar test.

6.  When the blind spot monitoring (BSM) bracket is replaced, perform the blind spot monitoring (BSM) radar test.(See BLIND SPOT MONITORING (BSM) RADAR TEST.)
