DTC U300E:13 [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)]

id0702k2731800

System malfunction location	•  Climate control unit power supply circuit open (IG1)
Detection condition	•  Malfunction in wiring harness between climate control unit and IG1 relay
Fail-safe function	Not applicable
Possible cause	•  C/U IG1 15 A fuse malfunction •  IG1 relay malfunction •  Climate control unit connector malfunction •  Open circuit in wiring harness between battery positive terminal and climate control unit terminal •  Climate control unit malfunction

Diagnostic procedure

STEP	INSPECTION		ACTION
1	INSPECT FUSE •  Switch the ignition off. •  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Remove the C/U IG1 15 A fuse. •  Is the fuse normal?	Yes	Install the C/U IG1 15 A fuse, then go to the next step.
		No	Replace the C/U IG1 15 A fuse, then go to Step 4.
2	INSPECT IG1 RELAY FOR MALFUNCTION •  Switch the ignition off. •  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Remove the IG1 relay. (See RELAY LOCATION.) •  Inspect the IG1 relay. (See RELAY INSPECTION.) •  Is the IG1 relay normal?	Yes	Go to the next step.
		No	Replace the IG1 relay, then go to Step 4. (See RELAY LOCATION.)
3	VERIFY CLIMATE CONTROL UNIT CONNECTOR CONDITION •  Disconnect the climate control unit connector. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) •  Inspect the connector and terminals (corrosion, damage, pin disconnection). •  Are the connector and terminals normal?	Yes	Go to the next step.
		No	Repair/replace the connector or terminal. After repair procedure, go to the next step.

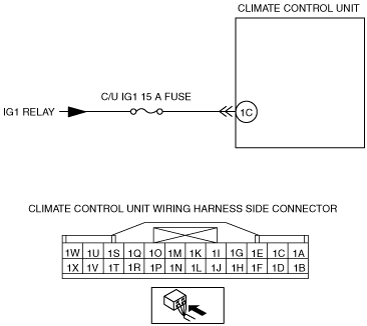

4	INSPECT CLIMATE CONTROL UNIT POWER SUPPLY CIRCUIT FOR OPEN CIRCUIT •  Inspect for continuity between climate control unit terminal 1C and C/U IG1 15 A fuse. •  Is there continuity?	Yes	Go to the next step.
		No	Repair or replace the wiring harness which has an open circuit. Go to the next step.
5	INSPECT CLIMATE CONTROL UNIT •  Reconnect the disconnected connectors. •  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) •  Clear DTCs using the M-MDS. •  Perform the climate control unit DTC inspection using the M-MDS. (See DTC DISPLAY [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].) •  Are DTCs U300E:13 displayed?	Yes	Repeat the inspection from Step 1. •  If the malfunction does not recur, go to the next step. •  If the malfunction recurs, replace the climate control unit. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) Go to the next step.
		No	Go to the next step.
6	VERIFY THAT NO OTHER DTCs ARE PRESENT •  Verify other DTCs displayed. (See DTC DISPLAY [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].) •  Are any other DTCs output?	Yes	Perform the corresponding DTC inspection. (See DTC TABLE [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].)
		No	DTC troubleshooting completed.
