DTC U200D:11 [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)]

id0702k2736600

System malfunction location

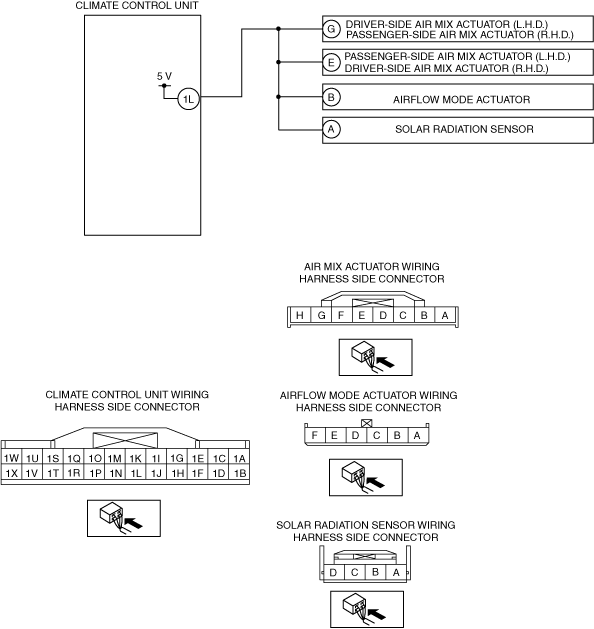

•  Climate control unit circuit voltage (+5V) circuit short to ground

Detection condition

•  Malfunction in wiring harness between climate control unit circuit voltage (+5V) and each sensor/actuator

Fail-safe

—

Possible cause

•  Connector or terminal malfunction

•  Each sensor/actuator malfunction

•  Short to ground in wiring harness between climate control unit and air mix actuator

•  Short to ground in wiring harness between climate control unit and airflow mode actuator

•  Short to ground in wiring harness between climate control unit and solar radiation sensor

System malfunction location	• Climate control unit circuit voltage (+5V) circuit short to ground
Detection condition	• Malfunction in wiring harness between climate control unit circuit voltage (+5V) and each sensor/actuator
Fail-safe	—
Possible cause	• Connector or terminal malfunction • Each sensor/actuator malfunction • Short to ground in wiring harness between climate control unit and air mix actuator • Short to ground in wiring harness between climate control unit and airflow mode actuator • Short to ground in wiring harness between climate control unit and solar radiation sensor

Diagnostic Procedure

STEP

INSPECTION

ACTION

1

VERIFY CLIMATE CONTROL UNIT CONNECTOR CONDITION

•  Switch the ignition off.

•  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

•  Disconnect the climate control unit connectors.

•  Inspect the connector and terminals (corrosion, damage, pin disconnection).

•  Are the connector and terminals normal?

Yes

Go to the next step.

No

Repair/replace the malfunctioning vehicle wiring harness, connector, or terminal.

After repair procedure, go to the next step.

2

VERIFY CONNECTOR CONDITION

•  Disconnect the following each sensor/actuator connectors.

―  Air mix actuator (See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

―  Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

―  Solar radiation sensor (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

•  Inspect the connector and terminals (corrosion, damage, pin disconnection).

•  Are the connector and terminals normal?

Yes

Go to the next step.

No

Replace the malfunctioning part.

After replace procedure, go to the next step.

3

INSPECT EACH SENSOR/ACTUATOR

•  Inspect the following each sensor/actuator connectors.

―  Air mix actuator (See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

―  Airflow mode actuator (See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

―  Solar radiation sensor (See SOLAR RADIATION SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

•  Is it normal?

Yes

Go to the next step.

No

Replace the malfunctioning sensor/actuator.

After replace procedure, go to the next step.

4

INSPECT EACH SENSOR/ACTUATOR CIRCUIT FOR SHORT TO GROUND

•  Inspect for continuity between the following terminal (wiring harness-side) and body ground:

―  Climate control unit terminal 1L

•   Is there continuity?

Yes

Repair the wiring harness.

Go to the next step.

No

Go to the next step.

5

VERIFY THAT SAME DTC IS NOT OUTPUT AGAIN

•  Reconnect the disconnected connectors.

•  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

•  Clear the past malfunction from memory.

•  Verify DTCs.

•  Is DTC U200D:11 output?

Yes

Repeat the inspection from Step 1.

•  If the malfunction does not recur, go to the next step.

•  If the malfunction recurs, replace the climate control unit. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

Go to the next step.

No

Go to the next step.

6

VERIFY THAT NO OTHER DTCs ARE PRESENT

•  Verify other DTCs displayed.

•  Are any other DTCs output?

Yes

Perform the corresponding DTC inspection.

No

DTC troubleshooting completed.

STEP	INSPECTION		ACTION
1	VERIFY CLIMATE CONTROL UNIT CONNECTOR CONDITION • Switch the ignition off. • Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) • Disconnect the climate control unit connectors. • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Are the connector and terminals normal?	Yes	Go to the next step.
1		No	Repair/replace the malfunctioning vehicle wiring harness, connector, or terminal. After repair procedure, go to the next step.
2	VERIFY CONNECTOR CONDITION • Disconnect the following each sensor/actuator connectors. ― Air mix actuator (See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) ― Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) ― Solar radiation sensor (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Are the connector and terminals normal?	Yes	Go to the next step.
2		No	Replace the malfunctioning part. After replace procedure, go to the next step.
3	INSPECT EACH SENSOR/ACTUATOR • Inspect the following each sensor/actuator connectors. ― Air mix actuator (See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].) ― Airflow mode actuator (See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].) ― Solar radiation sensor (See SOLAR RADIATION SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].) • Is it normal?	Yes	Go to the next step.
3		No	Replace the malfunctioning sensor/actuator. After replace procedure, go to the next step.
4	INSPECT EACH SENSOR/ACTUATOR CIRCUIT FOR SHORT TO GROUND • Inspect for continuity between the following terminal (wiring harness-side) and body ground: ― Climate control unit terminal 1L • Is there continuity?	Yes	Repair the wiring harness. Go to the next step.
4		No	Go to the next step.
5	VERIFY THAT SAME DTC IS NOT OUTPUT AGAIN • Reconnect the disconnected connectors. • Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) • Clear the past malfunction from memory. • Verify DTCs. • Is DTC U200D:11 output?	Yes	Repeat the inspection from Step 1. • If the malfunction does not recur, go to the next step. • If the malfunction recurs, replace the climate control unit. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) Go to the next step.
5		No	Go to the next step.
6	VERIFY THAT NO OTHER DTCs ARE PRESENT • Verify other DTCs displayed. • Are any other DTCs output?	Yes	Perform the corresponding DTC inspection.
6		No	DTC troubleshooting completed.
