PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION

id081000801900

Warning

•  Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

Note

•  When replacing the passenger-side air bag module after the deployment, replace it together with the mid-wiring harness.

•  When removing the passenger-side air bag module, perform the procedure in the posture shown in the figure.

ac5wzw00002033

1.  Switch the ignition to off.

2.  Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

3.  Remove the following parts:

(1)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(4)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(5)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(6)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(7)  Passenger-side side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(8)  Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

(9)  Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION.)

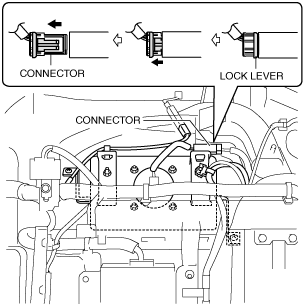

4.  Disconnect the connector.

ac5wzw00002034

5.  Remove clips A.

ac5wzw00002035

6.  Remove clip B while opening the tabs outward using snap ring pliers.

7.  Remove the nuts.

ac5wzw00002036

8.  Remove the bracket.

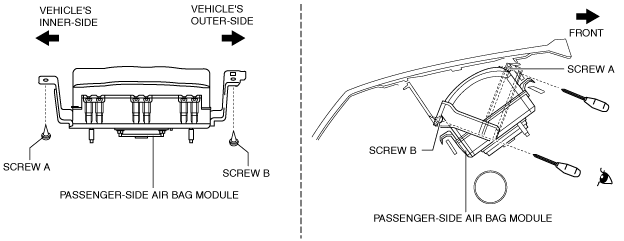

9.  Remove screws A and B while visually verifying the screw positions. (See Screw Installation Note.)

ac5wzw00002037

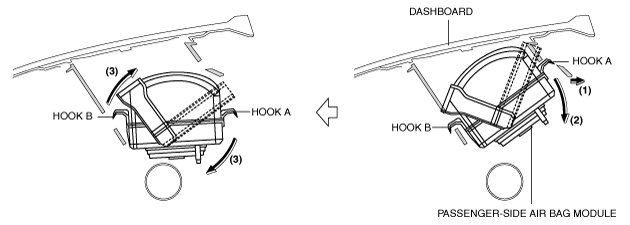

10.  Pull the passenger-side air bag module in the direction of the arrow (2) and remove hooks A from the dashboard while spreading the dashboard in the direction of the arrow (1).

ac5wzw00002038

11.  Move the passenger-side air bag module in the direction of the arrow (3) and detach hooks B from the dashboard.

12.  Set the passenger-side air bag module bracket aside from the dashboard duct (5) while sliding the passenger-side air bag module in the direction of the arrow (4).

ac5wzw00007385

13.  Remove the passenger-side air bag module.

ac5wzw00002040

14.  Install in the reverse order of removal.

15.  Switch the ignition ON (engine off or on).

16.  Verify that the air bag system warning light illuminates for approx. 6 s and goes out.

•  If the air bag system warning light does not operate, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. (See FLOWCHART [SAS CONTROL MODULE].)

Screw Installation Note

Note

•  The passenger-side air bag module fixing screws are set in the back side of the dashboard. Affix packing tape to phillips screwdriver so that the screws do not fall off while performing the work.

1.  Insert a phillips screwdriver into the screw groove and fix it with packing tape.

ac5wzw00002041

2.  Tighten the screw halfway.

3.  Remove the packing tape.

Caution

•  If the packing tape is left in the vehicle when tightening the screw, it may become a source of noise. When tightening the screw, remove the packing tape so that it does not remain in the vehicle.

4.  Tighten the screw completely.
