POWER WINDOW MAIN SWITCH INSPECTION
id091200002100
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)
2. Remove the following parts:
3. Connect the power window main switch connector.
4. Connect the negative battery cable.(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)
5. Measure the voltage at each terminal.

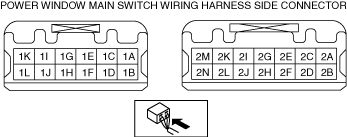

Terminal Voltage Table (Reference)
ac5wzw00004908
|
Auto-open/close Function For All Windows
|
Terminal |
Signal name |
Connected to |
Measurement condition |
Voltage (V) |
Inspection item (s) |
|---|---|---|---|---|---|
|
1A
|
Sensor power supply
|
Power window motor (driver’s side)
|
Switch the ignition ON (engine on or off)
|
B+
|
• Power window motor (driver’s side)
• Related wiring harness
|
|
Switch the ignition ACC or OFF
|
1.0 or less
|
||||
|
1B
|
Power supply
|
P.WINDOW3 30A fuse
|
Under any condition
|
B+
|
• P.WINDOW3 30A fuse
• Related wiring harness
|
|
1C
|
-
|
-
|
-
|
-
|
-
|
|
1D
|
Driver’s side window open signal
|
Power window motor (driver’s side)
|
Door glass (driver’s side) opening
|
B+
|
• Power window motor (driver’s side)
• Related wiring harness
|
|
while door glass (driver-side) is opening for approx. 40 s after ignition is switched OFF (LOCK) from ON
|
B+
|
||||
|
Other
|
1.0 or less
|
||||
|
1E
|
Door open/close signal
|
Rear body control module (RBCM)
|
Terminal used for communication therefore determination based on terminal voltage is not possible.
|
||
|
1F
|
Driver’s side window close signal
|
Power window motor (driver’s side)
|
Door glass (driver’s side) closing
|
B+
|
• Power window motor (driver’s side)
• Related wiring harness
|
|
while door glass (driver-side) is closing for approx. 40 s after ignition is switched OFF (LOCK) from ON
|
B+
|
||||
|
Other
|
1.0 or less
|
||||
|
1G
|
IG1
|
C/U IG1 15A fuse
|
Switch the ignition ON (engine on or off)
|
B+
|
• C/U IG1 15A fuse
• Related wiring harness
|
|
Switch the ignition OFF (LOCK)
|
1.0 or less
|
||||
|
1H
|
-
|
-
|
-
|
-
|
-
|
|
1I
|
Sensor ground
|
Power window motor (driver’s side)
|
Under any condition
|
1.0 or less
|
• Power window motor (driver’s side)
• Related wiring harness
|
|
1J
|
-
|
-
|
-
|
-
|
-
|
|
1K
|
GND
|
Body ground
|
Under any condition
|
1.0 or less
|
• Related wiring harness
|
|
1L
|
Serial communication
|
Power window subswitch
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible
|
• Power window subswitch
• Related wiring harness
|
|
|
2A
|
ACC
|
MIRROR 7.5 A fuse
|
Switch the ignition to OFF
|
1.0 or less
|
• MIRROR 7.5 A fuse
• Related wiring harness
|
|
Other
|
B+
|
||||
|
2B
|
Power outer mirror control signal
|
Power outer mirror
|
Inspect the power outer mirror switch.
|
||
|
2C
|
Power outer mirror control signal
|
Power outer mirror
|
Inspect the power outer mirror switch.
|
||
|
2D
|
Pulse 1
|
Power window motor (driver’s side)
|
Door glass (driver’s side) operating
|
Wave pattern (See Inspection Using an Oscilloscope (Reference).)
|
• Related wiring harness
• Power window motor (driver’s side)
|
|
2E
|
Power outer mirror control signal
|
Power outer mirror
|
Inspect the power outer mirror switch.
|
||
|
2F
|
Pulse 2
|
Power window motor (driver’s side)
|
Door glass (driver’s side) operating
|
Wave pattern (See Inspection Using an Oscilloscope (Reference).)
|
• Power window motor (driver’s side)
• Related wiring harness
|
|
2G
|
Power outer mirror control signal
|
Power outer mirror
|
Inspect the power outer mirror switch.
|
||
|
2H
|
Power outer mirror control signal
|
Power outer mirror
|
Inspect the power outer mirror switch.
|
||
|
2I
|
Power outer mirror control signal
|
Power outer mirror
|
Inspect the power outer mirror switch.
|
||
|
2J
|
Power outer mirror control signal
|
Power outer mirror
|
Inspect the power outer mirror switch.
|
||
|
2K
|
-
|
-
|
-
|
-
|
-
|
|
2L
|
-
|
-
|
-
|
-
|
-
|
|
2M
|
-
|
-
|
-
|
-
|
-
|
|
2N
|
GND
|
Body ground
|
Under any condition
|
1.0 or less
|
• Related wiring harness
|
Auto-open/close Function for Driver-side (L.H.D.)
|
Terminal |
Signal name |
Connected to |
Measurement condition |
Voltage (V) |
Inspection item (s) |
|---|---|---|---|---|---|
|
1A
|
Rear right side window open signal
|
Power window motor (rear right side)
|
Door glass (rear right side) opening
|
B+
|
• Power window motor (rear right side)
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
1B
|
Passenger’s side window open signal
|
Power window motor (passenger’s side)
|
Door glass (passenger’s side) opening
|
B+
|
• Power window motor (passenger’s side)
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
1C
|
Rear right side window close signal
|
Power window motor (rear right side)
|
Door glass (rear right side) closing
|
B+
|
• Power window motor (rear right side)
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
1D
|
Passenger’s side window close signal
|
Power window motor (passenger’s side)
|
Door glass (passenger’s side) closing
|
B+
|
• Power window motor (passenger’s side)
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
1E
|
-
|
-
|
-
|
-
|
-
|
|
1F
|
Door open/close signal
|
Rear body control module (RBCM)
|
Terminal used for communication therefore determination based on terminal voltage is not possible.
|
||
|
1G
|
Rear left side window open signal
|
Power window motor (rear left side)
|
Door glass (rear left side) opening
|
B+
|
• Power window motor (rear left side)
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
1H
|
Driver’s side window open signal
|
Power window motor (driver’s side)
|
Door glass (driver’s side) opening
|
B+
|
• Power window motor (driver’s side)
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
1I
|
Rear left side window close signal
|
Power window motor (rear left side)
|
Door glass (rear left side) closing
|
B+
|
• Power window motor (rear left side)
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
1J
|
Driver’s side window close signal
|
Power window motor (driver’s side)
|
Door glass (driver’s side) closing
|
B+
|
• Power window motor (driver’s side)
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
1K
|
IG1
|
P.WINDOW1 30 A fuse
|
Switch the ignition ON (engine on or off)
|
B+
|
• P.WINDOW3 30 A fuse
• Related wiring harness
|
|
1L
|
Power supply
|
P.WINDOW2 25 A fuse
|
Under any condition
|
VB
|
• P.WINDOW2 25 A fuse
• Related wiring harness
|
|
2A
|
GND
|
Body ground
|
Under any condition
|
1.0 or less
|
• Related wiring harness
|
|
2B
|
Sensor ground
|
Power window motor (driver’s side)
|
Under any condition
|
1.0 or less
|
• Power window motor (driver’s side)
• Related wiring harness
|
|
2C
|
Power outer mirror control signal
|
Power outer mirror
|
Inspect the power outer mirror switch.
|
||
|
2D
|
Pulse 1
|
Power window motor (driver’s side)
|
Door glass (driver’s side) operating
|
Wave pattern (See Inspection Using an Oscilloscope (Reference).)
|
• Related wiring harness
• Power window motor (driver’s side)
|
|
2E
|
Power outer mirror control signal
|
Power outer mirror
|
Inspect the power outer mirror switch.
|
||
|
2F
|
Pulse 2
|
Power window motor (driver’s side)
|
Door glass (driver’s side) opening
|
Wave pattern (See Inspection Using an Oscilloscope (Reference).)
|
• Power window motor (driver’s side)
• Related wiring harness
|
|
2G
|
GND
|
Body ground
|
Under any condition
|
1.0 or less
|
• Related wiring harness
|
|
2H
|
Power outer mirror control signal
|
Power outer mirror
|
Inspect the power outer mirror switch.
|
||
|
2I
|
Power outer mirror control signal
|
Power outer mirror
|
Inspect the power outer mirror switch.
|
||
|
2J
|
Power outer mirror control signal
|
Power outer mirror
|
Inspect the power outer mirror switch.
|
||
|
2K
|
Power outer mirror control signal
|
Power outer mirror
|
Inspect the power outer mirror switch.
|
||
|
2L
|
Power outer mirror control signal
|
Power outer mirror
|
Inspect the power outer mirror switch.
|
||
|
2M
|
ACC
|
MIRROR 7.5 A fuse
|
Switch the ignition to OFF
|
1.0 or less
|
• MIRROR 7.5 A fuse
• Related wiring harness
|
|
Other
|
B+
|
||||
|
2N
|
GND
|
Body ground
|
Under any condition
|
1.0 or less
|
• Related wiring harness
|
Auto-open/close Function for Driver-side (R.H.D.)
|
Terminal |
Signal name |
Connected to |
Measurement condition |
Voltage (V) |
Inspection item (s) |
|---|---|---|---|---|---|
|
1A
|
Rear right side window open signal
|
Power window motor (rear right side)
|
Door glass (rear right side) opening
|
B+
|
• Power window motor (rear right side)
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
1B
|
Door open/close signal
|
Rear body control module (RBCM)
|
Terminal used for communication therefore determination based on terminal voltage is not possible.
|
||
|
1C
|
Rear right side window close signal
|
Power window motor (rear right side)
|
Door glass (rear right side) closing
|
B+
|
• Power window motor (rear right side)
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
1D
|
Passenger’s side window open signal
|
Power window motor (passenger’s side)
|
Door glass (passenger’s side) opening
|
B+
|
• Power window motor (passenger’s side)
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
1E
|
-
|
-
|
-
|
-
|
-
|
|
1F
|
Driver’s side window open signal
|
Power window motor (driver’s side)
|
Door glass (driver’s side) opening
|
B+
|
• Power window motor (driver’s side)
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
1G
|
Rear left side window open signal
|
Power window motor (rear left side)
|
Door glass (rear left side) opening
|
B+
|
• Power window motor (rear left side)
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
1H
|
Driver’s side window close signal
|
Power window motor (driver’s side)
|
Door glass (driver’s side) closing
|
B+
|
• Power window motor (driver’s side)
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
1I
|
Rear left side window close signal
|
Power window motor (rear left side)
|
Door glass (rear left side) closing
|
B+
|
• Power window motor (rear left side)
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
1J
|
Passenger’s side window close signal
|
Power window motor (passenger’s side)
|
Door glass (passenger’s side) closing
|
B+
|
• Power window motor (passenger’s side)
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
1K
|
IG1
|
P.WINDOW1 30 A fuse
|
Switch the ignition ON (engine on or off)
|
B+
|
• P.WINDOW3 30 A fuse
• Related wiring harness
|
|
1L
|
Power supply
|
P.WINDOW2 25 A fuse
|
Under any condition
|
VB
|
• P.WINDOW2 25 A fuse
• Related wiring harness
|
|
2A
|
GND
|
Body ground
|
Under any condition
|
1.0 or less
|
• Related wiring harness
|
|
2B
|
Sensor ground
|
Power window motor (driver’s side)
|
Under any condition
|
1.0 or less
|
• Power window motor (driver’s side)
• Related wiring harness
|
|
2C
|
Power outer mirror control signal
|
Power outer mirror
|
Inspect the power outer mirror switch.
|
||
|
2D
|
Pulse 1
|
Power window motor (driver’s side)
|
Door glass (driver’s side) operating
|
Wave pattern (See Inspection Using an Oscilloscope (Reference).)
|
• Related wiring harness
• Power window motor (driver’s side)
|
|
2E
|
Power outer mirror control signal
|
Power outer mirror
|
Inspect the power outer mirror switch.
|
||
|
2F
|
Pulse 2
|
Power window motor (driver’s side)
|
Door glass (driver’s side) opening
|
Wave pattern (See Inspection Using an Oscilloscope (Reference).)
|
• Power window motor (driver’s side)
• Related wiring harness
|
|
2G
|
GND
|
Body ground
|
Under any condition
|
1.0 or less
|
• Related wiring harness
|
|
2H
|
Power outer mirror control signal
|
Power outer mirror
|
Inspect the power outer mirror switch.
|
||
|
2I
|
Power outer mirror control signal
|
Power outer mirror
|
Inspect the power outer mirror switch.
|
||
|
2J
|
Power outer mirror control signal
|
Power outer mirror
|
Inspect the power outer mirror switch.
|
||
|
2K
|
Power outer mirror control signal
|
Power outer mirror
|
Inspect the power outer mirror switch.
|
||
|
2L
|
Power outer mirror control signal
|
Power outer mirror
|
Inspect the power outer mirror switch.
|
||
|
2M
|
ACC
|
MIRROR 7.5 A fuse
|
Switch the ignition to OFF
|
1.0 or less
|
• MIRROR 7.5 A fuse
• Related wiring harness
|
|
Other
|
B+
|
||||
|
2N
|
GND
|
Body ground
|
Under any condition
|
1.0 or less
|
• Related wiring harness
|
Inspection Using an Oscilloscope (Reference)
ac5wzw00001663
|
