GPS ANTENNA FEEDER INSPECTION

id092000802100

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

(4)  Center speaker panel (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

(5)  GPS antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION.)

(6)  Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION.)

(7)  GPS antenna feeder (See GPS ANTENNA FEEDER REMOVAL/INSTALLATION.)

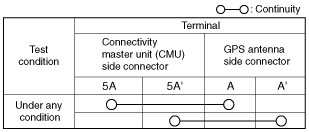

3.  Verify that the continuity is as indicated in the table.

am2zzw00011638

am2zzw00011639
