ANTENNA FEEDER NO.3 REMOVAL/INSTALLATION

id092000812900

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(3)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(4)  Front seat belt adjusting cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(5)  Front seat belt upper anchor installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(6)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(7)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
(8)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
(9)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(10)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(11)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
(12)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(13)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

3.  Remove the rear passenger's assist handle. (See ASSIST HANDLE REMOVAL/INSTALLATION.)

4.  Partially peel back the headliner.

Note
•  If the headliner is peeled back excessively, the headliner could become creased. Be careful not to peel back the headliner excessively.

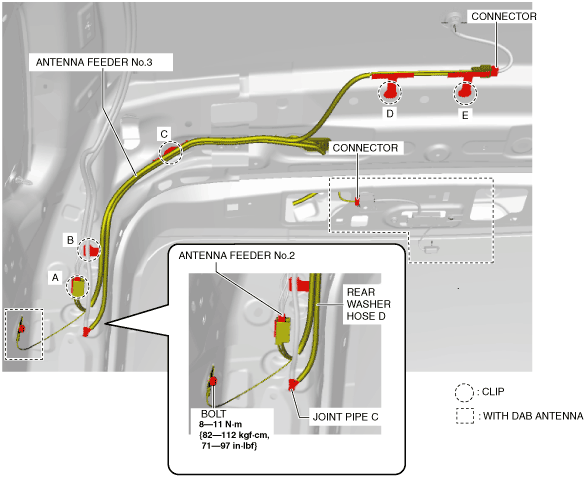

5.  Disconnect antenna feeder No.2.

ac5wzw00007711

6.  Disconnect the connectors.

7.  Remove the bolt. (with DAB antenna)

8.  Remove clips A, B, C, D, and E in the position shown in the figure.

9.  Disconnect the rear washer hose D from the joint pipe C.

10.  Partially peel the liftgate grommet in the direction of arrow shown in the figure, and remove the liftgate grommet from the inner liftgate grommet.

ac5uuw00004206

11.  Using a tape-wrapped precision flathead screwdriver, press the inner liftgate grommet tabs in the directions of arrows (1) and (2) shown in the figure and remove each inner liftgate grommet from the liftgate and vehicle side in the direction of arrow (3).

ac5uuw00004207

12.  Disconnect the rear washer hose D from the rear washer nozzle and remove it.

ac5wzw00001630

13.  Remove antenna feeder No.3.

14.  Install in the reverse order of removal.
