DAB ANTENNA AMPLIFIER INSPECTION

id092000815900

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

3.  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

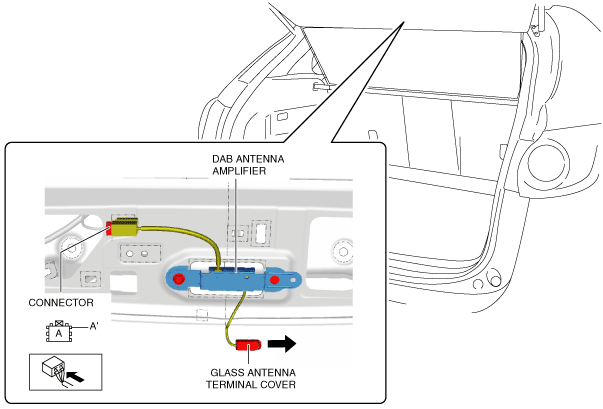

4.  Measure the voltage at DAB antenna amplifier connector terminal A.

ac5wzw00007841

If the voltage is 8 V:

•  The DAB antenna amplifier is normal.

If the voltage is other than 8 V:

•  Inspect the tuner and amp unit and the antenna feeder. (See ANTENNA FEEDER NO.1 INSPECTION.) (See ANTENNA FEEDER NO.2 INSPECTION.) (See ANTENNA FEEDER NO.3 INSPECTION.)

―  If the tuner and amp unit and the antenna feeder are normal, replace the DAB antenna amplifier. (See DAB ANTENNA AMPLIFIER REMOVAL/INSTALLATION.)
